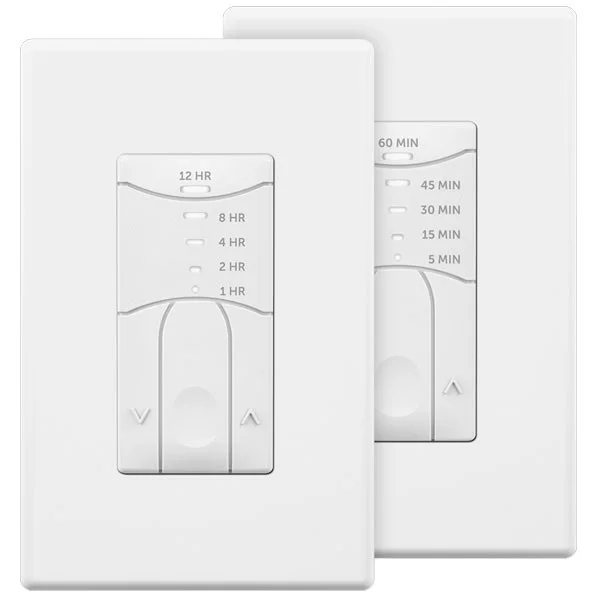

The SENSORWORX interval timer switch provides an automatic lighting control solution that is intuitive to operate. Designed with contractors in mind, the unit is significantly shallower than typical timers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For interval adjustment, raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the timer setting / time remaining. Configurable parameters include Maximum Time Setting, Blink Timeout Warning, Turn on Timer Levels, and LED Indication. This stylish unit also matches the SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
FEATURES
ELECTRICAL
Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
Electronically Timed Switching Ensures Long Relay Life
Meets NEC 404.2(c) & 404.22 Guidelines Regarding Powering Over Ground & Current Leakage
OPERATIONAL
5 LED Time Level Indicators
Configurable Parameters including Maximum Time, Turn on Timer Setting, & Blink Warnings
Blue Locator LED when Lights are Off
PHYSICAL
Enclosure is 25-40% Shallower than Other Timers (< 1” Depth into Wallbox)
Self-Grounding Mounting Strap
Modern Look and Intuitive Easy-Tap Buttons for On/Off, Increase Time, & Decrease Time
Settings are Adjustable Without Removing Cover Plate
SPECIFICATIONS
Operating Voltage: 120-277 VAC SINGLE PHASE, 50/60 Hz
Load Ratings: MAX: 800W @ 120VAC|1200W @ 277VAC, MIN: None
Load Types: LED Driver/Lamps, CFL, Electronic/Magnetic Ballasts (Fluorescent), Tungsten (Incandescent)
Operating Temp: 32°F to 122°F (0°C to 50°C)
Relative Humidity: 0-95% Non-Condensing, Indoor Use Only
Mounting: Single Gang Switch Box
