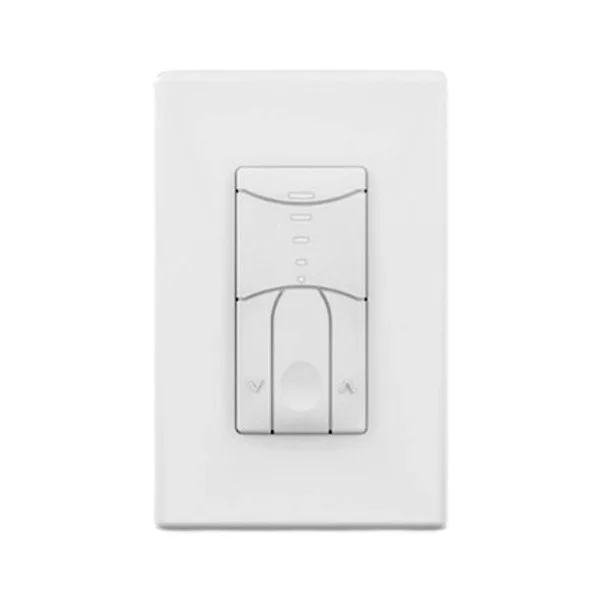

The SENSORWORX line voltage wall switch & 0-10 volt dimmer provides a stylish solution for spaces where manual dimming control is required. Designed with contractors in mind, the unit is significantly shallower than typical dimmers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For dimming adjustment, intuitive raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the current dimming level. Configurable dimming parameters include High/Low Trims, Turn on Levels, and Curve Types. This dimmer also matches the SENSORWORX family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.
FEATURES
ELECTRICAL
Accommodates Neutral (3-Wire) and No-Neutral (2-Wire) Installation
Electronically Timed Switching Ensures Long Relay Life
Works both Standalone and with 3-Way Switches
Meets NEC 404.2(c) & 404.22 Guidelines Regarding Powering Over Ground & Current Leakage
PHYSICAL
Enclosure is 25-40% Shallower than Other Dimmers (< 1” Depth into Wallbox)
Self-Grounding Mounting Strap
Modern Look and Intuitive Easy-Tap Buttons for On/Off, Raise, & Lower
Settings are Adjustable Without Removing Cover Plate
OPERATIONAL
5 LED Dimming Level Indication
Configurable Dimming Parameters including High/Low Trims, Turn on Levels, and Curve Types
Blue Locator LED when Lights are Off
SPECIFICATIONS
Operating Voltage: 120-277 VAC SINGLE PHASE, 50/60 Hz
Load Ratings: MAX: 800W @ 120VAC|1200W @ 277VAC, MIN: None
Load Types: LED Driver/Lamps CFL, Electronic/Magnetic Ballasts (Fluorescent), Tungsten (Incandescent)
Dimming Compatibility: 0-10 VDC ballasts or drivers compliant with IEC 60929 Annex E.2
Dimming Load: 50 mA maximum (sink only)
Operating Temp: 32°F to 122°F (0°C to 50°C)
Relative Humidity: 0-95% Non-Condensing, Indoor Use Only
Mounting: Single Gang Switch Box
