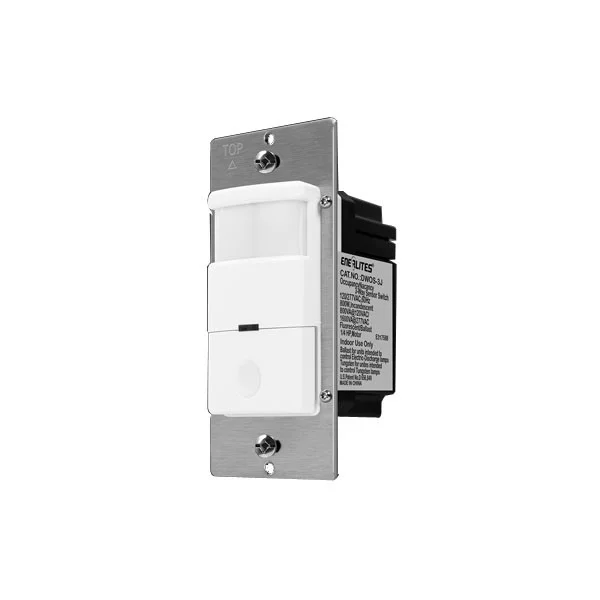

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch

180° PIR occupancy/vacancy motion sensor wall switch, secured ground wire required, single pole or 3-way, white finish, 120/277Vac, 60 Hz voltage, 15 sec to 30 mins time delay, adjustable sensitivity settings, light level is adjustable.
Minimum order qty. of 10 pcs.
DESCRIPTION
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically. This product includes adjustable Ambient Light Level.
FEATURES

Turn lights ON/OFF automatically (Occupancy Mode)
Manual ON / automatically OFF (Vacancy Mode)
Time delay is adjustable from 15 seconds (test mode) to30 minutes
Ground wire required
Single pole or three-way
Zero Crossing for long relay life
Adjustable sensitivity settings
Light level is adjustable

SPECIFICATIONS

Voltage: 120/277 VAC, 60 Hz
Incandescent: 800W
Fluorescent: 800VA/1600VA
LED: 150W
Motor: 1/4 HP
Time Delay: 15 Sec to 30 Mins
Light Level: 30 Lux – Daylight 32 F
Operating Temperature: to 131 F
