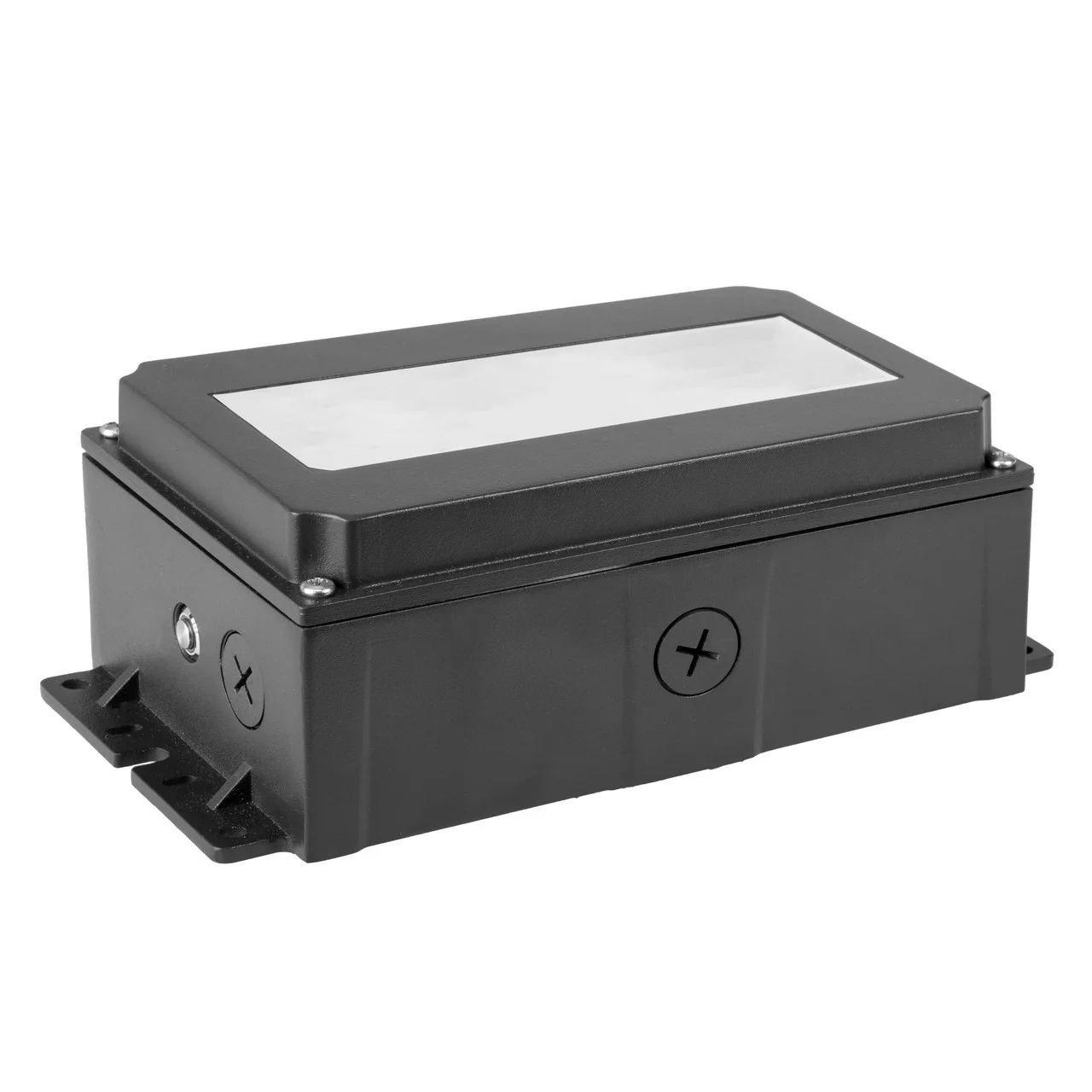

The ESL Vision ESL-EMG-BOX1-EXT-8W is a compact LED emergency driver designed to keep luminaires operating during power loss. As part of ESL Vision’s emergency backup lineup, it delivers dependable 90-minute egress illumination with constant output performance. Its external box form and flexible wiring options make it a practical solution for both new and retrofit projects.
Key Features and Benefits
- Delivers constant 8W emergency output for consistent light during outages
- Automatic monthly and annual self-test functionality helps reduce maintenance effort
- Compliant with UL 924 and CSA emergency lighting requirements for code-focused projects
- Meets CEC Title 20 and NEC emergency lighting standards for broad application acceptance
- Includes illuminated test switch/charging indicator and wall-plate test button for quick status checks
- Backed by a 5-year warranty for long-term reliability
Specifications
- Input Voltage: 100-347VAC, 50/60Hz
- AC Input Power: 10W
- Rated Input Current: 150mA max
- Emergency Output Power: 8W max
- Output Voltage: 170VDC
- Emergency Runtime: 90 minutes
- Recharge Time: 24 hours
- Charging Cycles: 1000
- Operating Temperature: 41°F to 122°F (5°C to 50°C)
- Dimensions (LxWxH): 9.22″ x 3.62″ x 3.28″
- Weight: 3.31 lbs
- Output Protections: Short-circuit and open-circuit protection
Common Uses
Ideal for commercial and industrial LED fixtures requiring emergency egress lighting, including offices, corridors, stairwells, schools, healthcare spaces, and multi-use facilities where life-safety compliance is essential.
