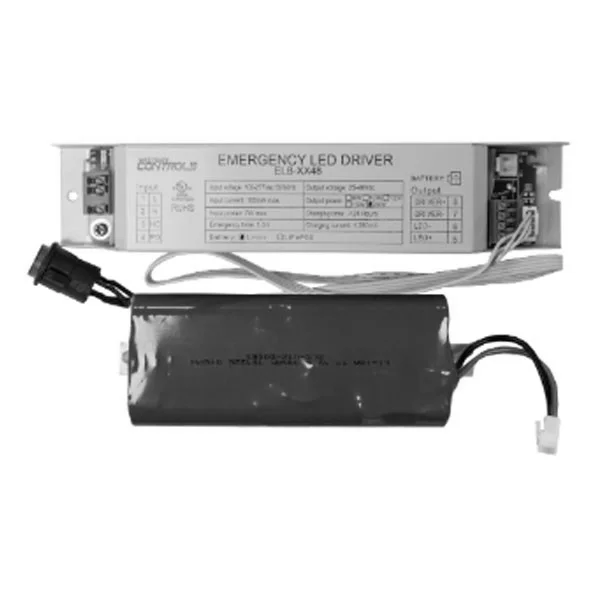

ELB-2048 Emergency LED Driver
Ensure your lighting systems are always operational during power outages with the ELB-2048 Emergency LED Driver. This efficient driver supports a universal input voltage of 100-277Vac at 50/60Hz and features a rapid 24-hour charging time. Enjoy peace of mind with a robust 5-year warranty and compliance with major safety standards.
Key Features
Complies with most safety standards for lighting
Certified with CSA C22.2 NO.141 UL924
Equipped with an external lithium battery
Comprehensive battery protections: overcharge, over-discharge, and short circuit
Indicator displaying various working modes
Supports 500 cycles of standard charge and discharge
RoHS compliant
Provides 1.5 hours of emergency lighting
Technical Specifications
Input Voltage: 100-277Vac, 50/60Hz
Maximum AC Input Current: 100mA
Output Current and Voltage: 420-800mA at 25-48Vdc
Output Power: 20W
Emergency Time: ≥ 1.5 hours
Comprehensive 5-year warranty
Illuminated Test Switch and Indicator Light
Battery: 11.1V/4000mAH Li-ion
Battery Charging Current: Maximum 250mA
Charging Time: ≥ 24 hours
Temperature Rating (Ambient): 0°C to 40°C (32°F to 104°F)
Operation Details
AC Operation: When AC power is present, the LED load operates normally, and the emergency driver charges in standby mode, indicated by a green LED light.
Emergency Operation: Upon AC power failure, the emergency driver switches to emergency mode while the green LED light turns off. Once AC power is restored, the driver returns to normal operation mode and resumes charging, indicated by the green LED light.
