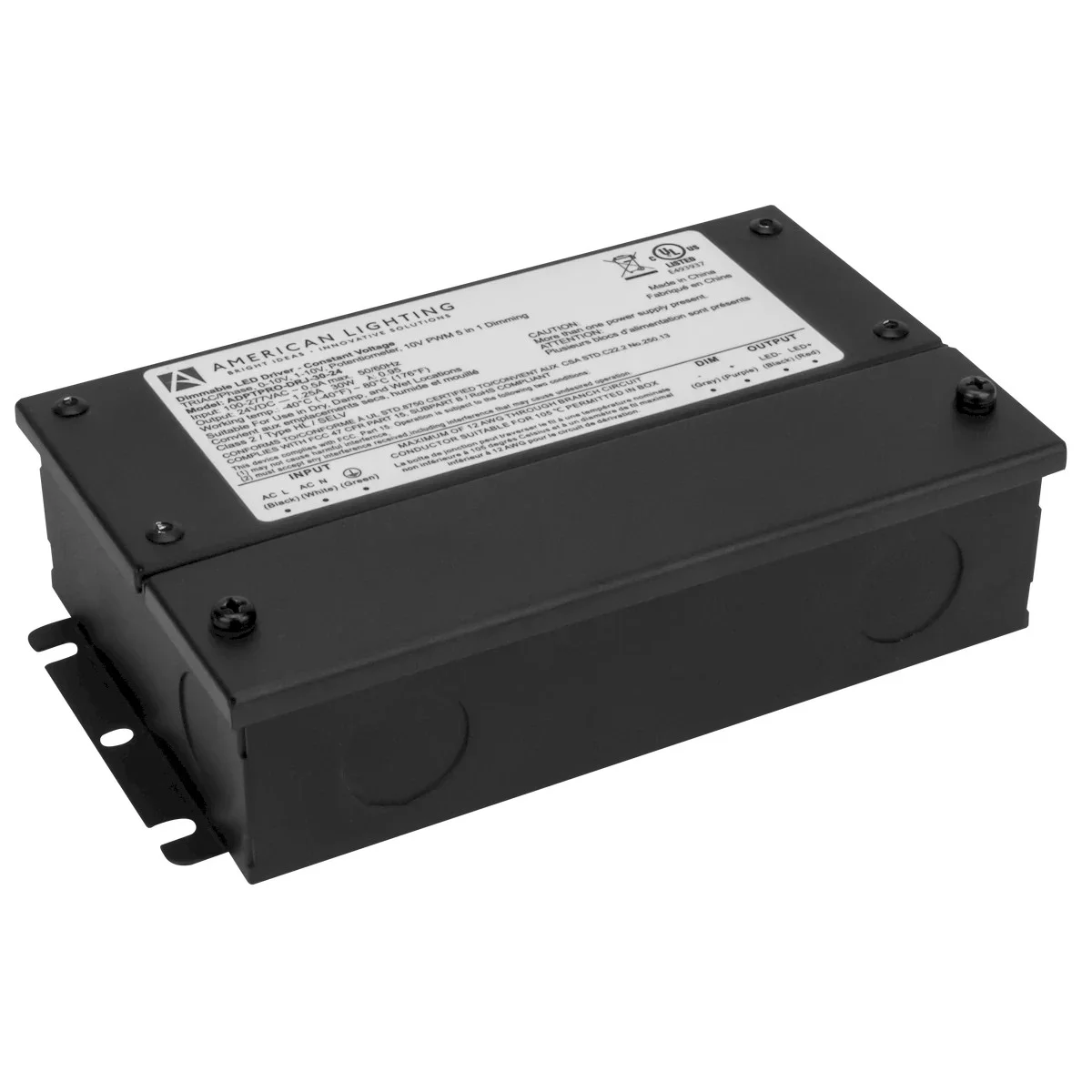

Compact 24V 30W power supply with selectable dimming options, ideal for low voltage applications. Features forward and reverse phase dimming.
Key Features and Benefits
- Slim and compact 24V DC constant voltage hardwire driver

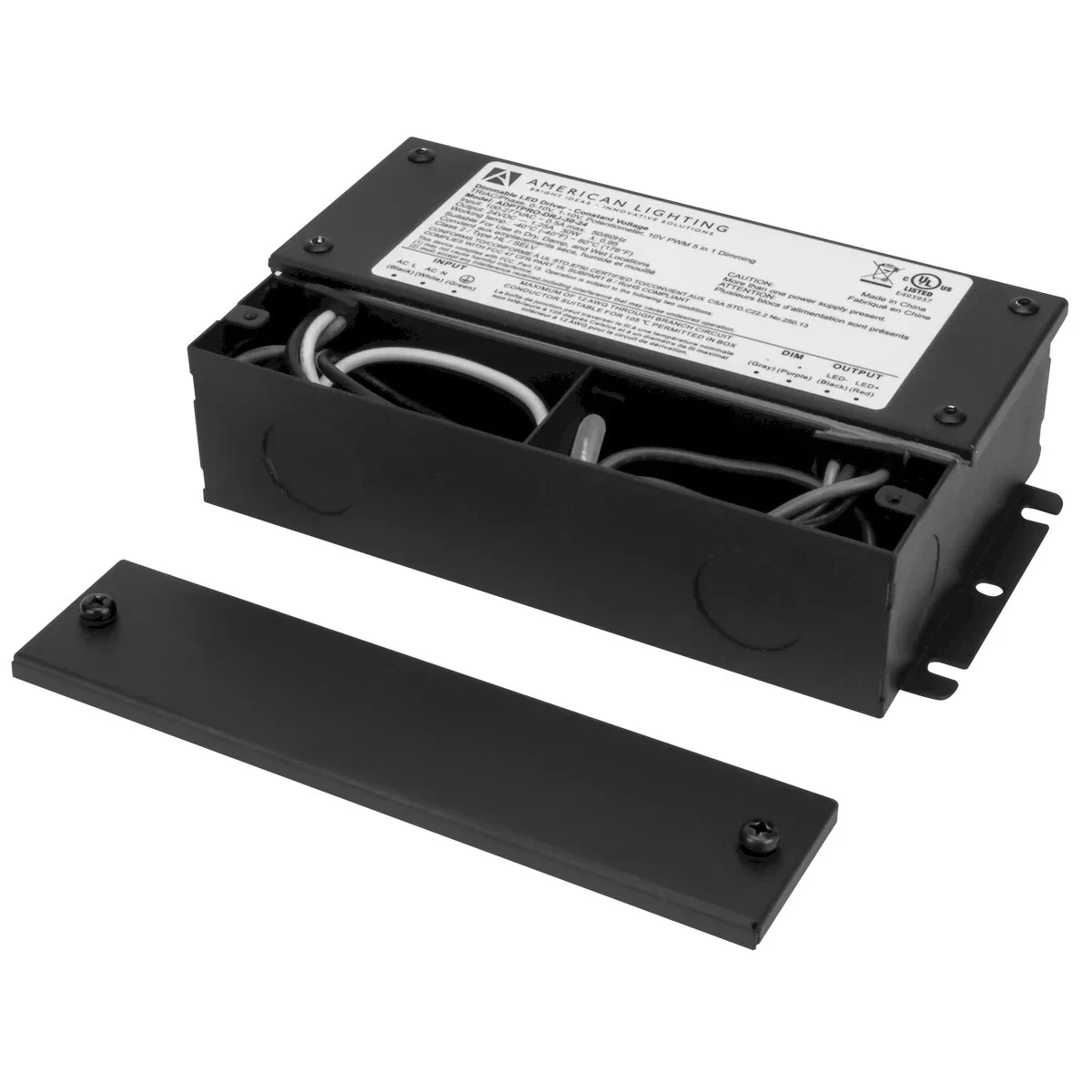

- Dedicated line voltage and low voltage wiring compartments
- Multiple 7/8” knock-outs for easy wire configuration
- Short circuit, over-voltage, over-temperature, overload protections
- 5-in-1 Forward and Reverse Phase Dimming: ELV / MLV / TRIAC / 0-10V/ 1-10V/Potentiometer / 10V PWM 4-in-1
- cULus Listed Wet location rated
- Class 2, Type HL, FCC Compliant
Specifications
- Input Voltage: 100-277V AC
- Input Frequency: 47-63Hz
- Output Voltage: 24V DC
- Rated Current: 1.25A
- Power Factor: 0.99@120V / 0.95@277V
- Efficiency: > 79% (120V) / 80% (277V)
- Dimensions: 6.49” (165mm) L x 3.6” (90mm) W x 1.02” (40mm) H
- Dimming: 0-100%
- Storage Temp: -40°F to 176°F (-40°C to 80°C)
- Ambient Temp: -40°F to 140°F (-40°C to 60°C)
- Operating Temp: -40°F to 140°F (-40°C to 60°C)
- Rating: cULus Listed for Wet locations
Common Uses
Ideal for use in low voltage applications requiring reliable power supply and dimming capabilities, such as LED fixtures and lighting systems.
