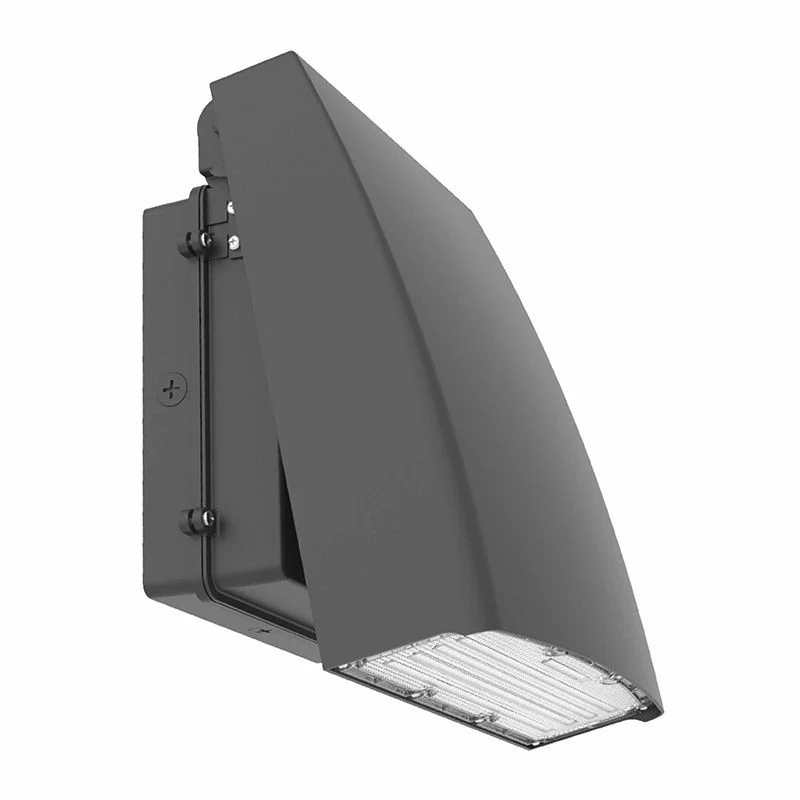

Versatile and High-Performance Wall Pack Light
This wall pack from the LWAX series stands out with its innovative features, offering unrivaled versatility and high performance. Designed for various outdoor lighting applications, this fixture provides selectable wattages and color temperatures, ensuring the best lighting performance for any situation.
Key Features and Benefits
- Selectable wattages: 50W, 80W, 100W, 120W
- Adjustable color temperatures: 3000K, 4000K, 5000K, 5700K
- High efficacy: 130 lumens per watt
- Durable die-cast aluminum housing with powder coat finish
- 0-10V dimmable for flexibility
- Energy-efficient SMD 3030 LEDs powered by Philips Lumileds
- Type II distribution for wide walkways, ramps, and entrance roadways
- Maximum lumen output: 15,000 lumens
- High CRI of ≥80 for true color rendering
- Rated life of 70,000 hours
- IP65 rated for wet locations, perfect for outdoor use
- Backed by a 7-year warranty
Technical Specifications
- Voltage: 120-277V AC 60Hz
- Power factor: >0.95
- Operating temperature: -4°F to 104°F
- Dimensions: 11″ (W) x 13″ (H) x 6″ (D)
- Beam angle: 80° x 100°
- Full cutoff, Dark Sky compliant
- Four 1/2″ knockouts: 1 top, 1 on each side, 1 back
Common Uses
Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. This wall pack light is also highly effective when used with motion sensors or other instant on/off controls, making it perfect for security lighting.
