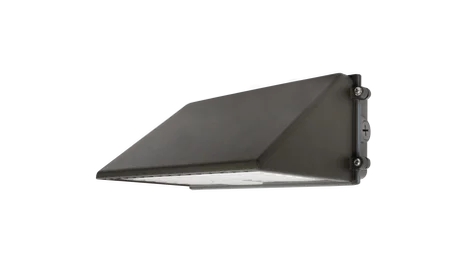

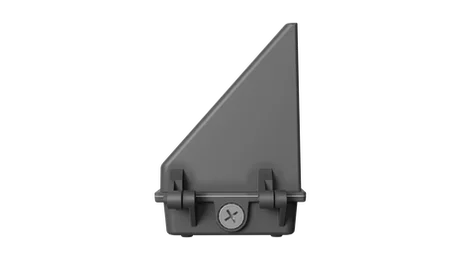

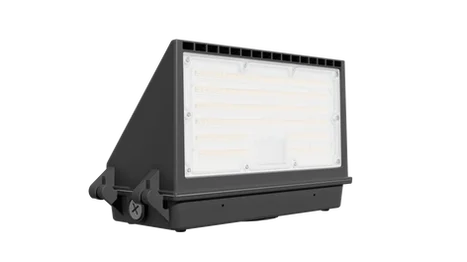

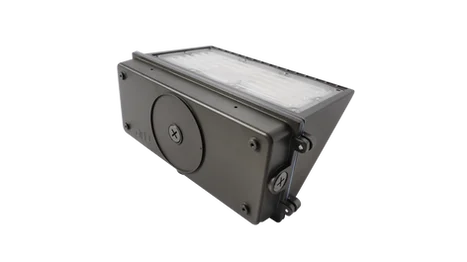

The Honya Lighting LED Full Cut-Off Wall Pack is a versatile outdoor fixture engineered for commercial and industrial perimeter lighting. Designed with selectable wattage and CCT, it gives contractors and facility teams flexibility to match site requirements while maintaining a clean, low-glare profile. As part of Honya’s outdoor lineup, it delivers dependable performance for security and pathway illumination.
Key Features and Benefits
- Field-selectable power settings (45W/60W/75W) to balance brightness and energy savings per application.
- Selectable 3000K/4000K/5000K CCT for warm-to-neutral-to-daylight visual comfort.
- Integrated photocell enables automatic dusk-to-dawn operation for convenience and reduced energy waste.
- 0-10V dimming support allows advanced lighting control integration.
- DLC Premium and ETL listed for trusted compliance and utility rebate-friendly projects.
- Backed by a 5-year warranty for long-term confidence.
Specifications
- Lumen Output: 9534
- Input Voltage: 100-277V, 50/60Hz
- CRI: 70+
- Power Factor: >0.9
- Beam Angle: 90° x 100°
- Housing Material: ADC12 Aluminum
- Finish: Dark Bronze
- Operating Temperature: -40°F to +104°F (-40°C to +40°C)
- Rated Life: 50,000+ hours (L70)
- Mounting: Fixed Bracket, recommended 14’–16′ mounting height
- Environment: Wet Location
- Fixture Dimensions: 12.60″ x 7.48″ x 5.12″
Common Uses
Ideal for building facades, patios, driveways, walkways, decks, parking garages, and other exterior commercial or industrial wall-mounted lighting applications requiring reliable wet-location performance.
