The Westgate SCX Series 3′ linear fixture is a modern architectural lighting solution designed for clean, continuous illumination in commercial interiors. This 30W model combines selectable CCT flexibility, louvered optical control, and a low-profile form factor to support both design intent and visual comfort.
Key Features and Benefits
- Selectable 4-CCT output lets you tune the space to 3000K, 3500K, 4000K, or 5000K from inside the fixture.

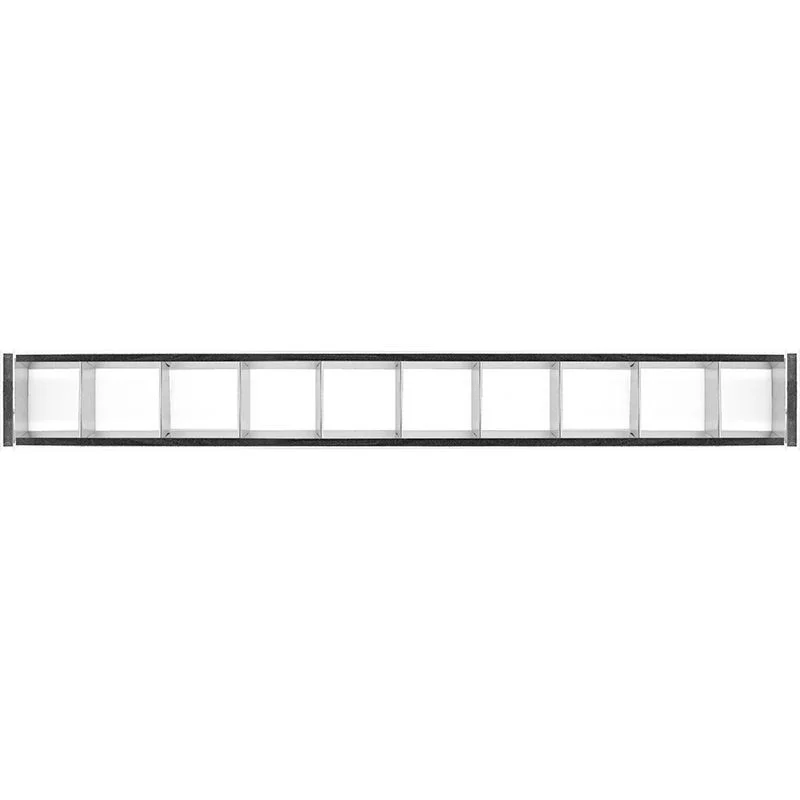

- Polished aluminum louver lens helps deliver controlled direct downlight with reduced glare.
- Flexible installation supports surface, suspended, wall, and recessed mounting layouts.
- Built for reliability with IP54 protection, 50,000-hour life, and a 5-year warranty.
- UL Listed and DLC-ready performance profile for commercial project confidence.
Specifications
- Lumen Output: 3300
- Wattage: 30W
- Voltage: 120-277V
- Dimming Type: 0-10V
- CRI: 80
- Efficacy: 110 lm/W
- Beam Angle: 104.8°(H) x 100.5°(V)
- Power Factor: 0.95
- THD: 20
- Frequency: 50/60 Hz
- IP Rating: IP54
- Operating Temperature: -13°F to 104°F
- BUG Rating: B2-U2-G1
- Dimensions: 35 3/4″(L) x 2 6/8″(W) x 3 3/8″(H)
Common Uses
Ideal for offices, conference rooms, lobbies, reception areas, corridors, libraries, hospitality spaces, retail environments, and other indoor commercial applications requiring sleek linear architectural lighting.
