The SCX Series 4-ft linear LED fixture delivers versatile, clean-lined illumination for commercial and architectural interiors. Its selectable color temperature, linkable design, and flexible mounting options make it adaptable for both individual installations and continuous lighting layouts.
Key Features and Benefits
- Choose from four color temperatures using the switch inside the fixture to suit the room and task.
- Connect fixtures into seamless linear runs, with T, L, and X joints available for layout flexibility.
- An opal polycarbonate lens provides broad, direct-down illumination; an optional louver or indirect uplight is available.
- Surface, suspended, wall, and recessed mounting options support varied ceiling and wall conditions.
- Optional configurations include custom colors, a 90-minute emergency battery backup, and occupancy or daylight sensors.
- UL Listed and DLC Listed; backed by a 5-year warranty.
Specifications
- Series: SCX
- Nominal length: 4 ft

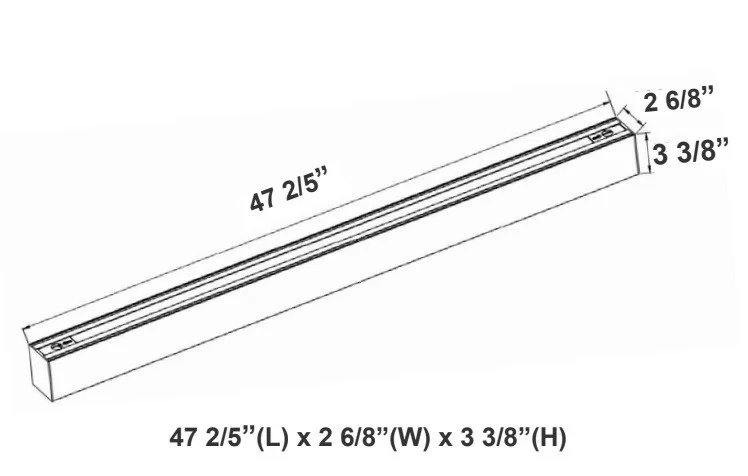

- Dimensions: 47 2/5 in (L) x 2 6/8 in (W) x 3 3/8 in (H)
- Wattage: 40W
- Input voltage: 120–277VAC, 50/60Hz
- Power factor: >0.95
- Lumens by color temperature: 4,375 lm at 3000K; 4,612 lm at 3500K; 4,693 lm at 4000K; 4,710 lm at 5000K
- Efficacy by color temperature: 105 lm/W at 3000K; 110 lm/W at 3500K; 111 lm/W at 4000K; 117 lm/W at 5000K
- Color temperature: Selectable 3000K, 3500K, 4000K, or 5000K
- Dimming: 0–10V
- Color rendering index: CRI ≥80
- Beam angle: 104.8° horizontal x 100.5° vertical
- Rated life: 50,000 hours
- Light distribution: Direct downlight; optional uplight
- Lens: Opal polycarbonate; snaps into housing
- Housing: Aluminum with matte white finish
- Mounting: Surface, suspended, wall, or recessed
- Ingress protection: IP54
- Operating temperature: -13°F to 104°F
- BUG rating: B2-U3-G1
- Linking: T, L, and X joints supported at both ends
Common Uses
Suitable for offices, conference rooms, meeting halls, corridors, reception areas, retail spaces, storage rooms, educational facilities, hotels, restaurants, libraries, and other indoor commercial environments.
