Availability: 8 in stock
Enhance your lighting system’s reliability with the Emergency Battery Back Up ELB-1248. This cutting-edge device ensures continuous illumination during power outages, featuring a rapid charging time of 24 hours and an impressive 1.5 hours of emergency lighting capacity at a maximum of 12 watts. Covered by a 3-year warranty, the ELB-1248 offers extraordinary performance and durability.
Key Features
Compliant with major safety standards, including CSA C22.2 NO.141 UL924
Incorporates an external lithium battery with advanced protection mechanisms to guard against overcharging, overdischarging, and short circuits
Illuminated indicators to show various operational modes
Battery rated for 500 standard charge and discharge cycles
RoHS compliant for environmentally friendly operation
Emergency lighting duration of 1.5 hours
Technical Specifications
Universal Input Voltage: 100-277Vac, 50-60Hz
AC Input Current: 100mA max.
AC Input Power: 7.0W max.
Output Current and Voltage: 250-480mA, 25-48Vdc
Output Power: 12W max.
Emergency Duration: ≥1.5H
Full Warranty: 3 Years
Test Switch and Indicator Light: Illuminated Test Switch and Indicator Light
Battery: Li-ion battery, 11.1V/2500mAH
Battery Charging Current: 250mA
Charging Time: ≥24 Hours
Operating Temperature: 0°C to 40°C (32°F to 104°F)

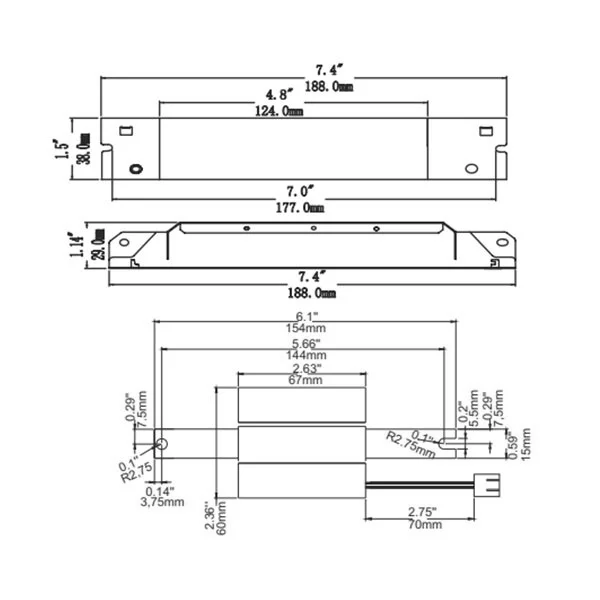

Dimensions: 7.4” x 1.5” x 1.1” (188mm x 38mm x 29mm)
Weight: 0.73 lbs (0.33 kg)
Operational Details
AC Operation
When AC power is available, the LED load is powered normally by the LED driver while the emergency driver stays charged in standby mode. The green LED light indicates the charging status.
Emergency Operation
During an AC power outage, the emergency driver seamlessly switches to emergency mode, turning off the green LED light. Once power is restored, it reverts back to AC mode and starts recharging, with the green LED light turning back on.
