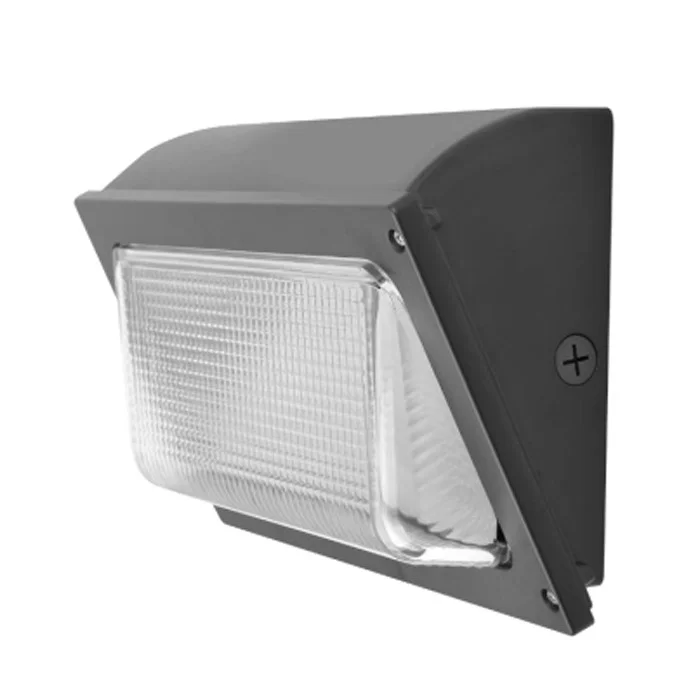

Traditional Wall Pack with selectable color temperatures of 3000K, 4000K, 5000K and adjustable lumen outputs up to 15,000 lumens.
Key Features and Benefits
- Field selectable 3000K (warm white), 4000K (neutral white), and 5000K (cool white) color temperatures.
- Long-life LEDs provide at least 70% of initial lumen output (L70) for > 130,000 hours of operation, and at least 90% of initial lumen output (L90) for > 39,000 hours of operation.
- LED chromaticity based on < 5-step ANSI quadrangles.
- Provides a range of 4,300 to 15,500 nominal lumens and 124 to 159 nominal lumens per watt (lm/W).
- 0-10vdc dimming drivers are standard.
- Universal 120-277 AC voltage (50-60Hz) is standard.
- Power factor > 0.90.
- Total harmonic distortion < 20%.
- Color rendering index (Ra) > 70.
- Cast aluminum housing with dark bronze, powder coat finish.
- Glass lens.
- Three ½” NPT threaded openings.
- Easy installation in new construction or retrofit applications.
Specifications
- cULus listed for wet locations in ambient temperatures from -40°C to 40°C (-40°F to 104°F).
- IP65 rated for ingress protection.
- DLC premium approved.
- Complies with FCC Part 15, class A.
- Surge protection = 4kV.
- 5-year warranty of all electronics and housing.
Common Uses
Ideal for outdoor lighting applications such as building perimeters, walkways, and loading areas.
