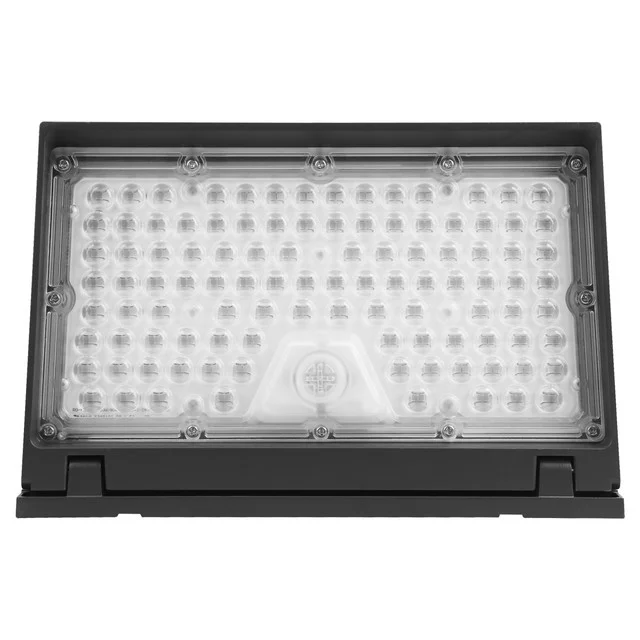

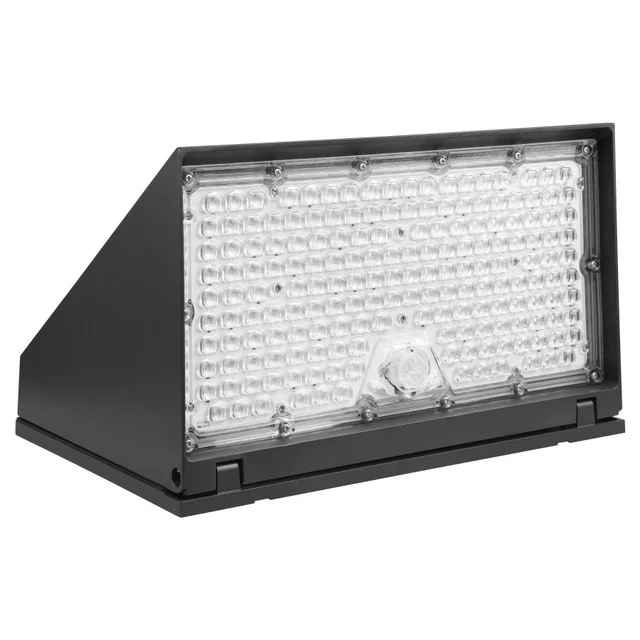

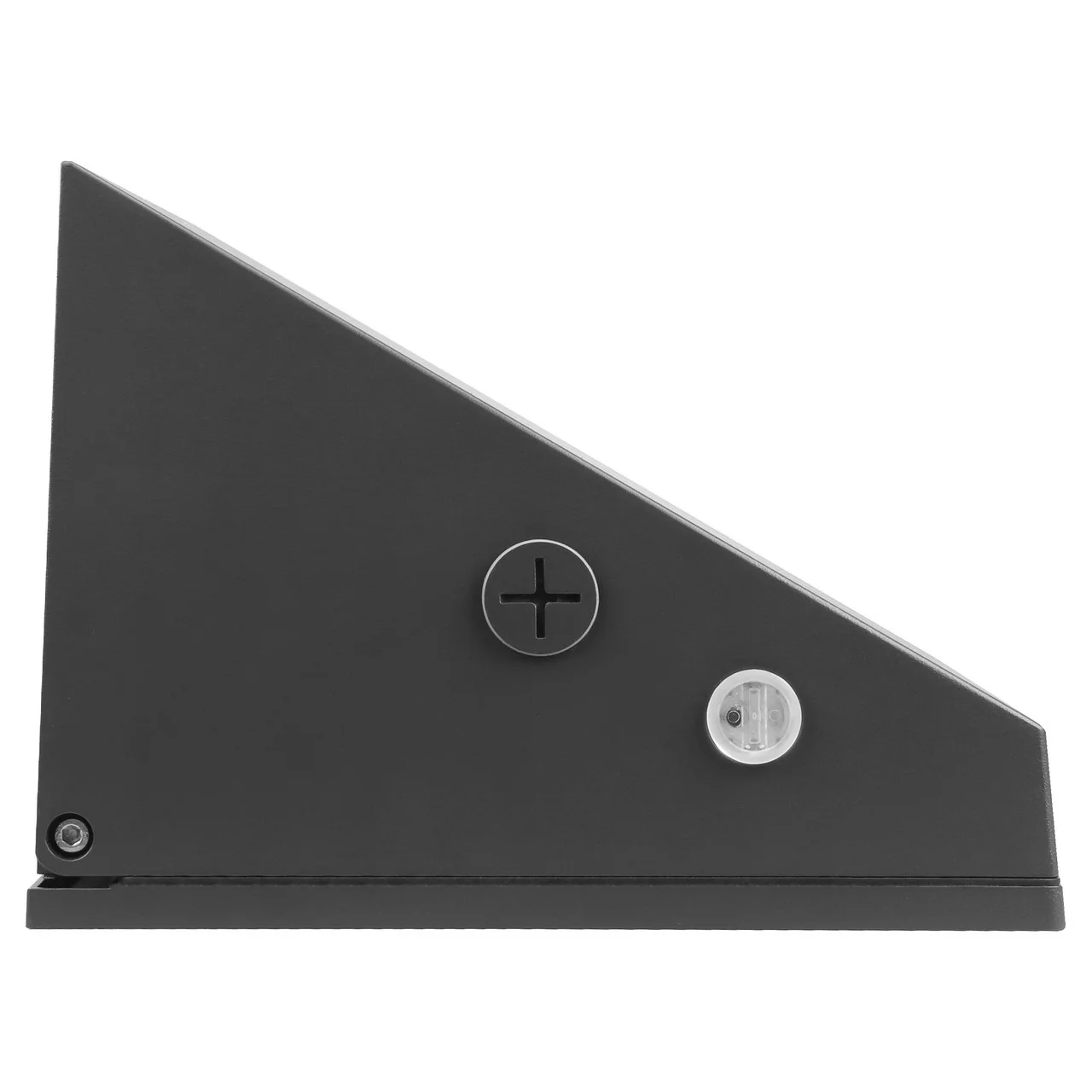

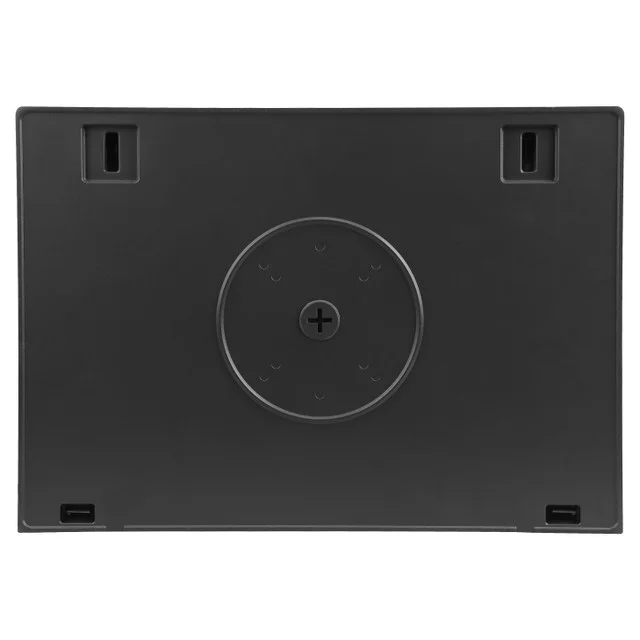

The ESL Vision Full Cutoff Wall Pack Series is a high-performance outdoor fixture designed for efficient perimeter and building-mounted illumination. This 3rd-generation model combines selectable wattage and CCT flexibility with strong optical control, making it a dependable choice across commercial and industrial sites.
Key Features and Benefits
- Field-adjustable output with three wattage settings (80W/100W/120W) to match site lighting needs
- Selectable 3000K/4000K/5000K color temperatures for warm-to-daylight visual comfort
- Integrated on/off photocell supports automatic dusk-to-dawn operation
- 0-10V dim-to-off capability enables energy savings and control integration
- High efficacy performance up to 141 lm/W helps reduce operating costs
- UL Listed and DLC Premium listed model with a 5-year warranty for long-term confidence
Specifications
- Lumen Output: up to 16,965
- Input Voltage: 120-277VAC
- CRI: >80
- Frequency: 50/60Hz
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
- Distribution: Type II
- Rated Life (L70): 165,000 hours (TM-21 calculated)
- Dimensions: 13.28″ x 9.36″ x 8.11″
- Weight: 9.26 lbs
- Default Setting: 120W, 5000K (photocell on)
Common Uses
Ideal for exterior walls of warehouses, schools, retail centers, parking perimeters, service entrances, and general security lighting zones where controlled cutoff distribution and reliable all-weather operation are required.
