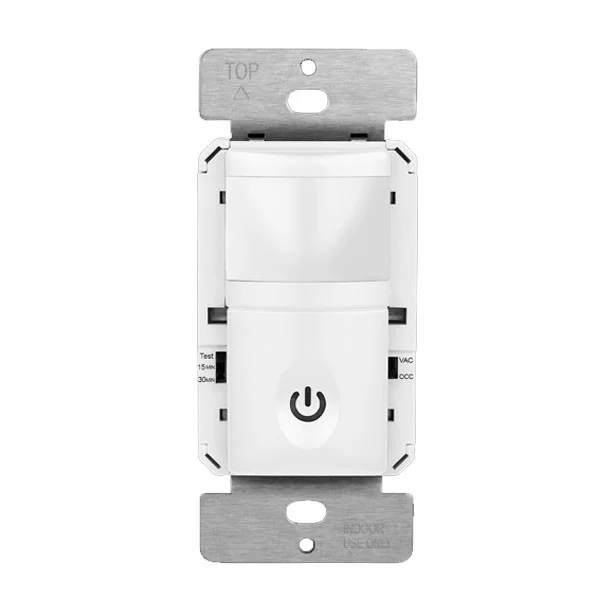

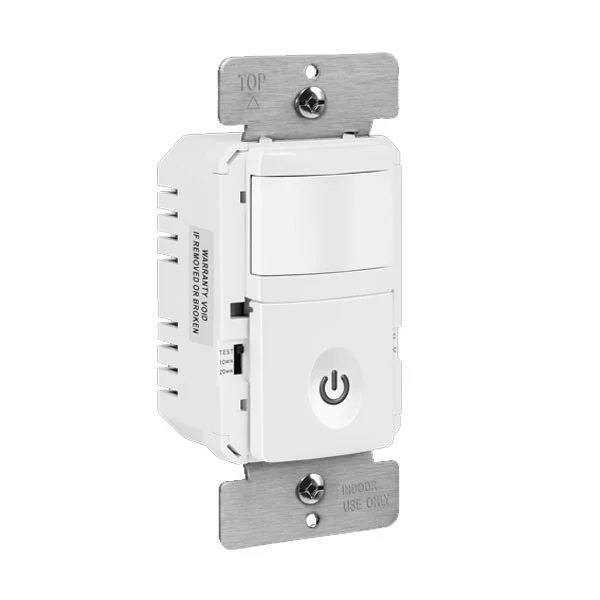

Single Pole 180° PIR Vacancy Motion Sensor Wall Switch – Secured Ground Wire

Single pole 180° PIR vacancy motion sensor wall switch – secured ground wire, available in black, ivory, light almond or white finish, 120VAC, 60Hz voltage, manual ON / automatically OFF (vacancy mode).
Minimum order qty. of 10 pcs.
DESCRIPTION
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically.
FEATURES

Manual ON / automatically OFF (Vacancy Mode)
Time delay from 15 seconds (test mode) to 20 minutes
No neutral wire required

SPECIFICATIONS

Voltage: 120 Vac, 60 Hz
Incandescent: 500W
Fluorescent: 500 VA
LED: 150W
Motor: 1/8 HP
Time delay: 15 Sec to 20 Mins
Operating Temperature: 32 F to 131 F

COVERAGE AREA

Best: 180 sq.ft.
Regular: 450 sq.ft.
Maximum: 700 sq.ft.

As illustrated in Figure 1, The HMVS-J has a 180° detection range with a maximum distance of 30’detection in front of the sensor and 12’ on the sides providing 700 sq. ft. of coverage. For maximum results, the sensor must be properly installed between the height of 4’ to 5’ and away from obstructions such as walls, furniture and transparent barriers like Low-E glass.
