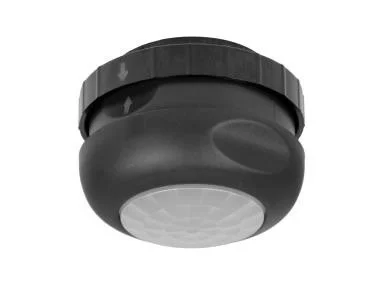

The MaxLite Network Node is a versatile solution in the c-Max series, providing advanced lighting control with its integrated PIR motion sensor and photocell. Designed for seamless integration and easy installation, it enhances energy efficiency and compliance with energy codes.
Key Features and Benefits
- Luminaire Level Lighting Control (LLLC) with Bluetooth technology
- Up to 328ft communication range
- Simple Plug-and-Play connection with USB-C receptacle
- Easy commissioning with the c-Max App
- Individual addressability and grouping capabilities
- Multi-level dimming and customizable dimming scenarios
- Time clock scheduling for lights, groups, or scenes
- High-Trim/Tuning for maximum light level adjustments
- Robust construction with vandal-resistant features
Specifications
- Operating Voltage: 12-20VDC
- Operating Current: max 35mA
- Control Output: 0-10V (Linear)
- Radio Frequency: 2.4GHz ± 75MHz
- Wireless Standard: BLE MESH
- Operating Temperature: -40°F to 130°F / -40°C to 55°C
- IP Rating: IP66
Common Uses
Ideal for site lighting, parking garages/lots, and exterior applications.
