The AleoBlue AB-SPIR-FM-DVE is a wireless Bluetooth PIR occupancy sensor with daylight harvesting, designed for seamless integration into Aleo indoor luminaires. This advanced fixture-mount sensor brings smart controllability, energy savings, and flexibility to commercial lighting projects with easy snap-in installation and robust Bluetooth NLC mesh networking.
Key Features and Benefits
- Wireless Bluetooth NLC for decentralized, gateway-free control
- Passive infrared (PIR) occupancy sensing with 360° detection
- Selectable daylight harvesting for optimized energy savings
- 0-10V dimming output for flexible lighting control
- Simple snap-in installation with 4-pin quick connector
- Compatible with Aleo indoor luminaires
- Intuitive app-based configuration and scene setting
- Robust mesh network with no single point of failure
- DLC NLC Qualified for energy code compliance
- 5-year limited warranty for peace of mind
Specifications
- Input Voltage: 10-14VDC
- Sinking Current: 25mA (max)
- Detection Angle: 360°
- Mounting Height: up to 13ft
- Bluetooth Range: up to 100ft (environment dependent)
- Operating Temperature: -20°C to 60°C

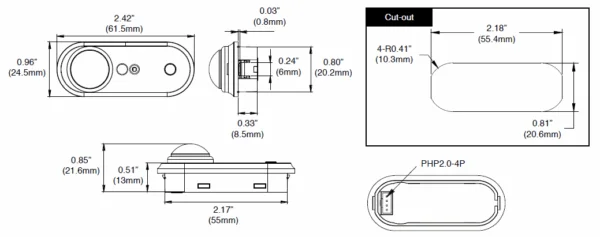

- Form Factor: Snap-in, oblong, 4-pin quick connector
Common Uses
Ideal for open offices, private offices, conference rooms, classrooms, retail stores, hospitals, and lobbies—anywhere smart, energy-efficient lighting control is needed.
