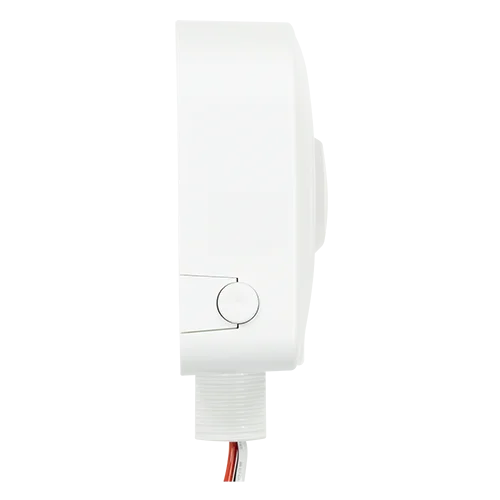

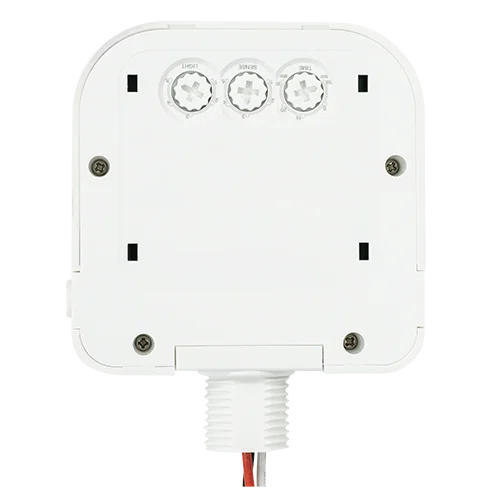

The GlobaLux OS is a compact, fixture-mounted occupancy sensor designed to provide reliable On/Off control for LED drivers in commercial and industrial spaces. Its slim profile and external lens make installation easy and discreet, while its advanced PIR technology ensures comprehensive coverage for mounting heights up to 40 feet.
Key Features and Benefits
- Easy installation with quicksnap feature and external lens design
- Adjustable sensitivity to fine-tune detection and avoid false triggers
- Selectable time delay from 5 seconds to 30 minutes for flexible control
- Manual daylight set point calibration for optimal energy savings
- California Title 24 compliant for energy code requirements
- Provides On/Off control and a secondary dimming period before shutoff
- Low standby power consumption for efficient operation
Specifications
- Operating voltage: 120-277VAC, 50Hz
- Rated load: 400W@220-277VAC, 200W@120VAC (inductive), 800W@220-277VAC, 400W@120VAC (resistive)
- Detection zone: Max 10m x 6m
- Detection sensitivity: 0% / 50% / 75% / 100%
- Hold time: 5s / 30s / 90s / 3min / 20min / 30min
- Daylight sensor: 2lux / 10lux / 25lux / 50lux / Disable
- Mounting height: Up to 6m
- Detection angle: 150° (wall), 360° (ceiling)
- Operating temperature: 20°C to 60°C
- IP20 rated for indoor use
Common Uses
Perfect for parking facilities, gas stations, pathways, warehouses, and other commercial or industrial areas where reliable occupancy-based lighting control is needed.
