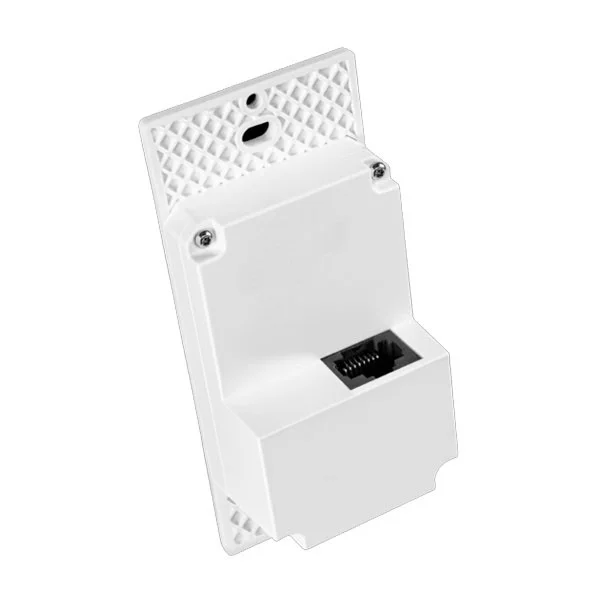

Low Voltage LED Dimmer Switch, Single Load with LED Control, White

The Enerlites LVD-101-W is a low voltage LED dimmer switch used to control various 0-10V dimmable LED panel lights. It must be used with LV-CAT5 to receive 24V supplied by the MPP-24 Power Pack. It also works with the MPC-50L Low Voltage Occupancy Sensor and MPL-010 Daylight Sensor to recognize and react to motion sensing and automatic brightness adjustments of LED lights.

Key Features and Benefits

• LED bar graph indicates relative light level of controlled load
• Low voltage switch to control dimmable loads
• Eliminates wiring errors with built-in RJ45 connector
• Last dim memory mode

Specifications

• Voltage: 24V DC from Power Pack
• Dimming Control: 0-10V
• Consumption: 20mA
• Warranty: 2 Years

Common Uses

Homes, Apartments, Condominiums, Offices, Hotels, Restaurants
