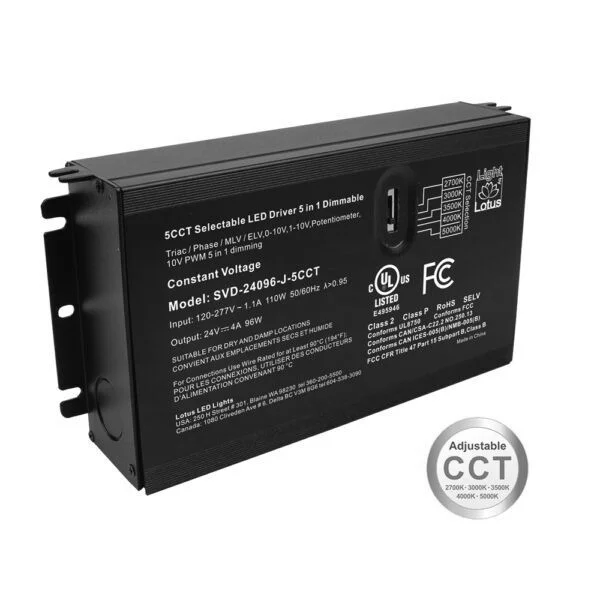

The Lotus LED Lights SVD-24096-J-5CCT is a versatile 5CCT selectable 24V 96W class 2 LED driver, designed for seamless integration with Lotus tunable white LED tape. This advanced power supply features built-in wiring compartments for both line and low voltage connections, ensuring a clean and efficient installation.
Key Features and Benefits
- Selectable color temperature from 2700K to 5000K for ultimate flexibility
- 5-in-1 dimming compatibility: TRIAC, ELV, MLV, 0-10V, 1-10V, Potentiometer, and 10V PWM
- Active Power Factor Correction and Pulse Width Modulation for smooth dimming
- Multiple knock-outs for easy wiring and installation
- High efficiency up to 91% and low standby power consumption
- Robust protection against short circuit, over-voltage, over-heat, and over-load
- Certified for dry, damp, and wet locations
- 5-year warranty for peace of mind
Specifications
- Wattage: 96W
- Voltage: 120-277V AC input, 24V DC output
- Selectable Color Temperature: 2700K|3000K|3500K|4000K|5000K
- Power Factor: >0.95 at full load
- Efficiency: 89% @120V, 91% @277V
- Dimensions: 7″ x 3.5″ x 1.5″
- Certifications: cULus Listed, FCC, Class 2, Class P
Common Uses
Ideal for use with Lotus tunable white LED tape in residential, commercial, and hospitality settings where adjustable color temperature and reliable dimming are desired.
