The Proluxe Navi Dim Series 24V DC All-In-One Dimmer + Driver is a game-changer for LED lighting installations, merging a dimmer switch and power supply into a single, easy-to-install unit. Designed for seamless integration into standard in-wall switch boxes, this unit accepts 120V AC input and delivers a reliable 24V DC output, making it ideal for most 24VDC tape lights and fixtures.
Key Features and Benefits
- Combines LED driver and in-wall dimmer for simplified installation
- Eliminates compatibility issues with a single integrated solution
- Wide 0.3-100% dimming range with smooth, flicker-free performance
- Single pole or 3-way operation with push on/off switch
- Adjustable voltage output dial to compensate for voltage drop
- Includes voltage barrier for safe installation of high and low voltage circuits
- No derating required when ganging multiple units
- Power failure memory restores previous settings
- High efficiency (91%) and power factor (>0.99)
- cULus Listed, FCC, SELV, Class 2, and Class P certified
Specifications
- Input Voltage: 120V AC (108~132VAC), 60Hz
- Output Voltage: 24V DC (adjustable 24V-26V)
- Max Wattage: 60W
- Max Output Current: 2.5A
- Dimming: 0.3-100% (16KHZ PWM)
- Operating Temp: -40°C to 60°C
- Rated Life: >30,000 hours

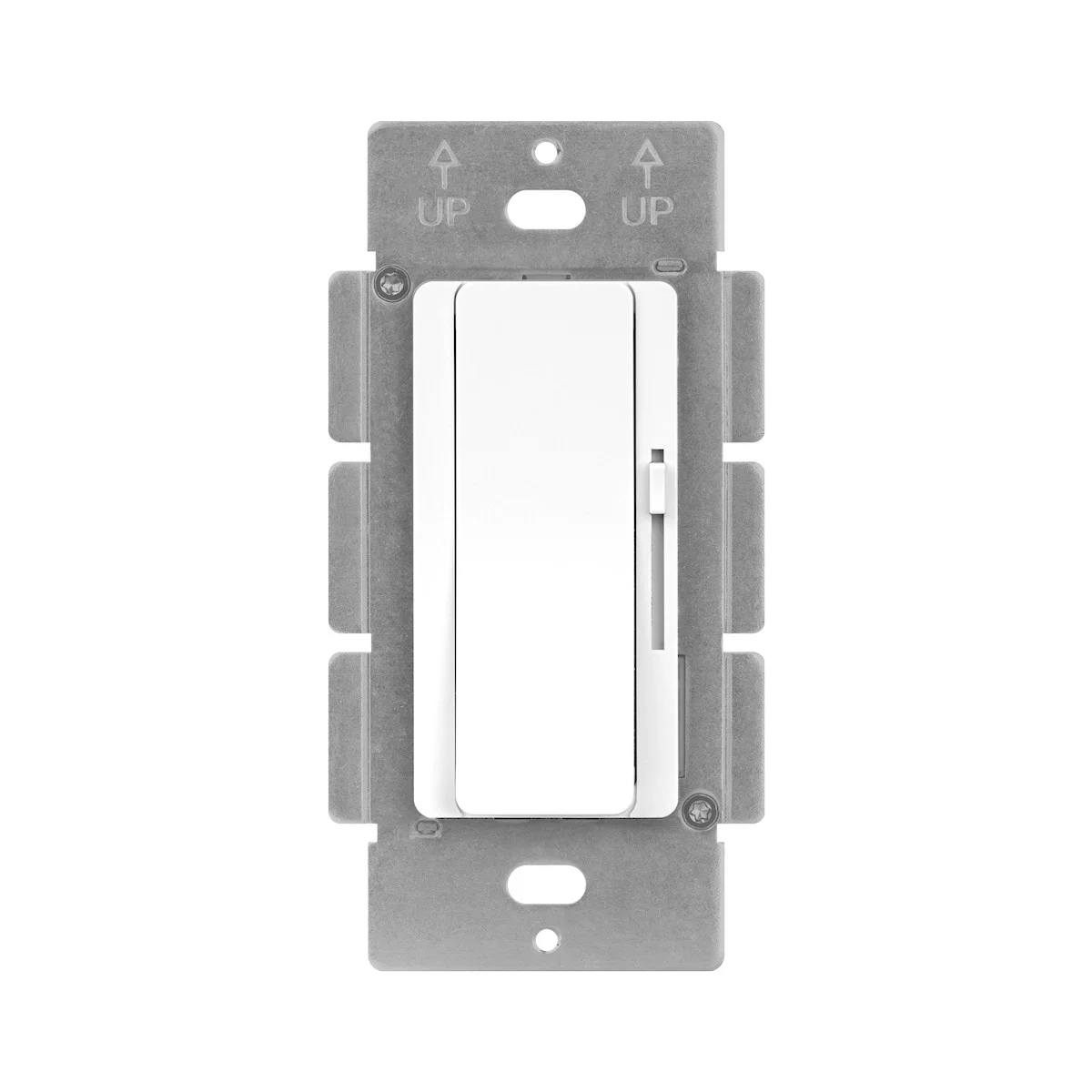

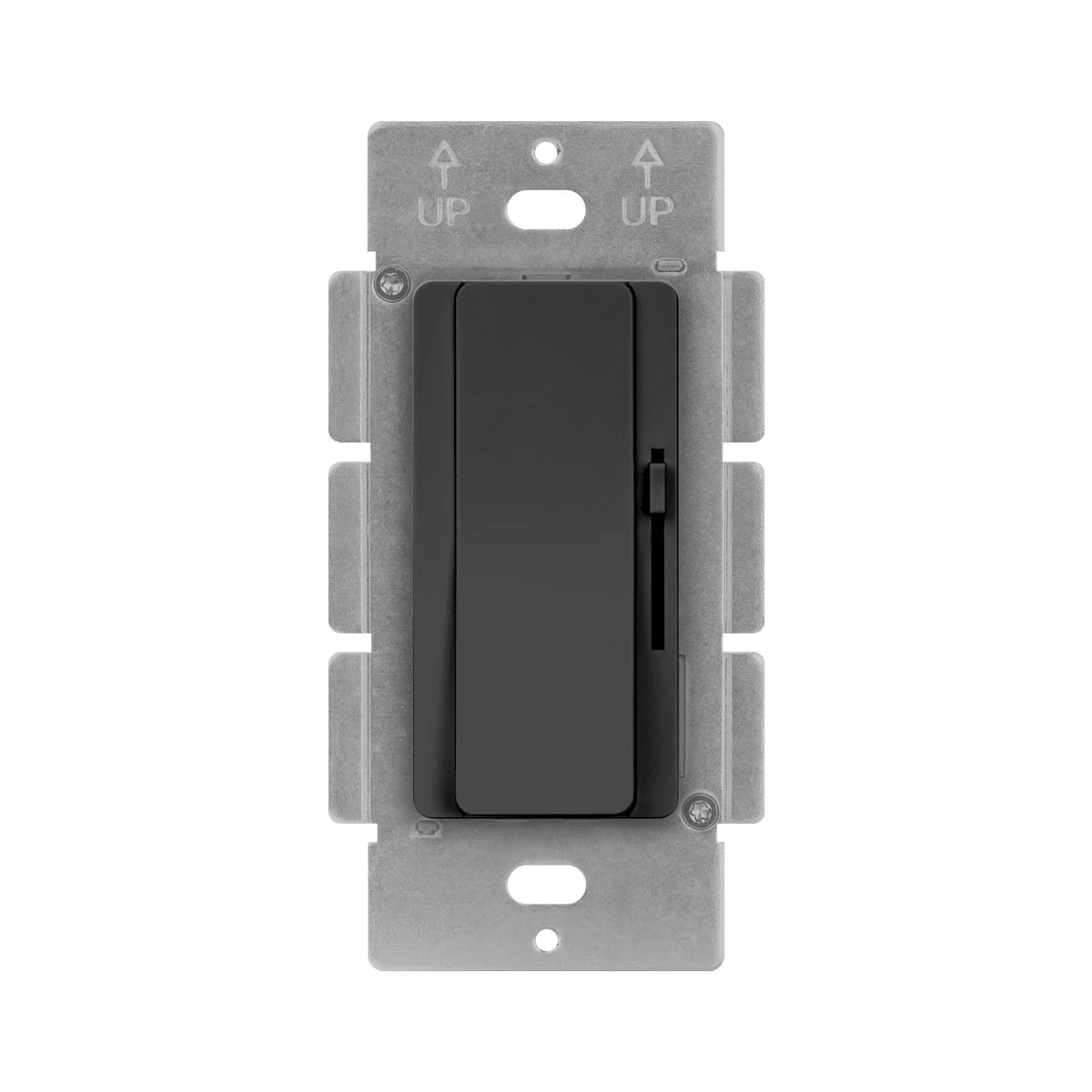

- Available Finishes: White, Black
- Fits standard single gang recessed electrical box
Common Uses
Perfect for residential and commercial applications where streamlined, reliable dimming and power for 24V LED tape lights or fixtures is needed, such as kitchens, living rooms, offices, and retail spaces.
