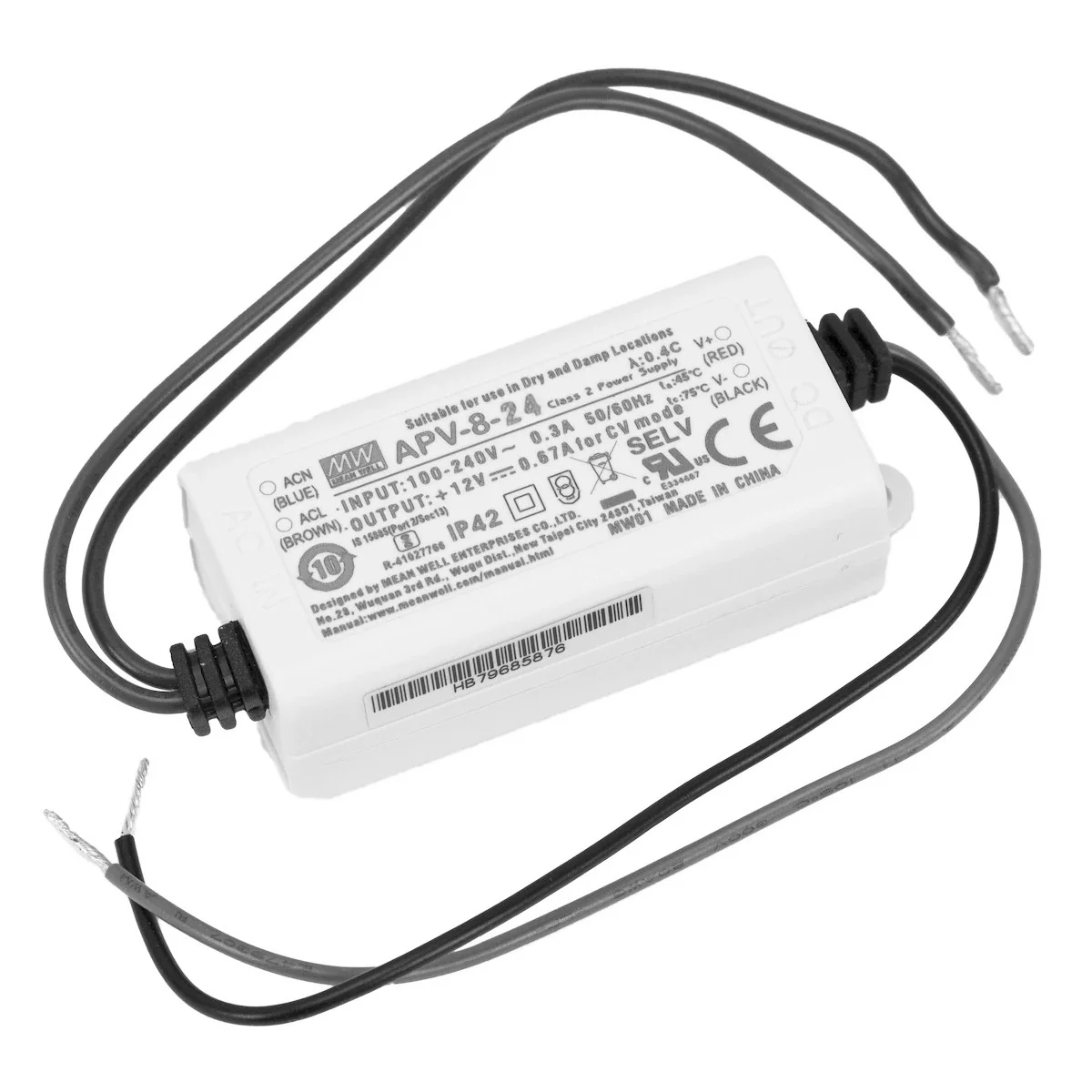

Compact 8W constant voltage driver with universal 100-240V AC input and 24V DC output. Features short circuit, over-voltage, and overload protections.
Key Features and Benefits
- Class 2, 8W constant voltage driver
- Non-dimming; secondary side dimming only
- Double insulation barrier for surge protection (no ground)
- Short circuit, over-voltage, and overload protections
- Universal AC input (full range) with built-in constant current limiting circuit
- IP42 fully isolated plastic case
- Compatible with optional ENCL-11 power supply enclosure
- cURus Recognized (dry and damp locations)
- RoHS Compliant
Specifications
- Input Voltage: 100-240V AC, 50/60Hz
- Output Voltage: 24V DC
- Rated Current: 0.34A
- Efficiency: > 81% (24V)
- Operating Temperature: -30°C (-22°F) to 70°C (158°F)
- Operating Humidity: 20 ~ 95% RH non-condensing
- Dimensions: 2-7/8”L x 1-3/16”W x 15/16”H
Common Uses
Ideal for use with Trulux receivers and controls for secondary side dimming and in non-dimming applications. Suitable for dry and damp locations.
