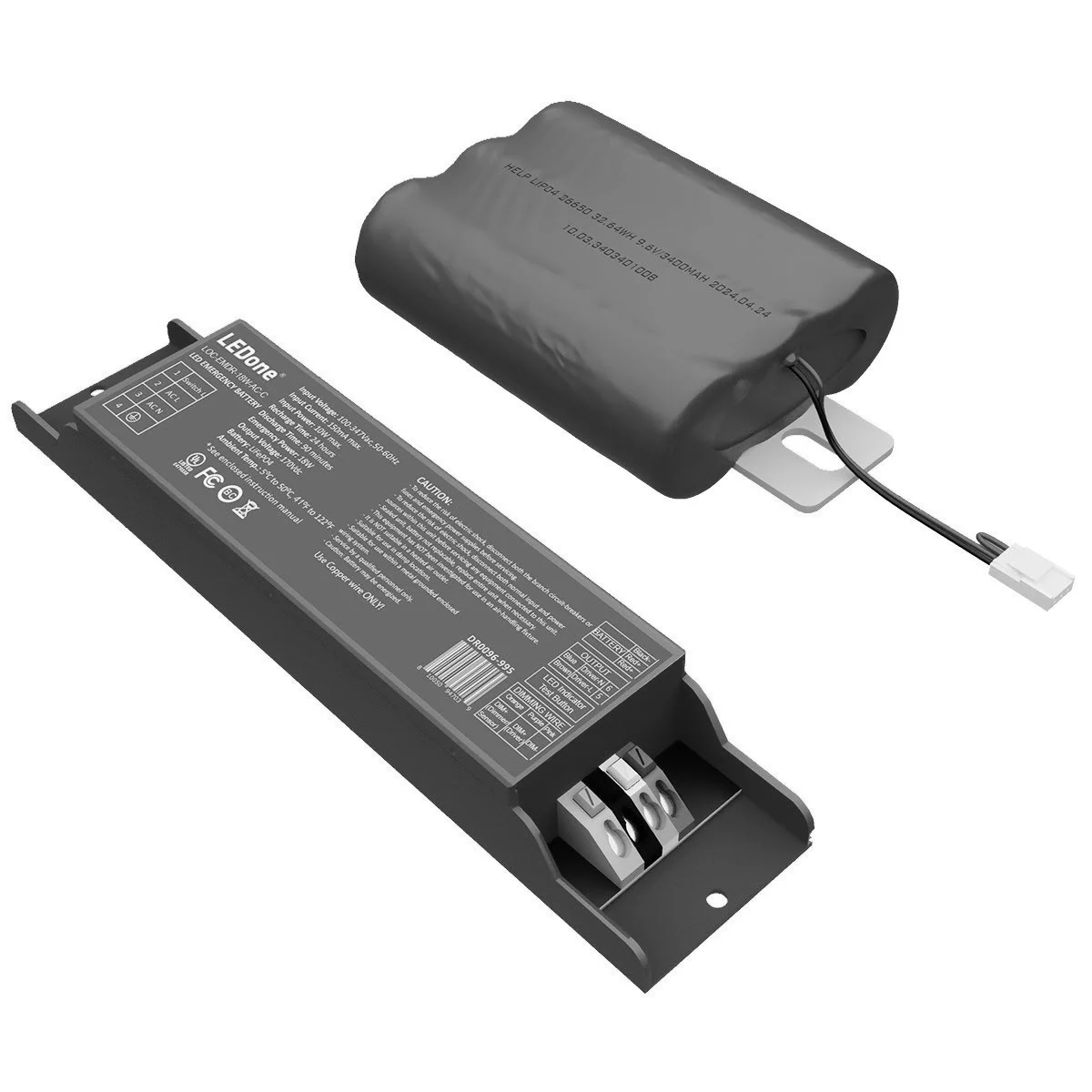

This Emergency Driver is part of the LED LOC-EMDR Series, known for its reliability and safety in emergency lighting solutions.
Key Features and Benefits
- Listed to UL924 and tested to CSA C22.2 NO. 141
- High input voltage with low energy consumption
- Constant output power with self-testing capabilities
- Li-ion/LiFePO4 battery with over temperature, charge, and discharge protection
- Malfunction indication and surge protection up to 3KV
- Operable in ambient temperatures from 5°C to 50°C (41°F to 122°F)
- 5-year limited warranty
Specifications
- Input Voltage: 100-347 Vac, 50/60Hz
- Input Current: 150mA max
- Input Power Rating: 10W max
- Output Voltage: 170 Vdc
- Emergency Power: 18W max
- Recharge Time: 24 hours
- Discharge Time: 1.5 hours
Common Uses
Ideal for integration in commercial and industrial emergency lighting systems, ensuring safety and compliance with life safety codes.
