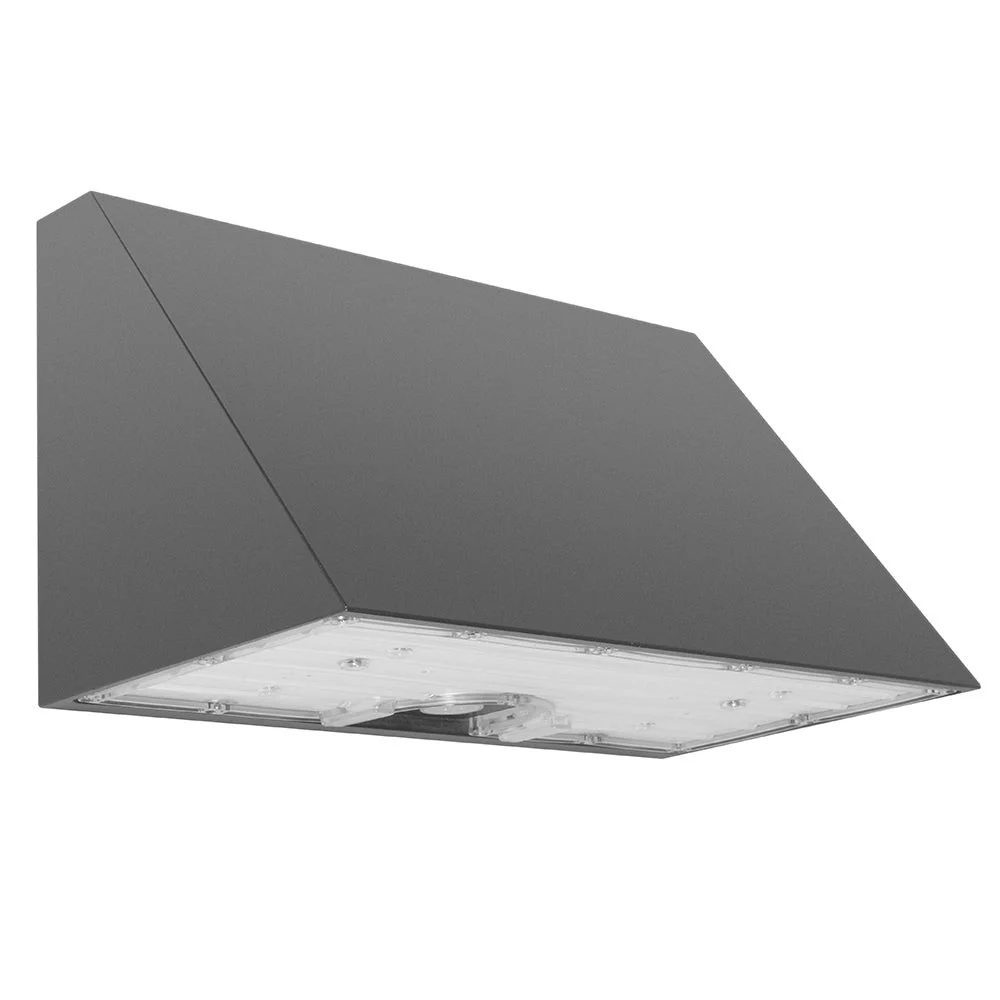

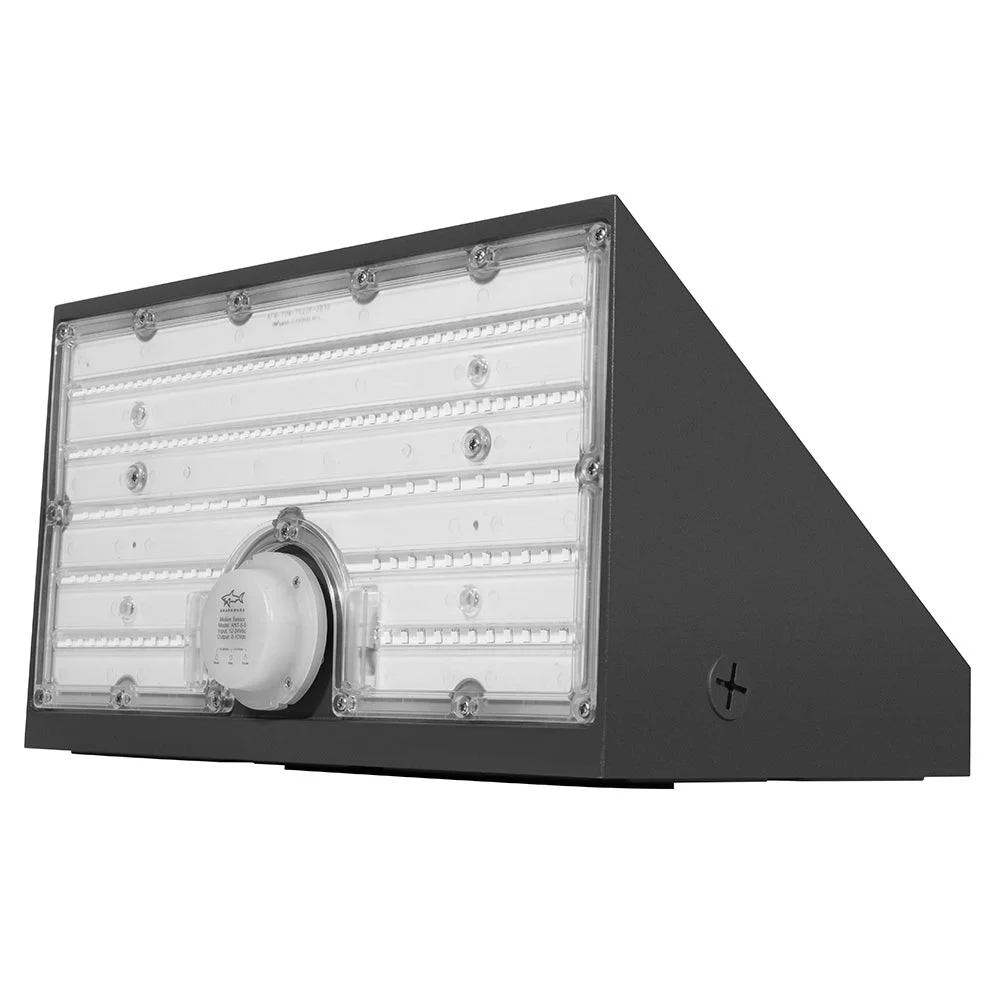

High-performance LED Architectural Wall Pack with selectable wattages (48W/72W/96W/120W), Type IV distribution, 4500K color temperature, and adjustable lumen outputs.
Key Features and Benefits
- LED high luminous efficiency and long working life.
- High efficiency LED Driver with a wide range input voltage AC120-277V / 277-480V.
- Die-cast aluminum cooling design for better cooling and extended LED lifespan.
- Excellent optics design for improved light utilization and evenness.
- Photocell, Wireless Bluetooth system, and Motion sensor control available (Optional).
- 12Vdc auxiliary dimming with continuous 1-10V dimming type.
Specifications
- Selectable Wattages: 48W/72W/96W/120W
- Lumen Output: >7800 lm to >18550 lm
- Efficacy: >151 lm/W
- CCT: 3000K, 4000K, 5000K
- CRI: >70
- Input Voltage: AC 120-277V / 277-480V
- Beam Angle: Type IV: 94.3° X 76.8° (option)
- Power Factor: 0.90
- Driver Efficacy: 89%
- Lifespan: over 50,000 hrs
- Working Temperature: -22ºF ~ 113ºF
- Warranty: 5 year limited
Common Uses
Ideal for museums, art galleries, shopping malls, office buildings, walls and many other indoor or outdoor applications.
