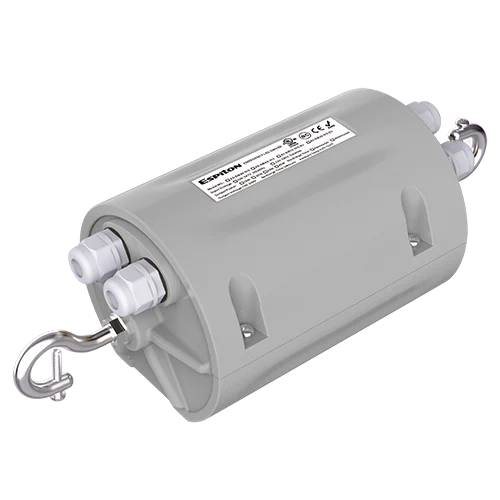

The INLINE LED EMERGENCY DRIVER is a robust solution for round high bay lighting applications, providing reliable emergency lighting with selectable wattage options.
Key Features and Benefits
- Durable painted diecast aluminum construction with mounting rings.
- Universal 100-347V input and 145VDC, 6A max output.
- Includes LED indicator light and push to test switch for compliance testing.
- Long-life, maintenance-free rechargeable Lithium battery.
- Multi-protection function: overcharge, over-discharge, output overload, short-circuit, and open load protection.
- 90-minute minimum emergency operating time with 24-hour maximum battery recharge time (48 hours for 60W).
- Self-Diagnostic feature for reliable operation that meets electrical and safety codes.
- Integral LED indicator light and test switch included.
Specifications
- Emergency wattage: 30W.
- Battery capacity: 14.4V / 5200mAh.
- Compatible with 9-240W LED lamp with 0-10V dimming or LED lamp less than 30W without dimming.
- UL Listed, meets UL924, NFPA 101, NEC, OSHA, Local and State codes.
- Certified to CEC under Title 20 regulations, IP69 Protection.
- 5-year warranty on all electronics and housing.
Common Uses
Ideal for use in commercial and industrial settings requiring reliable emergency lighting for round high bay fixtures.
