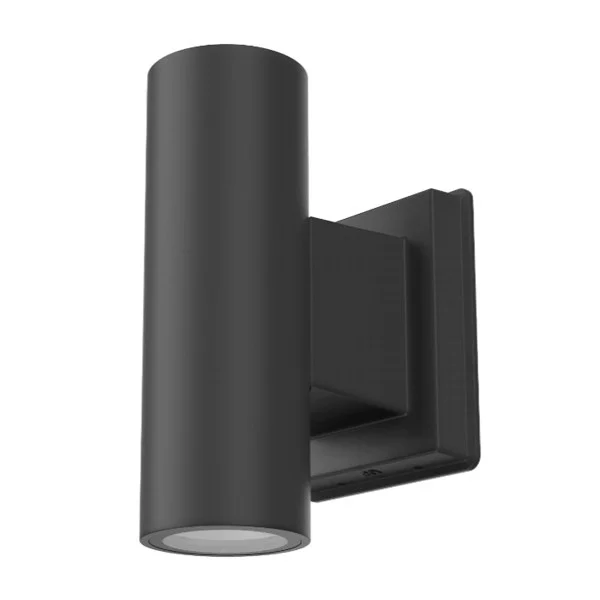

The Green Creative EXCYL Wall Mount Cylinder is a compact architectural outdoor fixture designed for flexible facade and perimeter illumination. As part of the EXCYL series, it combines selectable output, selectable CCT, and multiple beam distributions to simplify specification across varied project needs. Its robust die-cast construction and weather-sealed design make it a dependable choice for demanding exterior environments.
Key Features and Benefits
- SelectDrive technology enables field-selectable light output levels for easier on-site tuning.
- SelectKelvin switching provides 3000K, 3500K, or 4000K color temperature flexibility in one fixture.
- Integrated photocell supports automatic dusk-to-dawn style ON/OFF control and can be deactivated when needed.
- Architectural beam control with 15°, 25°, 40°, and 60° optics supports accent or broader wash effects.
- ETL Listed for wet locations and FCC compliant for confident code-oriented specification.
- Backed by a 5-year warranty
Specifications
- Lumen Output: 700/900/1200 (selectable package), up to 1150 delivered lumens depending on CCT/output setting
- Wattage: 6W/8W/10W selectable (3″ size)
- Voltage: 120-277V
- Frequency: 50/60Hz
- CRI: 80+
- Dimming: 0-10V, dims to 5% with low-end cutoff
- Power Factor: >0.9
- THD: <20%
- Rated Life: L70 60,000 hours (calculated L70 up to 135,000 hours)
- Ambient Operating Temperature: -40°F to 104°F (-40°C to 40°C)
- Ingress Protection: IP65
- Construction: Die-cast aluminum housing with tempered glass diffuser
Common Uses
Ideal for retail storefronts, hospitality exteriors, multifamily and residential facades, educational campuses, and healthcare buildings where durable, controllable architectural wall lighting is required.
