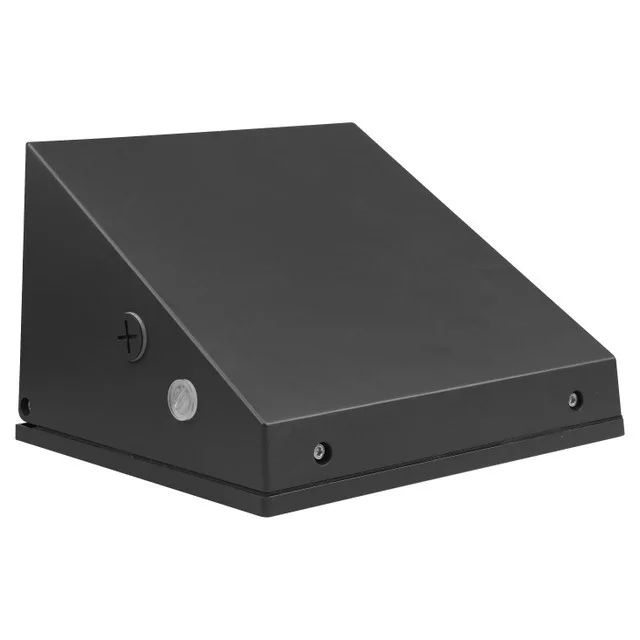

The ESL Vision Full Cutoff Wall Pack Series is a versatile exterior lighting solution designed for dependable perimeter and building-mounted illumination. This Gen 3 model combines selectable wattage and CCT in one fixture, helping contractors and facility teams simplify inventory while matching site requirements. Built for long service life and outdoor reliability, it is a strong fit across commercial and industrial projects.
Key Features and Benefits
- Field-adjustable output with 20W, 40W, or 60W settings for flexible light levels
- Selectable 3000K/4000K/5000K color temperatures to suit security, safety, or visual comfort goals
- Integrated on/off photocell for automatic dusk-to-dawn operation and energy savings
- 0-10V dimming to off supports advanced lighting controls and reduced operating costs
- IP65-rated construction and 6kV surge protection for dependable outdoor performance
- DLC Premium listed and UL certified design backed by a 5-year warranty
Specifications
- Lumen Output: up to 8,560
- Efficacy: up to 143 lm/W
- Input Voltage: 120-277VAC
- Frequency: 50/60Hz
- CRI: >80
- THD: <20%
- Power Factor: >0.9
- Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
- Beam Distribution: Type II
- Estimated L70 Life: 165,000 hours (TM-21)
- Dimensions: 10.65″ x 9.36″ x 6.85″
- Weight: 7.5 lbs
Common Uses
Ideal for commercial building exteriors, walkways, service entrances, loading areas, schools, warehouses, and general security lighting where controlled cutoff distribution is preferred.
