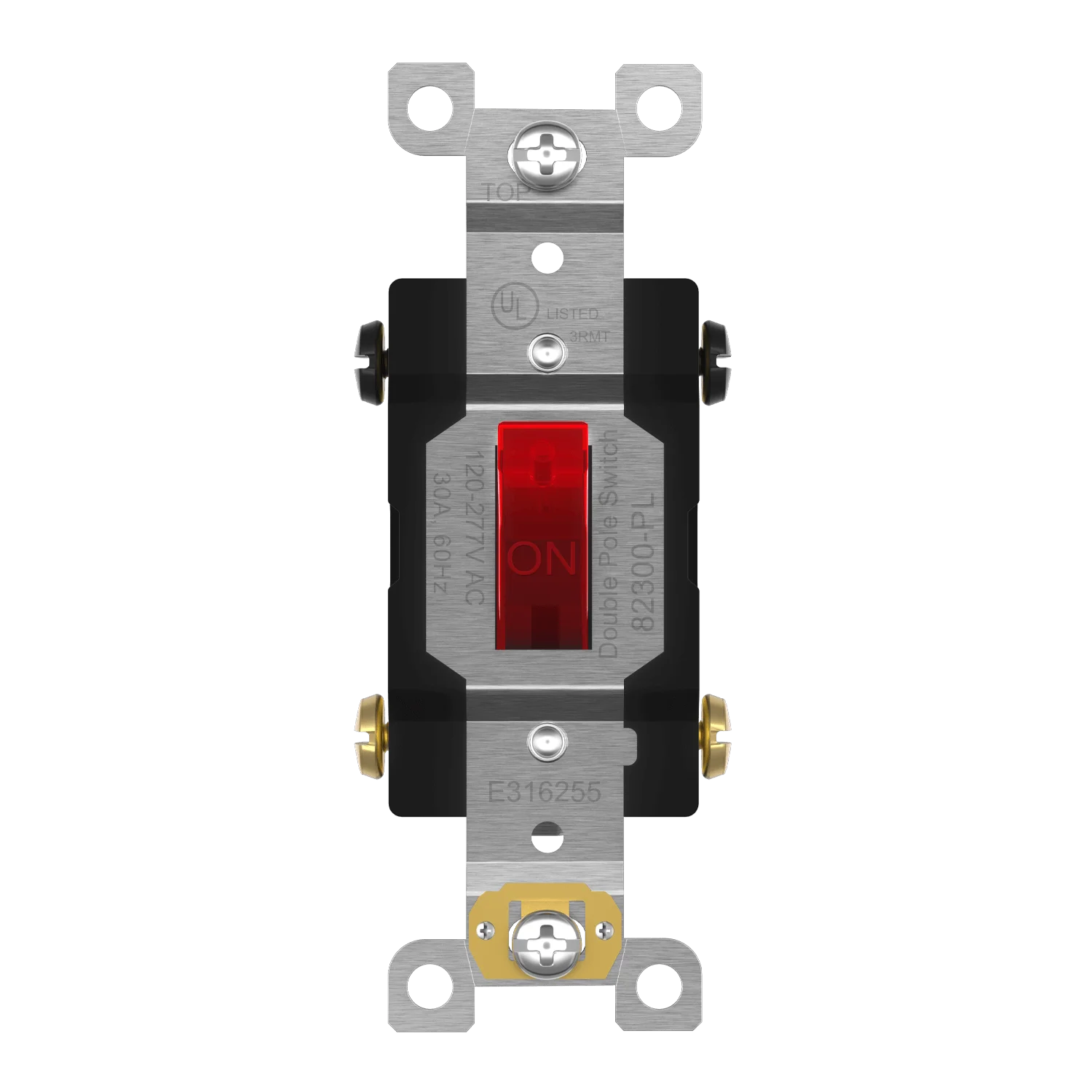

Commercial-Grade Double Pole Toggle Switch with Pilot Light, 30A, 120/277V

The Enerlites 82300-PL-R is a commercial-grade double pole toggle switch with a pilot light, designed for demanding applications where durability and performance are key. The switch features a robust exterior housing made from high-performing thermoplastics that can withstand harsh environments and features self-grounding mounting tabs. Impact-resistant and easy to install, Enerlites toggle switches are the ideal choice for any commercial or industrial setting.

Key Features and Benefits

• Commercial-grade double pole toggle switch with pilot light
• Robust thermoplastic housing
• Self-grounding mounting tabs
• Impact-resistant and easy to install
• Supports 30A, 120/277V AC
• Side wired terminals; use 12 or 14 AWG copper wires only
• Large head double-drive combination screws for fast wiring
• Removable yoke tabs for ideal alignment

Specifications

• Amperage: 30A
• Voltage: 120V AC / 277V AC
• Termination: Back and side wiring
• Actuator Material: Thermoplastic
• Operating Temperature: -104°F to 167°F
• Warranty: 2 Years

Common Uses

Fulfillment centers, factories, R&D buildings, warehouses, offices, retail stores, hotels, and restaurants.
