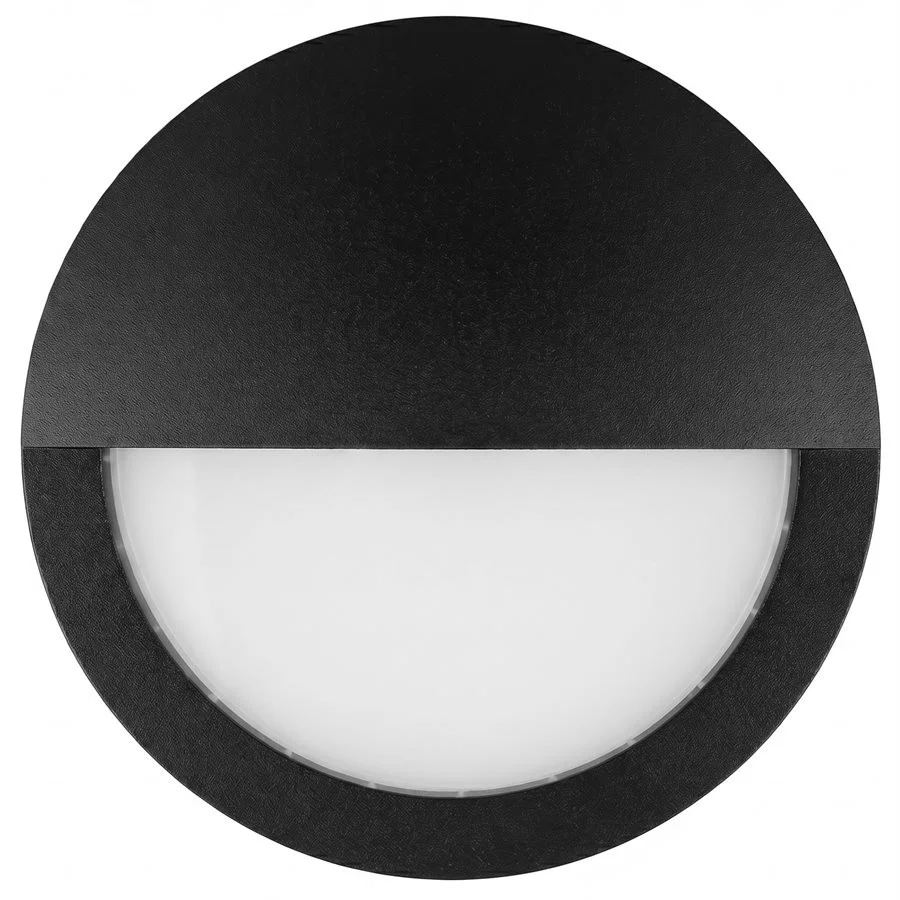

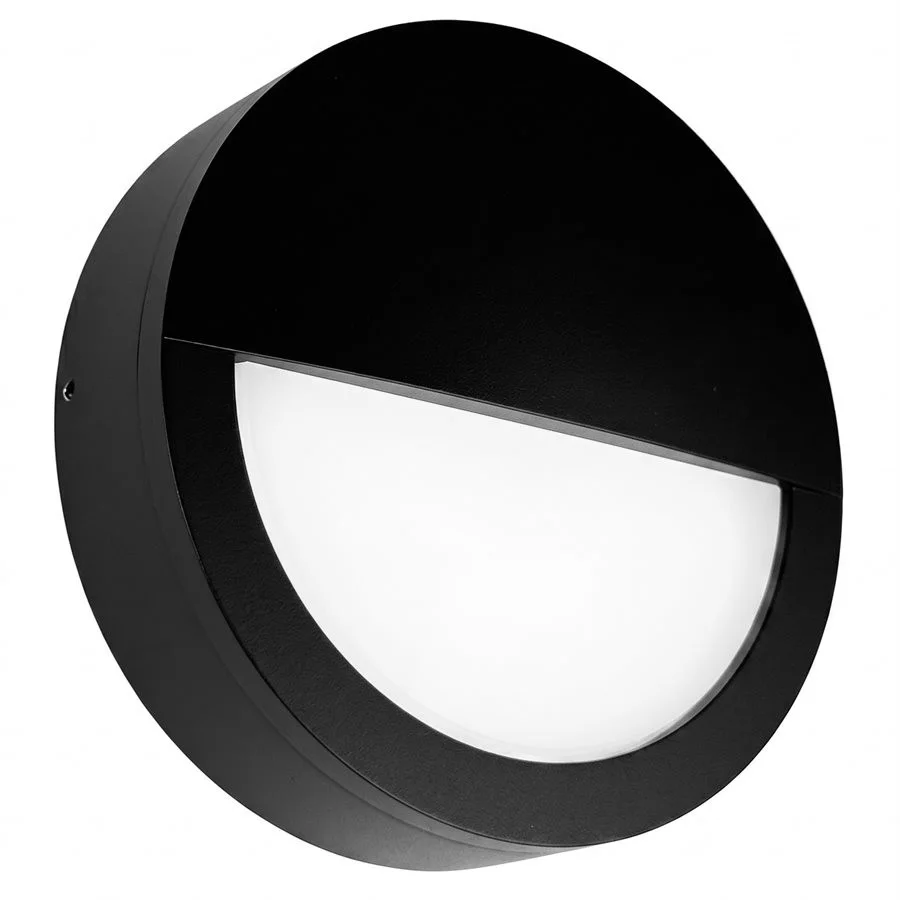

The Sunlite 85127-SU bulkhead fixture is a versatile outdoor lighting solution designed for dependable performance in demanding environments. As part of Sunlite’s selectable-output lineup, it combines field-adjustable wattage and CCT in one compact round housing to simplify stocking and installation.
Key Features and Benefits

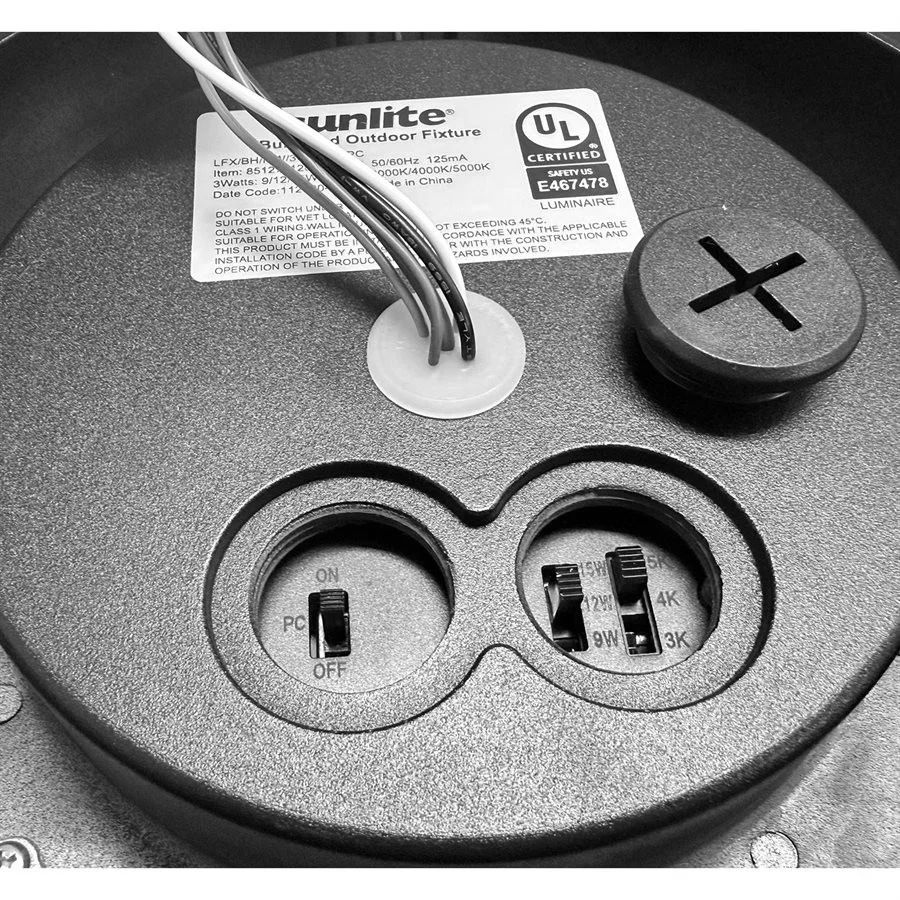

- 3-in-1 selectable light output and power settings help match brightness while reducing SKU complexity.
- CCT-selectable design (warm to daylight tones) supports visual comfort across different exterior applications.
- Built for harsh weather with wet-location listing and IP65 protection for reliable outdoor operation.
- 0-10V dimming capability enables energy savings and better lighting control.
- Long 50,000-hour life minimizes maintenance cycles and replacement costs.
- Backed by a 5-year warranty and UL Listed certification for added project confidence.
Specifications
- Lumen Output: 900|1200|1500
- Wattage: 9W|12W|15W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Beam Angle: 120°
- Power Factor: 0.9
- Rated Life (70 Hours): 50000
- Max Ambient Temperature: 45°C
- Operating Temperature: -40°C to 45°C
- Primary Material: Aluminum
- Lens Material: PC
- Finish / Color: Black|White lens
- Form Factor: Round
- IP Rating: IP65
- Mounting: Surface
- Dimensions: 7.75″ diameter, 2.5″ depth
Common Uses
Ideal for exterior corridors, building perimeters, entryways, utility areas, stairwells, and multi-family common spaces where durable, wet-rated surface lighting is required.
