Availability: 8 in stock

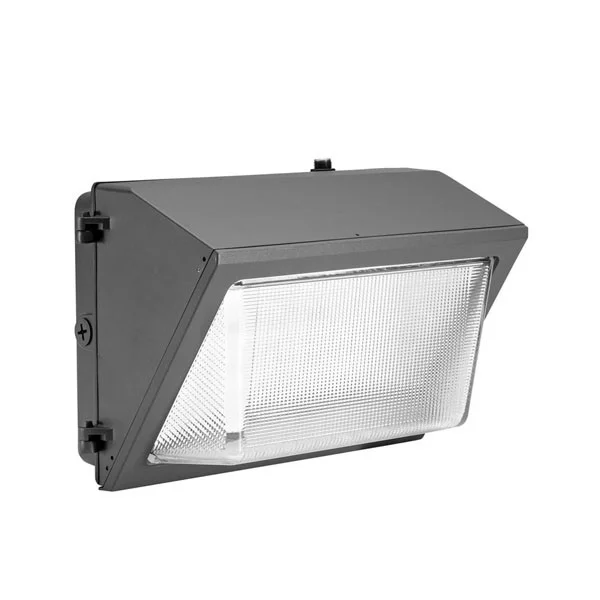

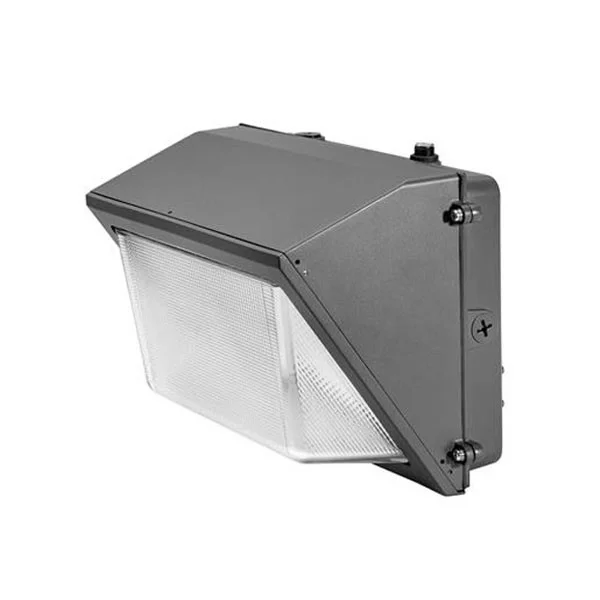

LED traditional wall pack, 80| 100| 120 watts power selectable, 11,200-16,800 lumens, available in 3000K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for wet locations, 5 years limited warranty.
ADVANCED TECHNOLOGY WRAPPED IN A TRADITIONAL FIXTURE
Topaz’s LED Traditional Wall Packs are an easy upgrade to energy efficient lighting, designed to cover the existing footprint of legacy HID fixtures. The integrated dusk-todawn photocell and 0-10V dimming driver provide light adjustability for substantial energy savings. Selectable 3 CCT color and power settings allow up to nine different configurations for added customization while also significantly reducing SKU count.
FEATURES

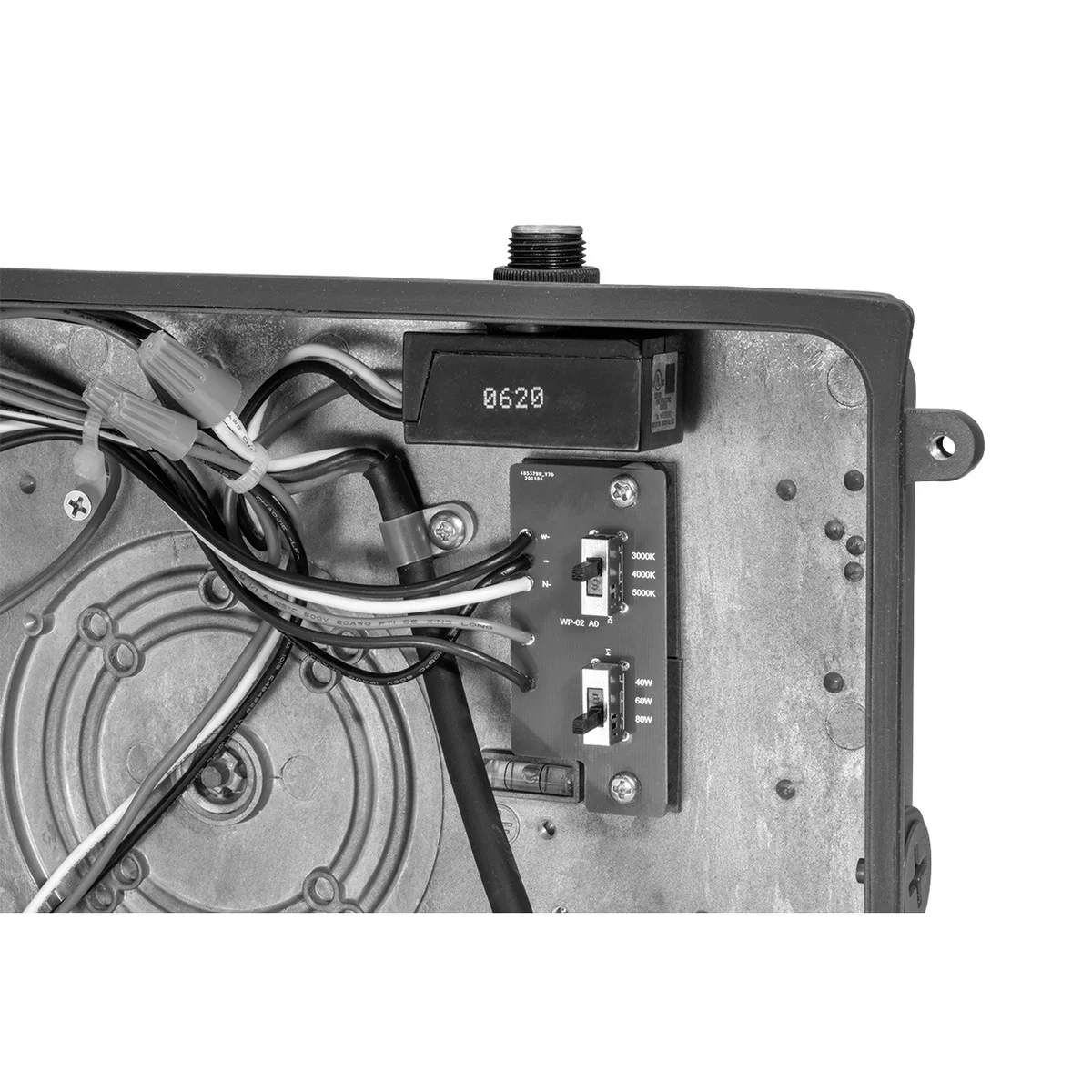

Choose from three wattage and three CCT choices for up to nine possible configurations

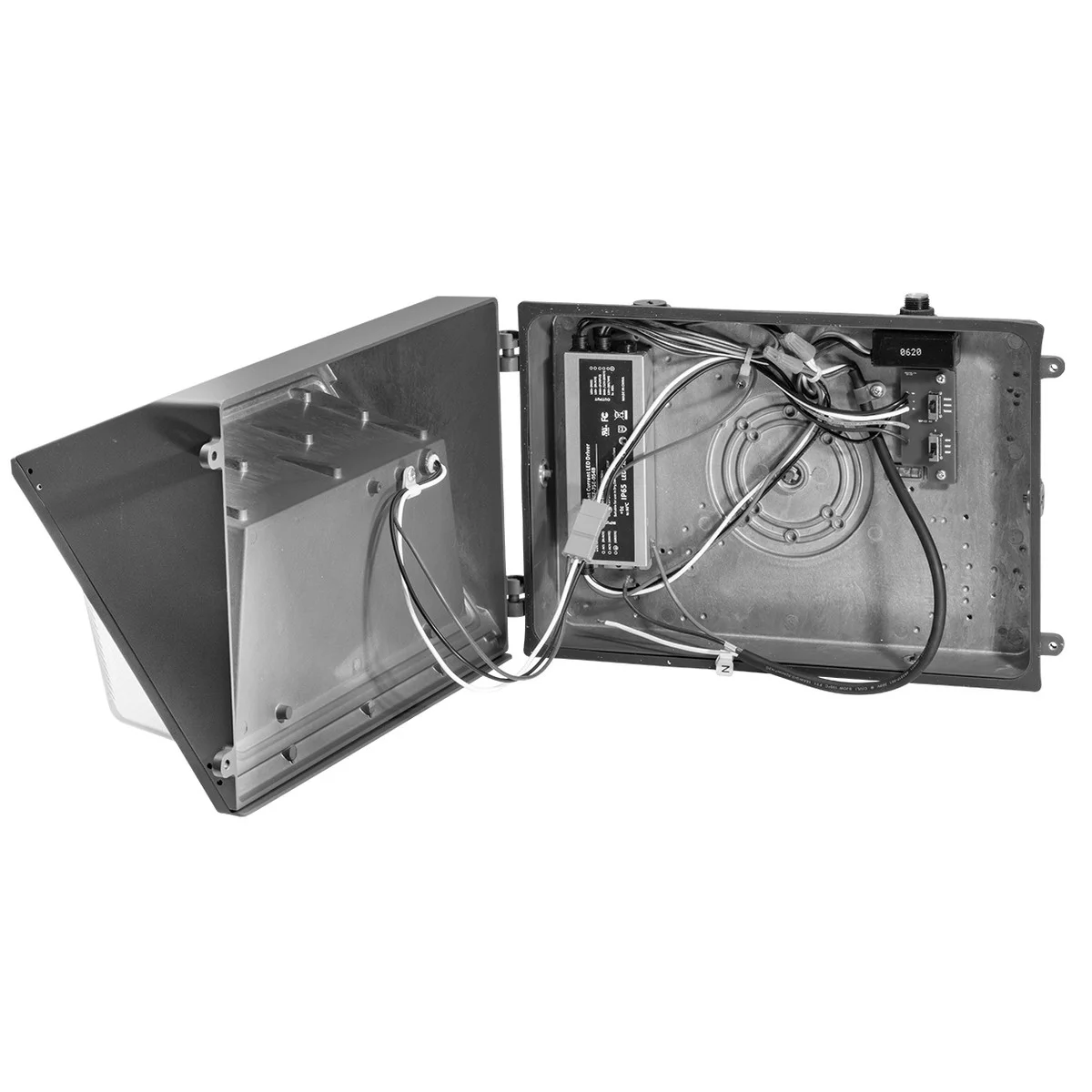

Durable aluminum housing with hinged lens frame, captive screws and ½” knockouts on each side
IK06 impact resistant glass lens
Semi-cut off light distribution designed to eliminate glare providing smooth, uniform light
Integrated dusk-to-dawn photocell
SUGGESTED APPLICATIONS
Commercial and residential
Security lighting
Perimeter lighting
Warehouses
Condos / apartments
Hotels
APPLICATIONS
Input Voltage, Frequency: 120-277V, 50/60Hz
Power Factor, THD %: >0.9, <25%
Dimmable: 0-10V down to 15%1
Efficacy: Up to 140 LPW
Beam Angle: 90°
Minimum CRI: 82
IES Distribution: Type IV
Functional Life (L70): 50,000 Hours
Location Rating: Wet
IP Rating: IP65
Ambient Operating Temperature: -40°F to 122°F

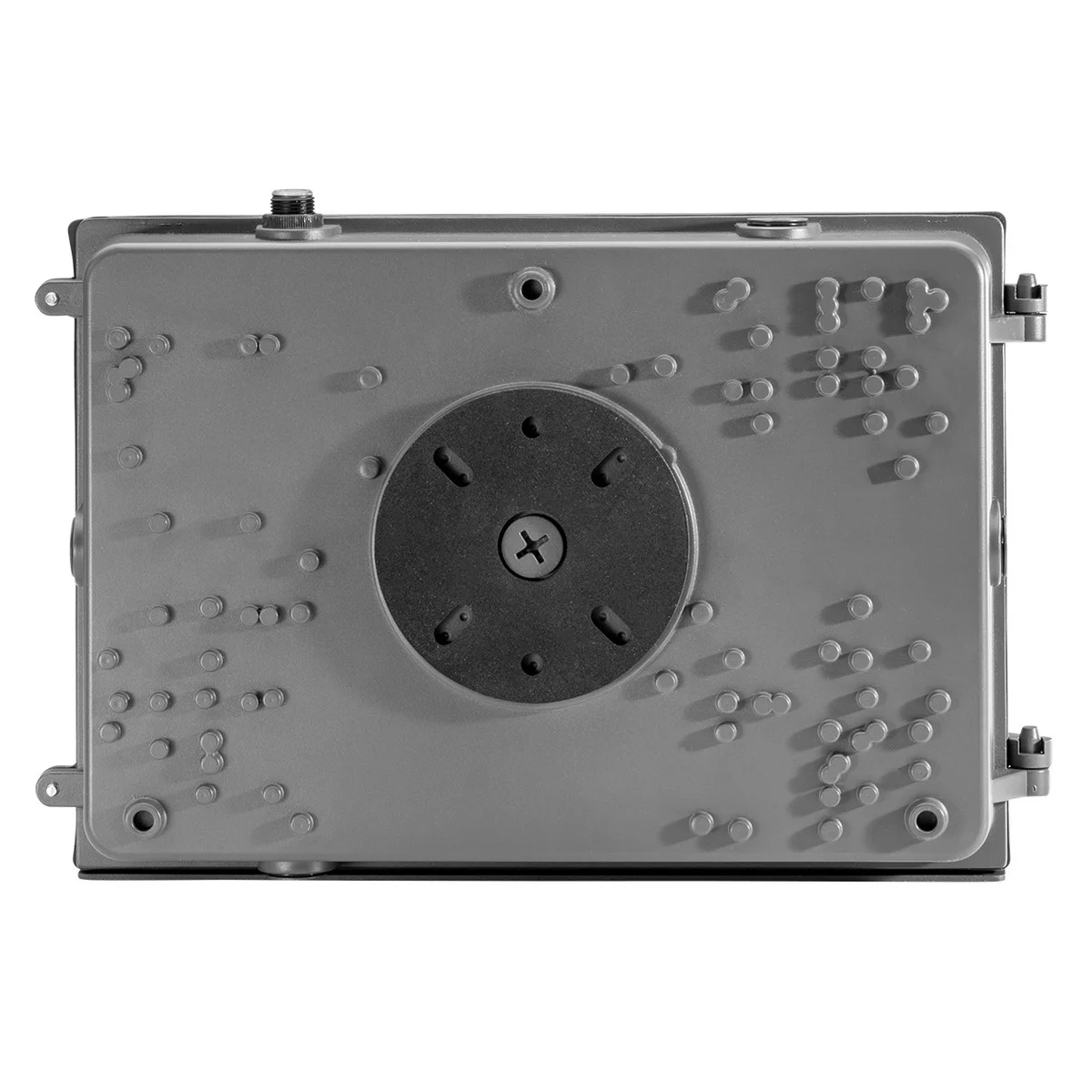

Mounting: Wall Mount, typical for mounting heights up to 30′
