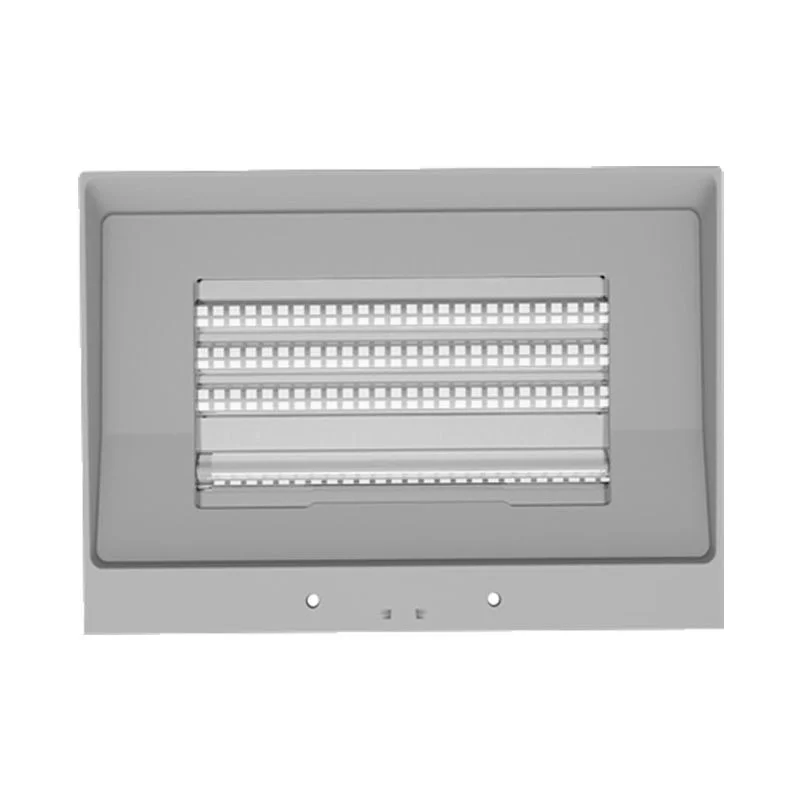

The Westgate WPMAX-40-60W-MCTP-SIL is a versatile LED wall pack from the WPMAX Series, designed for superior outdoor lighting with selectable wattage and color temperature. Its robust construction and advanced features make it a standout choice for demanding environments.
Key Features and Benefits
- Selectable wattage: 40W, 50W, or 60W for tailored light output
- Multi CCT: Easily switch between 3000K, 4000K, and 5000K
- High efficacy at 135 lumens per watt
- Adjustable beam throw: narrow, medium, or wide
- Prismatic borosilicate glass lens for optimal light diffusion
- Integrated photocell for automatic dusk-to-dawn operation
- Durable ADC12 aluminum heat sink with outdoor powder coating
- IP65 rated for wet locations and harsh weather
- 0-10V dimming compatibility
- Long 70,000-hour rated lifespan and 7-year warranty
Specifications
- Wattage: 40W | 50W | 60W
- Lumens: 5400lm | 6750lm | 8100lm
- Voltage: 120-277V AC
- Color Temperature: 3000K | 4000K | 5000K
- CRI: >70
- Dimensions: 8.3″(W) x 6.69″(H) x 5.43″(D)

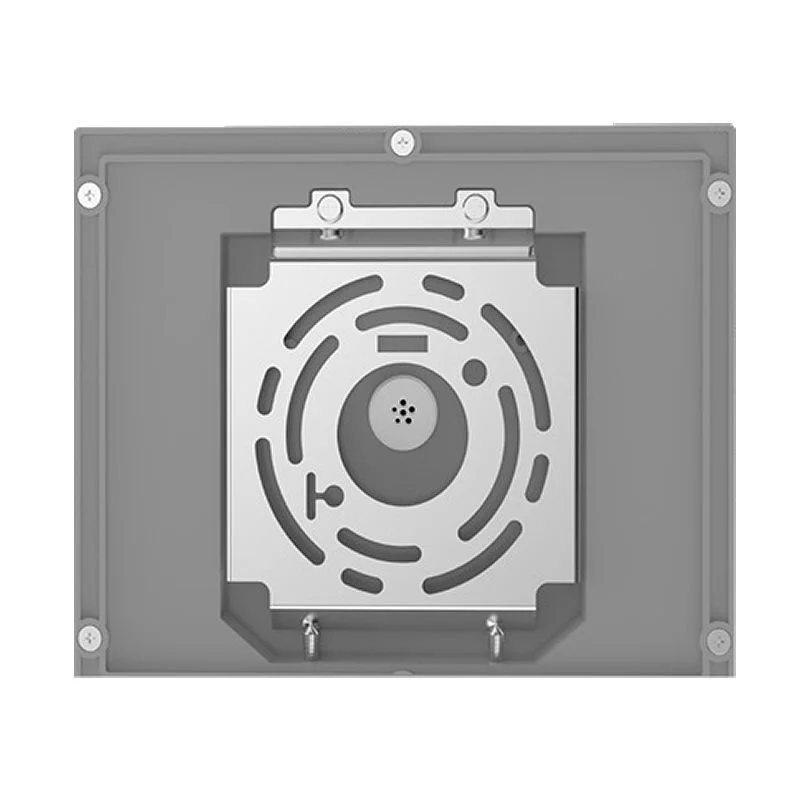

- Mounting: Wall mount
- Operating Temp: -40°F to 122°F
- IP65, Wet Location Rated
Common Uses
Perfect for building exteriors, entrances, courtyards, industrial facilities, hotels, and outdoor landscapes where reliable, adjustable, and energy-efficient lighting is essential.
