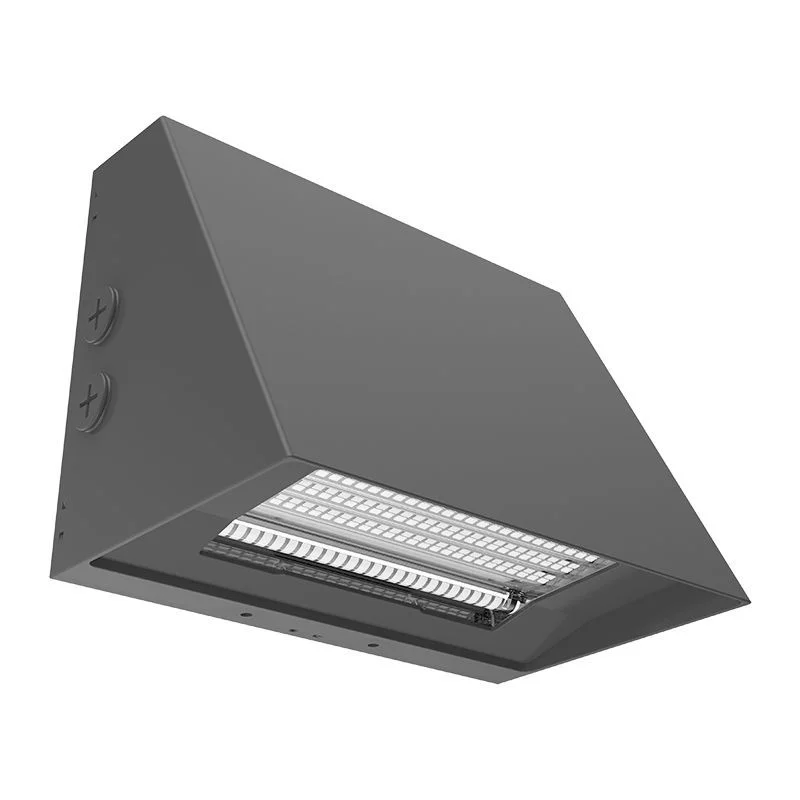

The Westgate WPMAX Series LED Wall Pack is a versatile and energy-efficient outdoor lighting solution, designed for maximum flexibility with selectable wattage and color temperature. Its prismatic borosilicate glass lens and robust ADC12 aluminum housing ensure durability and optimal light distribution, making it a standout in Westgate’s lineup for security and general area lighting.
Key Features and Benefits
- Selectable wattage: 40W, 50W, or 60W for tailored light output
- Multi CCT switch: 3000K, 4000K, or 5000K for customizable ambiance
- High efficacy at 135 lumens per watt for energy savings
- Adjustable throw (narrow, medium, wide) for precise coverage

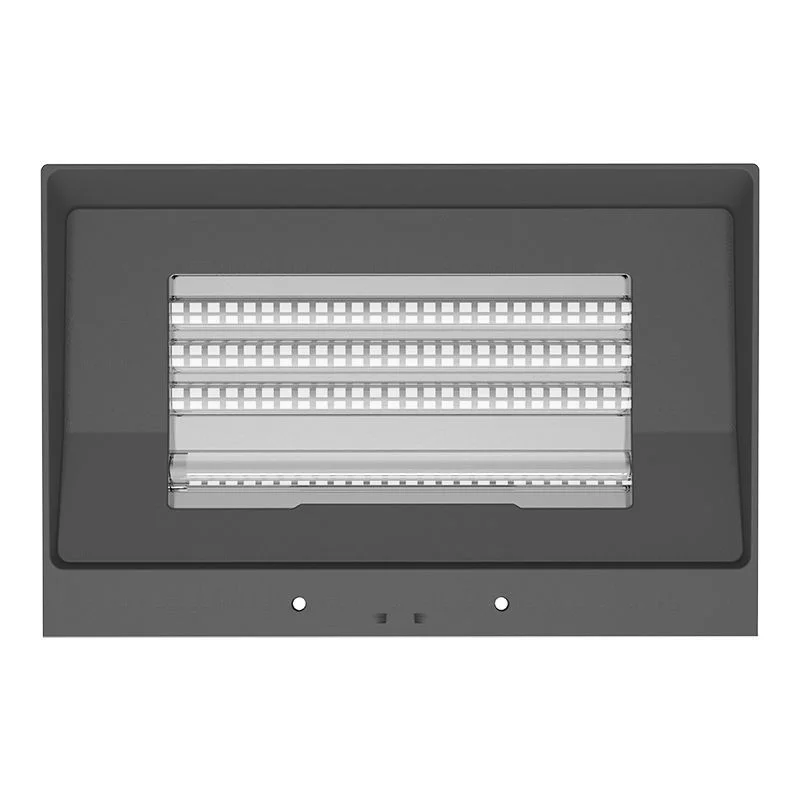

- Prismatic borosilicate glass lens reduces glare and enhances uniformity
- Integrated photocell for dusk-to-dawn operation
- IP65 rated for wet locations and outdoor durability
- Long 70,000-hour lifespan with 7-year warranty
- 0-10V dimming compatibility for advanced control
Specifications
- Lumen output: 5400lm (40W), 6750lm (50W), 8100lm (60W)
- Wattage: 40W|50W|60W
- Voltage: 120-277V AC
- Color Temperature: 3000K|4000K|5000K
- CRI: >70
- Dimensions: 8.3″(W) x 6.69″(H) x 5.43″(D)
- BUG Rating: B2-U3-G3
- Outdoor powder-coated ADC12 aluminum heat sink

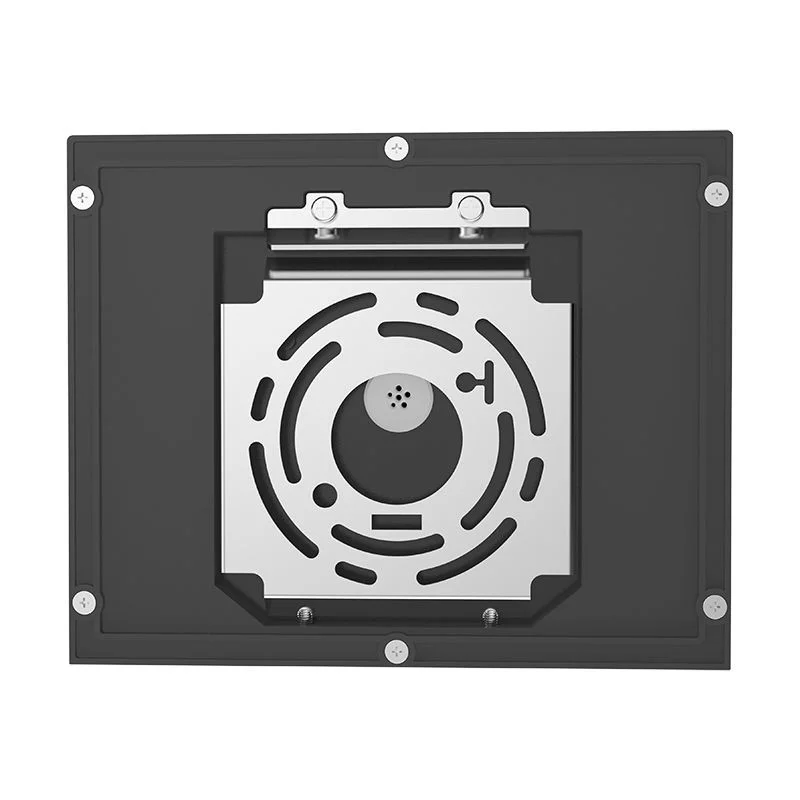

- Wall mount with same footprint as traditional HID wall packs
Common Uses
Ideal for building perimeters, entrances, courtyards, industrial exteriors, hotels, and outdoor landscapes where reliable, adjustable, and energy-efficient lighting is needed.
