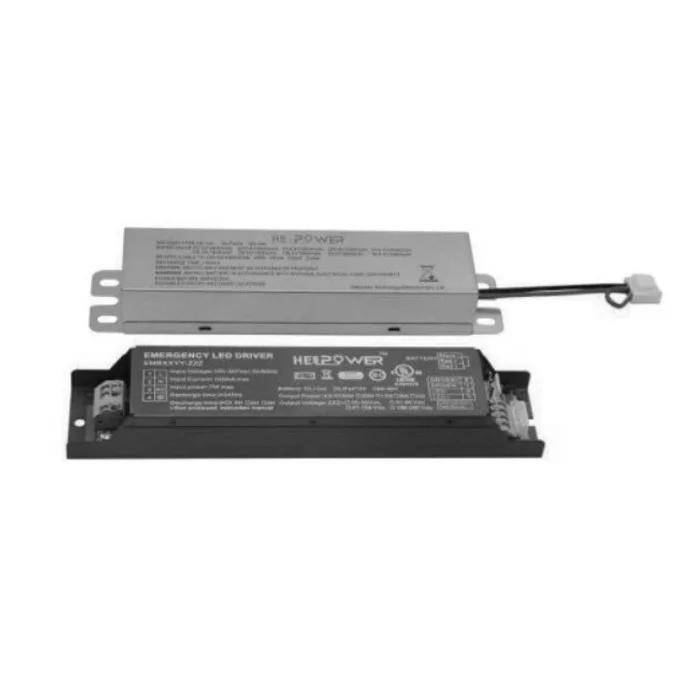

The ATG Electronics EMB Series Emergency LED Driver provides dependable backup power for LED fixtures during outages, helping maintain code-compliant emergency illumination. Designed for field or factory installation, this unit combines compact construction, self-testing intelligence, and broad voltage compatibility for commercial applications.
Key Features and Benefits
- Delivers constant emergency output power at 8W to keep critical lighting on during power loss
- Automatic self-test function performs monthly and annual diagnostic discharge checks
- Wide input compatibility supports 100-277Vac and 347Vac systems for retrofit flexibility
- Built-in battery over-temperature protection enhances long-term reliability and safety
- Certified to UL 924 and tested to CSA C22.2 No.141 for emergency lighting compliance
- Backed by a 5-year warranty for added project confidence
Specifications
- Model: EMB08YY-080
- Input Voltage: 100-277V|347V
- Frequency (Hz): 50|60
- Input Power Rating: 7W max
- Output Voltage Range: 51-80Vdc
- Emergency Power: 8W
- Recharge Time: 24 hours
- Discharge Time: ≥1.5 hours
- Surge Protection: Line-Neutral 3kV
- Ambient Temperature: Li-ion 0-50°C (32-122°F) | Ni-MH 5-65°C (41-149°F)
- Weight: 0.908 lbs
Common Uses
Ideal for commercial and institutional LED fixtures requiring emergency egress illumination, including offices, schools, healthcare facilities, retail spaces, and multi-use buildings where reliable backup lighting is essential.
