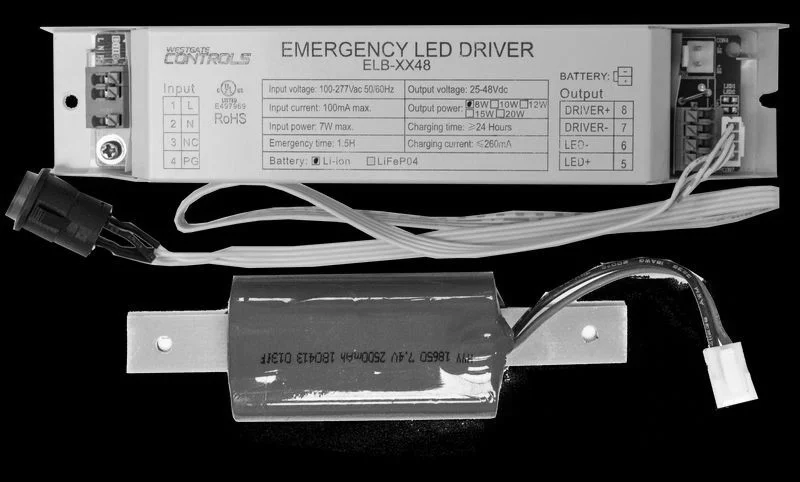

Compact Emergency LED Driver with universal input voltage, 48V output, and 1.5-hour emergency time. Ideal for backup lighting solutions.
Key Features and Benefits
- Universal Input Voltage: 100-277Vac, 50/60Hz
- Output: 160-320mA, 25-48Vdc, 8W max
- Emergency Time: 1.5 hours
- Full Warranty: 3 Years
- Battery: Li-ion, 7.4V/2500mAH
- Battery Protections: Overcharge, over-discharge, short circuit
- RoHS Compliant
- External lithium battery with 500 cycle life
Specifications
- Dimensions: 7.4” x 1.5” x 1.1”
- Weight: 0.63 lbs (0.29 kg)
- Temperature Rating: 0°C to 40°C (32°F to 104°F)
- Meets CSA C22.2 No. 141 UL 924 standards
Common Uses
Ideal for emergency lighting in commercial, industrial, and residential settings where backup illumination is crucial.
