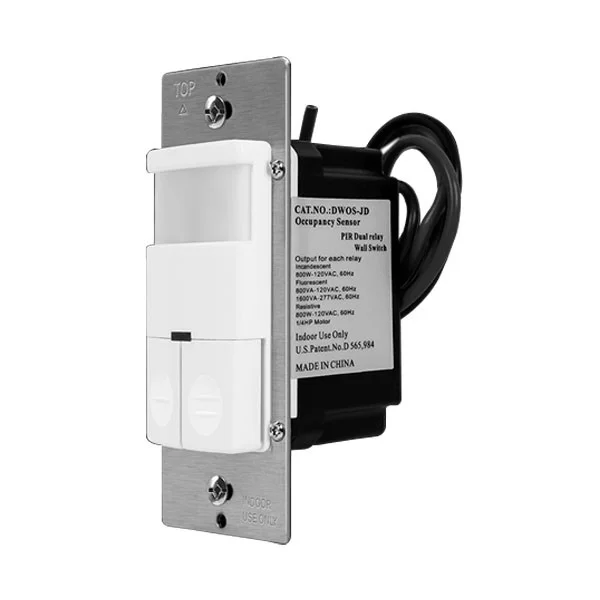

180° PIR Occupancy/Vacancy Motion Sensor Wall Switch with Dual Relay

180° PIR occupancy/vacancy motion sensor wall switch with dual relay, secured ground wire required, available in ivory or white finish, 120/277Vac, 60 Hz voltage, 15 sec to 30 mins time delay, zero crossing for long relay life, adjustable sensitivity settings, light level is adjustable.
Minimum order qty. of 10 pcs.
DESCRIPTION
Replaces standard switches for control of lighting and/ or fans. Contains two relays to control two independent lighting loads or circuits. The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically.
FEATURES

Turn lights ON/OFF automatically (Occupancy Mode)
Manual ON / automatically OFF (Vacancy Mode)
Time delay is adjustable from 15 seconds (test mode) to 30 minutes
Secured ground wire required
Zero Crossing for long relay life
Adjustable sensitivity settings
Light level is adjustable

SPECIFICATIONS

Voltage: 120/277Vac, 60 Hz
Incandescent: 800W
Fluorescent: 800VA@120VAC, 1600VA@277VAC
LED/CFL: 150W
Motor: 1/4 HP
Time delay: 15 Sec to 30 Mins
Light level: 30 Lux – Daylight
Operating Temperature: 32 F to 131 F
