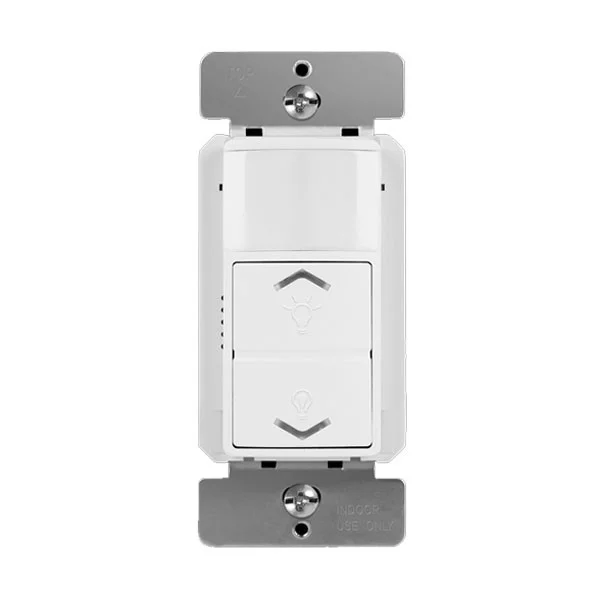

180° PIR Motion Sensor with 0-10V Dimmer Wall Switch

180° PIR motion sensor with 0-10V dimmer wall switch, white finish, 120-277VAC, 60 Hz voltage, 15 sec to 30 mins time delay, adjustable light level settings, 0-10VDC dimming, interchangeable face cover.
DESCRIPTION
The Enerlites 0-10V passive infrared sensor and dimming switch works by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns off automatically. This product has one relay (equal to a Single Pole Switch).
FEATURES

Turn lights ON/OFF automatically (Occupancy Mode)
Manual ON / Auto OFF (Vacancy Mode)
Time delay is adjustable from 15 seconds (test mode) to 30 minutes
Neutral wire required
Adjustable sensitivity settings
Adjustable light level settings
0-10VDC dimming
Interchangeable face cover

USAGE

Conference rooms
Offices
Classrooms

PACKAGING

UPC: 883951452438
Retail Box: 5”x3”x2.25”
Quantity: 1
Master Pack: 14”x11” x12.25”
Quantity: 40

SPECIFICATIONS

Voltage: 120-277VAC, 60 Hz
Load Rating: up to 30mA
IEC 60929 Ballast/
Drivers Current Draw: 2mA Maximum
Motor: 1/8 HP
Time Delay: 15 Sec to 30 Mins
Light Level: 30 Lux – Daylight
Operation Temperature: 32° F – 104° F

TESTING & CODE COMPLIANCE

UL/CUL Listed
California Title 24
