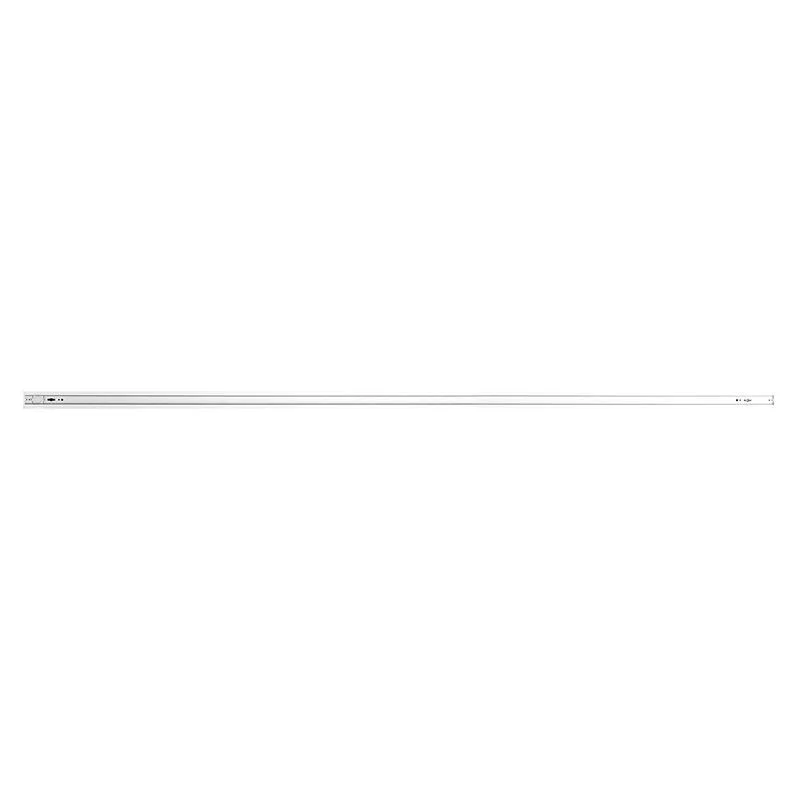

Customizable Linear LED Lighting for Modern Spaces
Discover the versatility and superior performance of the WM-SCX2-8FT-80W-MCT4-D Linear Lighting system. Tailor your lighting with customizable length, color temperature, and mounting options to perfectly fit any space. Whether you need suspended, surface mounted, or recessed lighting, this fixture meets diverse lighting needs, making it ideal for storage rooms, offices, conference rooms, retail areas, reception areas, hallways, educational facilities, hotels, and restaurants.
DESIGN FEATURES
- LED Superior Architectural Lights
- Seamless Linkable Linear Lighting System
- Opal Polycarbonate Lens-Direct (DOWN) Lighting
- Optional Recessed & Wall Mounting Kits Available
- Optional Louver Version Lens Available
- MCT: Multi-Color Temperature (Selectable Switch Inside Fixture)
ELECTRICAL
- Voltage: 120-277VAC 50/60Hz
- Wattage: 80W
- Power Factor: >0.95
- LPW: 100/ 106/ 107/ 104
- Total Harmonic Distortion: ≤20%
MECHANICAL
- Low Profile Modern Design
- Aluminum Housing With Matte White Finish
- Custom Colors Available
- Lens Snaps into Housing
- Different Connections Via T/L/X Joints on Both Ends
- Mounting Options: Surface, Suspended, Wall, Recessed
- IP Rating: IP54
- Operating Temperature: -13°F~104°F
- Adjustable Suspension Brackets Provided on Top of The Fixtures
- 5-Year Warranty
LIGHTING
- Dimmable: 0~10V Dimming
- Total Lumens: 8008LM/ 8538LM/ 8537LM/ 8358LM
- Color Temperatures: 3000K/3500K/4000K/5000K
- Multi-CCT (Selectable Switch Inside Fixture)
- Color Rendering Index: CRI ≥80
- Up Light Option Available
- 50,000 Hours Rated Life
- Beam Angle: 104.8°(H)x100.5°(V)
APPLICATIONS
- Perfect for offices, hotels, corridors, salons, libraries, meeting rooms, conference halls, and other modern lighting needs
- Suitable for any indoor applications
