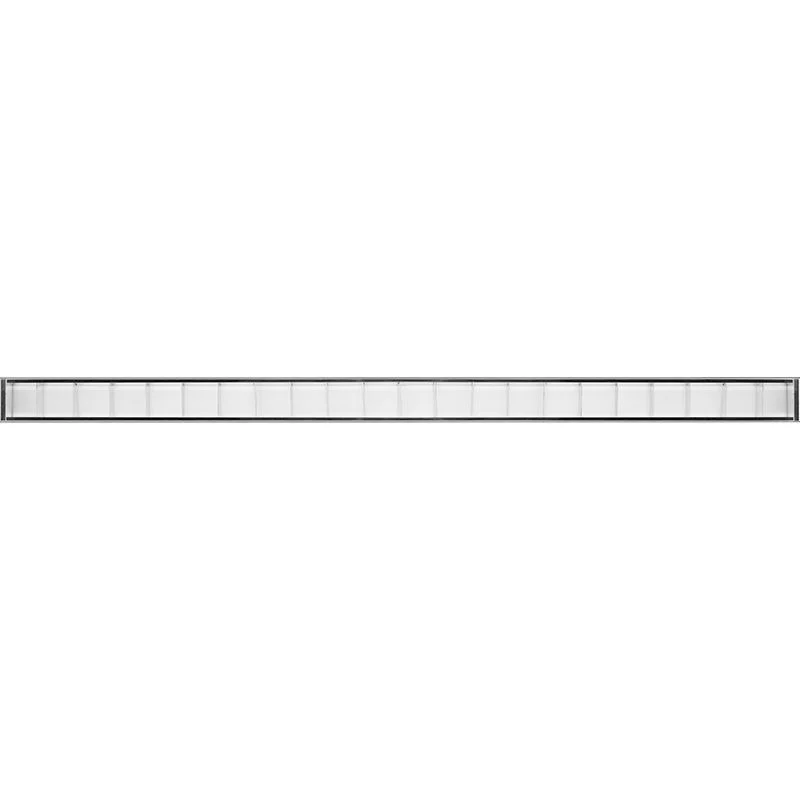

The Westgate SCX Series 4′ linear fixture is a modern architectural lighting solution designed for clean lines, visual comfort, and flexible installation. Built for commercial interiors, this 40W model combines selectable CCT performance with efficient output to support a wide range of professional spaces.
Key Features and Benefits
- Selectable 4-CCT design (3000K/3500K/4000K/5000K) adapts lighting tone to different tasks and environments
- 0-10V dimming capability enables smooth light level control for energy savings and occupant comfort
- Polished aluminum louver lens helps deliver controlled direct illumination with reduced glare
- IP54-rated construction supports dependable operation in demanding indoor conditions
- UL Listed with a 5-year warranty for confidence in code compliance and long-term reliability
Specifications
- Lumen Output: 4400
- Wattage: 40W
- Voltage: 120-277V
- Frequency: 50/60
- CRI: 80
- Efficacy: 110 lm/W
- Power Factor: 0.95
- THD: 20
- Beam Angle: 104.8°(H) x 100.5°(V)
- BUG Rating: B2-U3-G1
- Rated Life (L70): 50000 hours
- Operating Temperature: -13°F to 104°F
- Dimensions: 47 2/5″(L) x 2 6/8″(W) x 3 3/8″(H)
Common Uses
Ideal for offices, conference rooms, lobbies, hallways, libraries, hospitality spaces, retail locations, and other indoor commercial applications requiring sleek architectural linear lighting.
