The Westgate SCX-T-RGBWW is a T-shaped linear LED module from the innovative SCX Series, designed for seamless architectural integration and modern lighting layouts. This module features selectable RGB+WW color temperatures (3000K, 3500K, 4000K, 5000K), built-in LEDs, and a sleek low-profile design, making it ideal for creative commercial and high-end residential applications.
Key Features and Benefits
- Selectable RGB+WW color temperature for versatile ambiance
- Seamless linkable system for custom layouts
- Modern, low-profile aluminum housing with matte white finish
- Opal polycarbonate lens for even, glare-free illumination
- Multiple mounting options: recessed, surface, wall, suspended, and T-bar
- 0-10V dimmable for precise light control
- Long 50,000-hour rated life reduces maintenance
- Bluetooth app compatibility for smart control
- High efficacy and energy efficiency
- CRI ≥ 80 for accurate color rendering
- 5-year warranty for peace of mind
Specifications
- Color Temperature: 3000K|3500K|4000K|5000K|RGB
- CRI: ≥80

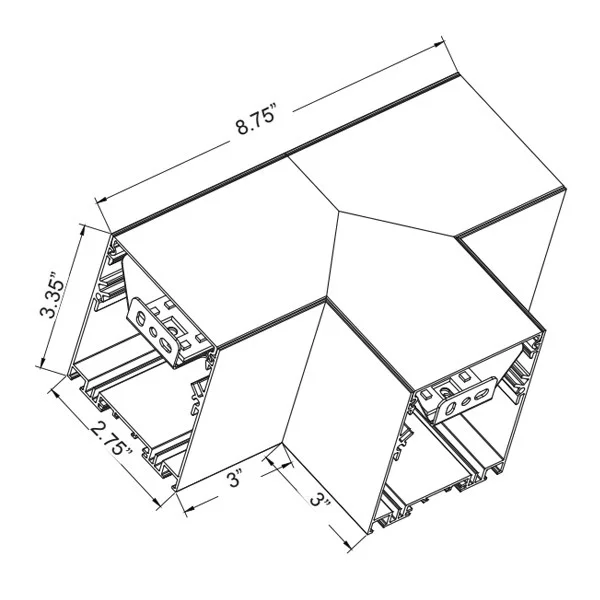

- Dimensions: 8.75″ x 3″ x 3″ x 3.35″ x 2.75″
- Beam Angle: 104.8°(H) x 100.5°(V)
- Power Factor: >0.95
- IP54 rated for dust and splash resistance
Common Uses
Perfect for offices, hotels, corridors, lobbies, conference rooms, retail spaces, educational facilities, and any indoor space requiring modern, customizable linear lighting.
