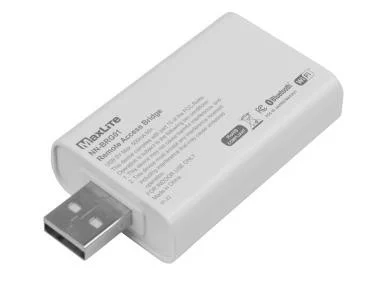

Compact c-Max Network Bridge with BLE and WIFI hardware connection. Powered by USB-A port. Ideal for occupancy and daylight harvesting sensors. 5-year warranty.
Key Features and Benefits
- Easy commissioning via c-Max App (IOS and Android)
- 1 NN-BRG01 device is required per zone
- BLE Wifi bridge to connect with 3rd party systems
- Powered by plugging into any USB-A port
- Based on Modbus communication protocol
- Data send and receive commands using REST API
- Support mainstream WIFI encryption, such as WPA2_PSK
- Support both DHCP and Static IP assignment
- 5 Year Warranty
Specifications
- Operating Voltage: Powered by USB-A 5V charging port
- Flame Rating: UL 94 V-0
- Control Technology: Bluetooth / WIFI
- BLE Wireless Standard: BLE IEEE 802.15.1
- BLE Wireless Frequency: 2.4GHz
- Programming: c-Max Mobile App (IOS and Android)
- Cybersecurity: UL1376 Gold Rating
- Encryption: AES 128-bit
- Mesh Range: 100ft node-to-node and 50ft node-to-device (Commissioning)
- WIFI Range: 60ft
- FCC: FCC ID: 2AZRDCMAX2021
- Operating Temperature: -22°F to 131°F / -30°C to 55°C
- Warranty: 5 years
- Color: White
- Weight (No Battery): 1 oz
Common Uses
Ideal for integration with occupancy and daylight harvesting sensors in various commercial and industrial applications.
