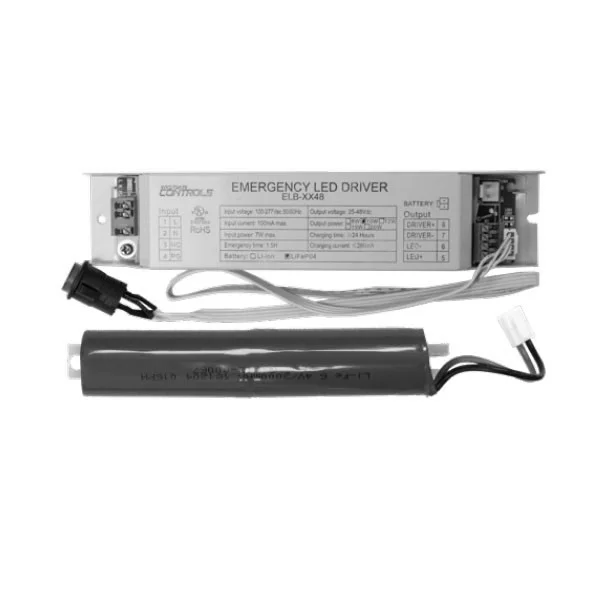

A compact Emergency LED Driver with 100-277Vac universal input voltage, offering selectable emergency operation time of 1.5 hours.
Key Features and Benefits
- Universal input voltage: 100-277Vac, 50/60Hz
- Emergency operation time of 1.5 hours
- Illuminated test switch and indicator light
- Overcharge, overdischarge, and short circuit protection
- External LiFePO4 battery with 500 cycles
- RoHS compliant
- Compact dimensions: 7.4” x 1.5” x 1.1”
Specifications
- Input current: 100mA max.
- Input power rating: 7.0W max.
- Output current and voltage: 200-400mA, 25-48Vdc
- Output power: 10W max.
- Full warranty: 3 years
- Temperature rating: Ambient 0°C to 50°C (32°F to 122°F)
- Weight: 0.83 lbs (0.38 kg)
Common Uses
Ideal for use in commercial and industrial emergency lighting applications, ensuring illumination during power outages.
