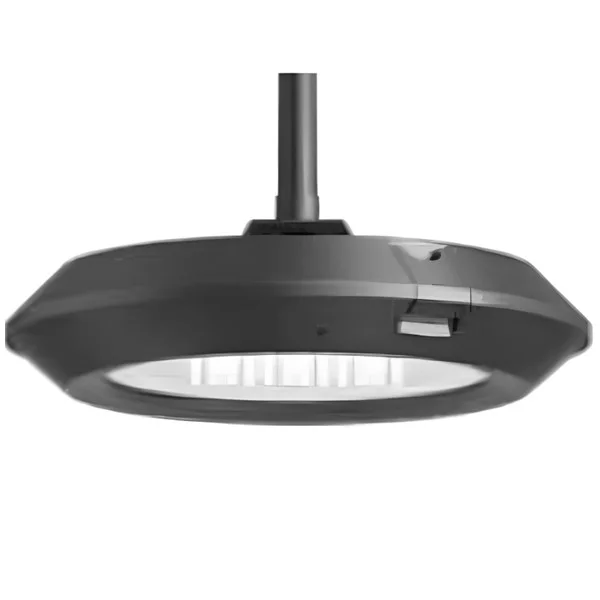

The Westgate GPX Series post disk light is a versatile outdoor area and flood lighting solution designed for broad site illumination. Built for commercial and municipal projects, this pipe-mount fixture combines field-selectable wattage and CCT in one rugged platform. Its high-output performance and weather-resistant construction make it a dependable choice across demanding exterior environments.
Key Features and Benefits
- Field-adjustable power and color temperature for flexible on-site lighting design
- High efficacy performance helps reduce energy use while maintaining strong illumination
- IP66-rated, wet-location-ready housing supports reliable outdoor operation
- 0-10V dimming compatibility enables smoother control and energy savings
- Durable powder-coated aluminum body resists corrosion in harsh conditions
- Backed by a 7-year manufacturer warranty for long-term confidence
Specifications
- Lumen Output: 13500/18000/22500
- Wattage: 90W/120W/150W
- Input Voltage: 120-277V AC, 50/60Hz
- Color Temperature: 3000K/4000K/5000K
- CRI: >70
- Power Factor: 0.95
- Beam Angle: 150° x 150°
- Distribution: Type V
- BUG Rating: B1-U1-G0
- Rated Life: 70000 hours
- Operating Temperature: -86°F to 122°F
- Mounting: Pipe mount with 3/4″ NPT threaded hub
- Dimensions: 15 3/4″ diameter x 3 1/2″ height
Common Uses
Ideal for parking areas, campuses, airports, auto dealerships, retail centers, hospitality sites, public venues, courtyards, pedestrian streets, and industrial parks where wide, uniform outdoor coverage is required.
