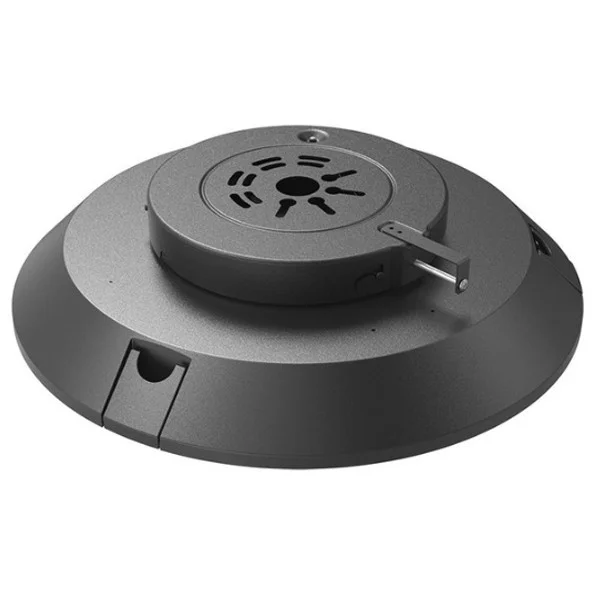

The Westgate GPX Series post disk light is a versatile outdoor area and flood solution designed for ceiling-mounted applications. Built for demanding commercial environments, this fixture combines field-selectable wattage and CCT in one housing to simplify inventory and project flexibility. As part of Westgate’s outdoor lineup, it delivers high-output performance with durable weather-ready construction.
Key Features and Benefits
- Field-adjustable output with selectable 90W, 120W, or 150W settings for tailored light levels
- Selectable 3000K, 4000K, and 5000K color temperatures to match site ambiance and visibility needs
- Rugged aluminum housing with outdoor powder coat and IP66 protection for long-term exterior reliability
- Smooth 0-10V dimming support for energy savings and lighting control integration
- Type V optic with broad 150° x 150° beam spread for uniform area illumination
- ETL Listed and backed by a 7-year warranty for confidence in commercial installations
Specifications
- Lumen Output: 13500 | 18000 | 22500
- Voltage: 120-277V
- Frequency: 50/60Hz
- Power Factor: 0.95
- Efficacy: 150 lm/W
- CRI: >70
- Beam Angle: 150° x 150°
- Distribution Type: Type V
- Rated Life: 70000 hours
- Operating Temperature: -86°F to 122°F
- EPA Rating: 1.23 sq ft
- Dimensions: 15.75″ diameter x 5″ height
- BUG Rating: B1-U1-G0
Common Uses
Ideal for parking areas, airports, auto dealerships, campuses, municipal facilities, gas stations, retail centers, courtyards, pedestrian streets, and other outdoor commercial or public venues requiring wide, dependable illumination.
