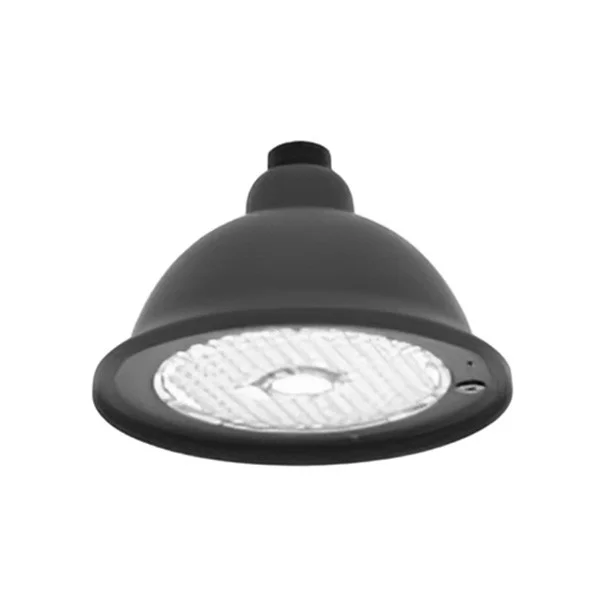

The Westgate DAB Series Solar Designer Area Bell Light System is a stylish, off-grid outdoor fixture built for reliable area illumination in public and commercial environments. This 16″ model combines high-output LED performance with selectable color temperature and rugged construction, making it a standout option in the DAB lineup for energy-conscious projects.
Key Features and Benefits
- High-performance output up to 8000 lumens with strong 160 lm/W efficacy for efficient site lighting
- Selectable 3000K/4000K/5000K CCT and internal multi-power capability for flexible field configuration
- IP66 wet-location design with corrosion-resistant outdoor powder-coated aluminum housing for long-term durability
- Backlight control support with B3-U0-G2 BUG rating to help reduce uplight and improve visual comfort
- Long 70,000-hour life and a 7-year warranty for reduced maintenance and dependable operation
Specifications
- Wattage: 50W
- Input Voltage: 120-277V
- Power Factor: 0.9
- THD: <20%
- Lumen Output: 8000lm max
- Beam Distribution: Type V (150° x 150°)
- CRI: >70
- Operating Temperature: -40°F to 104°F
- Battery Type: LiFePO4
- Battery Charge Time: 6-12 hours (sunlight dependent)
- Runtime on Full Charge: up to 10 hours (sunlight dependent)
- Fixture Size: 16 1/2″(W) x 12″(H)
Common Uses
Ideal for gardens, amusement parks, residential quarters, industrial parks, pedestrian streets, walkways, and other outdoor public areas requiring dependable solar-powered illumination.
