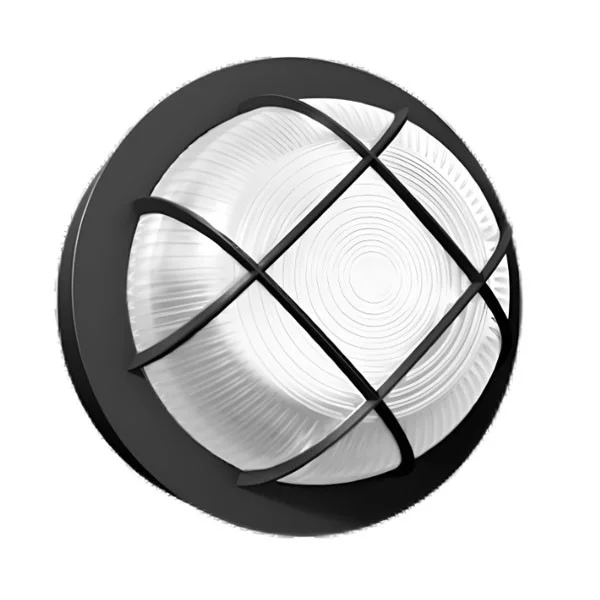

The Westgate BKRD Series round bulkhead is a versatile outdoor fixture designed for dependable perimeter and wall-mounted illumination. With selectable wattage and color temperature plus an integrated photocell, it delivers adaptable performance across commercial and residential exterior applications. This model is a key choice in the lineup for projects needing durability, energy savings, and simple field adjustability.
Key Features and Benefits
- Built-in photocell enables automatic dusk-to-dawn operation for improved energy control
- Field-selectable power and CCT allow one fixture to cover multiple lighting requirements
- IP65-rated, waterproof-sealed lens design supports reliable outdoor use
- Die-cast aluminum back plate and polycarbonate/glass lens construction enhance durability
- 0-10V dimming compatibility supports flexible light level control
- Backed by a 7-year warranty for long-term confidence
Specifications
- Voltage: 120-277V
- Wattage: 9W/12W/15W selectable
- Lumen Output: 765/1020/1275
- Color Temperature: 3000K/4000K/5000K selectable
- CRI: 70
- Efficacy: 85 lm/W
- Beam Angle: 100°
- Power Factor: >0.90
- Rated Life: 70000 hours
- Operating Temperature: -4°F to +113°F
- BUG Rating: B1-U3-G1
- Dimensions: 4.5″(H) x 7.68″(W) x 1.67″(D)
Common Uses
Ideal for entrance lighting, courtyards, building perimeters, hotel exteriors, industrial facilities, and general outdoor wall lighting where robust weather resistance and selectable output are required.
