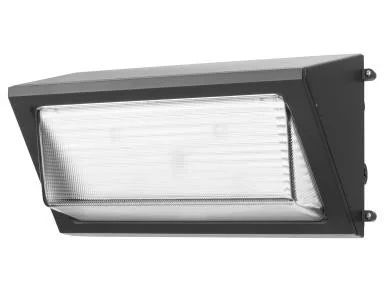

The WallMax Compact Open Face Series is a versatile and cost-effective solution for general wall lighting applications. It features selectable wattage and color temperature, making it adaptable for various environments. Its rugged construction and integral photocell enhance its functionality, while the option for battery backup adds reliability.
Key Features and Benefits
- CCT selectable between 3000K, 4000K, or 5000K
- Wattage selectable in 120/100/80W versions
- Universal Voltage: 120-277V
- Battery Backup Options available
- Photocell (On/Off) Standard
- CRI: ≥80
- Field installable c-Max receptacle for c-Max Controls capability
- 6kV Surge Protection
Specifications
- Nominal Wattage: 120/100/80W
- Output (lm) – Highest setting: 17,470-18,470
- Efficacy: 140-153 lm/W
- Input Voltage: 120-277V
- Lumen Maintenance (L70): >100,000 hrs
- Housing: Die cast aluminum with corrosion resistant polyester powder paint finish
- Lens: Impact resistant prismatic borosilicate glass
- Environment: Wet Locations and IP65
- Listings: UL, FCC, DLC 5.1 Premium
Common Uses
Ideal for outdoor wall-mounted area luminaires in commercial, industrial, and residential settings, particularly beneficial for non-cutoff and semi-cutoff applications.
