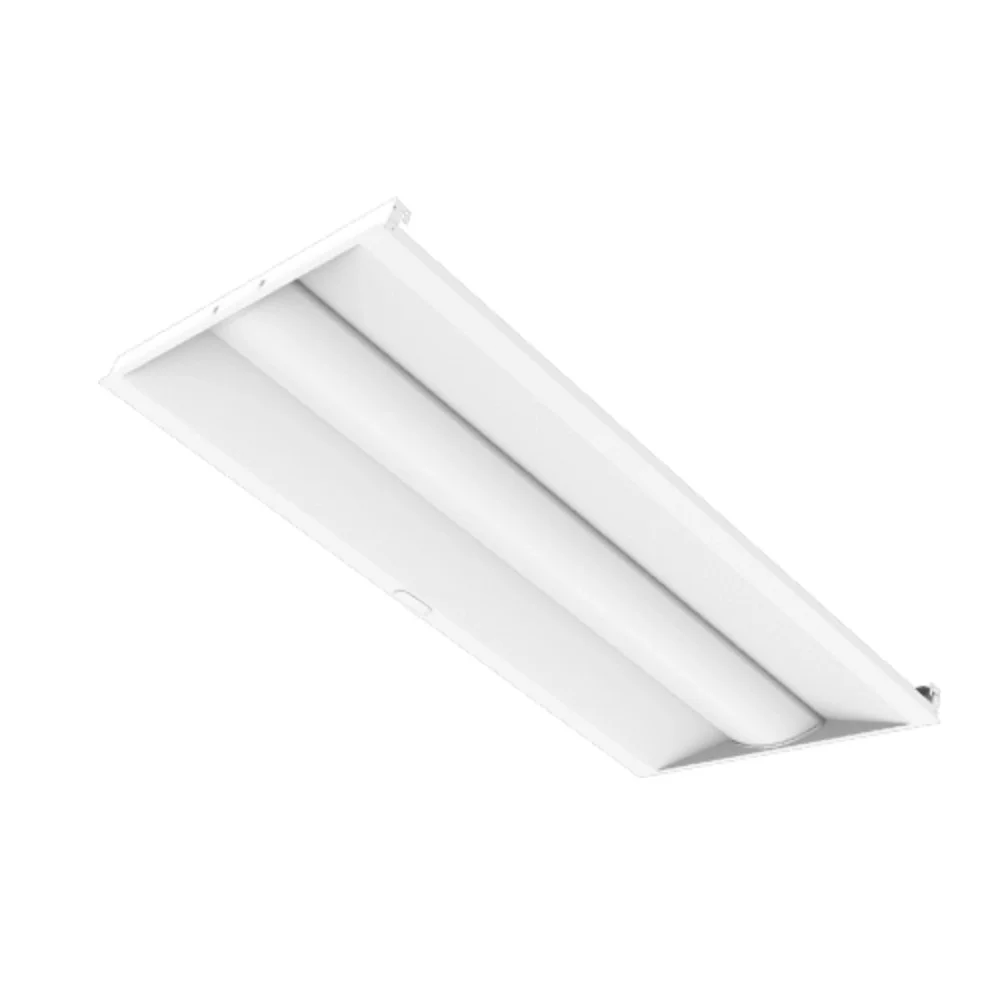

The ILP VST Volumetric Selectable Troffer is a low-profile architectural troffer designed for modern commercial interiors that need flexibility, efficiency, and visual comfort. As part of ILP’s controls-ready lineup, it combines selectable lumen packages and selectable CCT in one fixture to simplify stocking and field configuration.
Key Features and Benefits
- Field-selectable output supports multiple lumen settings up to 8000 lumens for adaptable light levels.
- Selectable CCT (2700K through 5000K) allows one fixture to match varied space requirements.
- Ultra-shallow 2.1″ housing helps fit low plenum ceilings while maintaining a clean volumetric appearance.
- 0-10V dimming (10%-100%) and controls-ready platform support advanced energy-saving strategies.
- ETL Listed for US and Canadian standards, Type IC rated, and damp-location suitable for broad code-compliant use.
- Backed by a 5-year standard warranty with optional 10-year coverage.
Specifications
- Lumen Output: 8000 lm
- Wattage: 55W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 80
- Power Factor: 0.90
- Rated Life (L70): 100000
- Efficacy: up to 180 lm/W
- Ambient Operating Range: -20°C to 40°C
- Mounting: Recessed T-grid (9/16″ and 15/16″), optional flange or surface mount kits
- Lens: High-transmission frosted polycarbonate
- Housing: Steel, matte white finish
Common Uses
Ideal for education facilities, healthcare buildings, commercial offices, retail environments, and storage facilities where efficient, tunable general illumination and controls integration are priorities.
