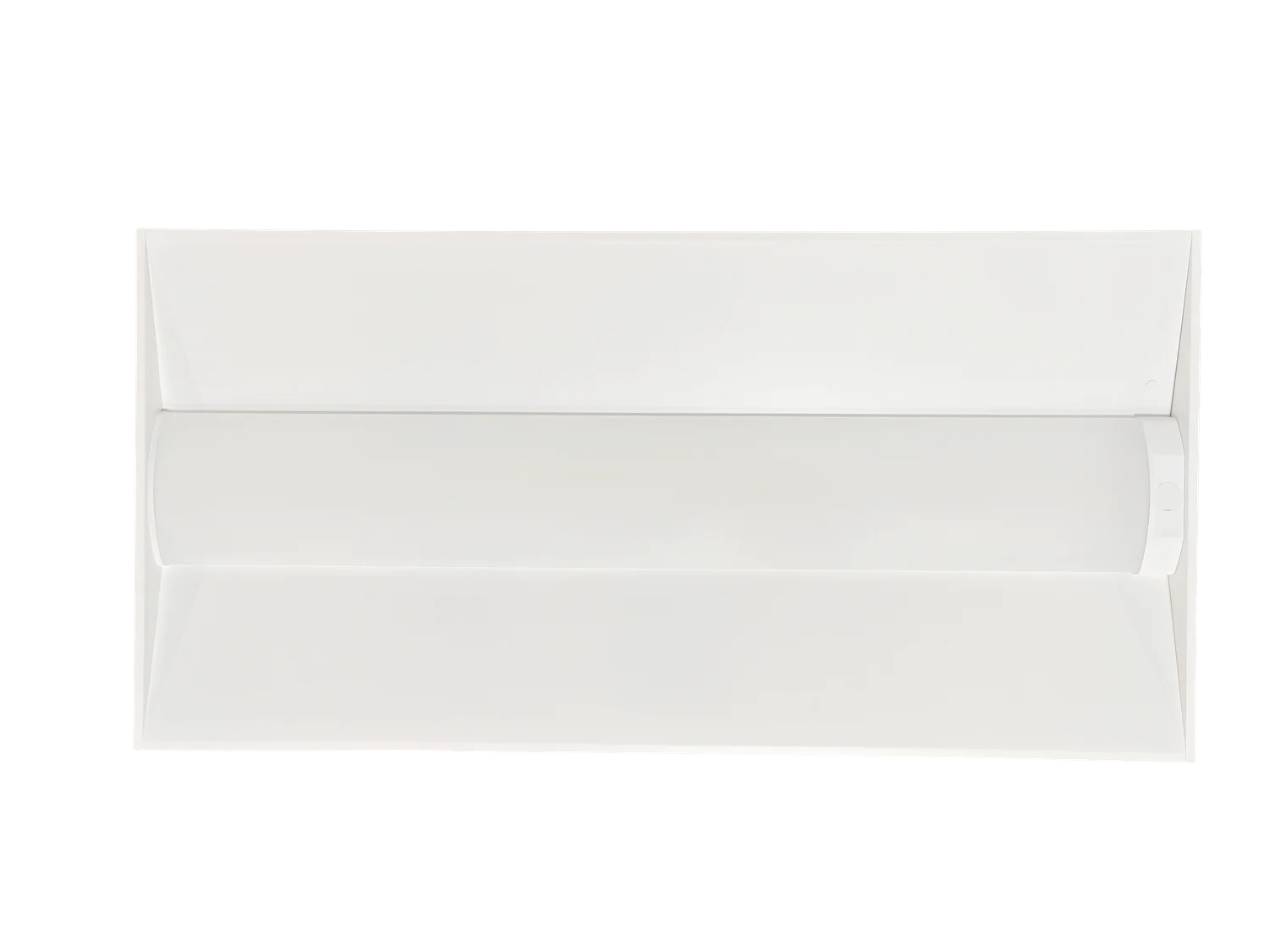

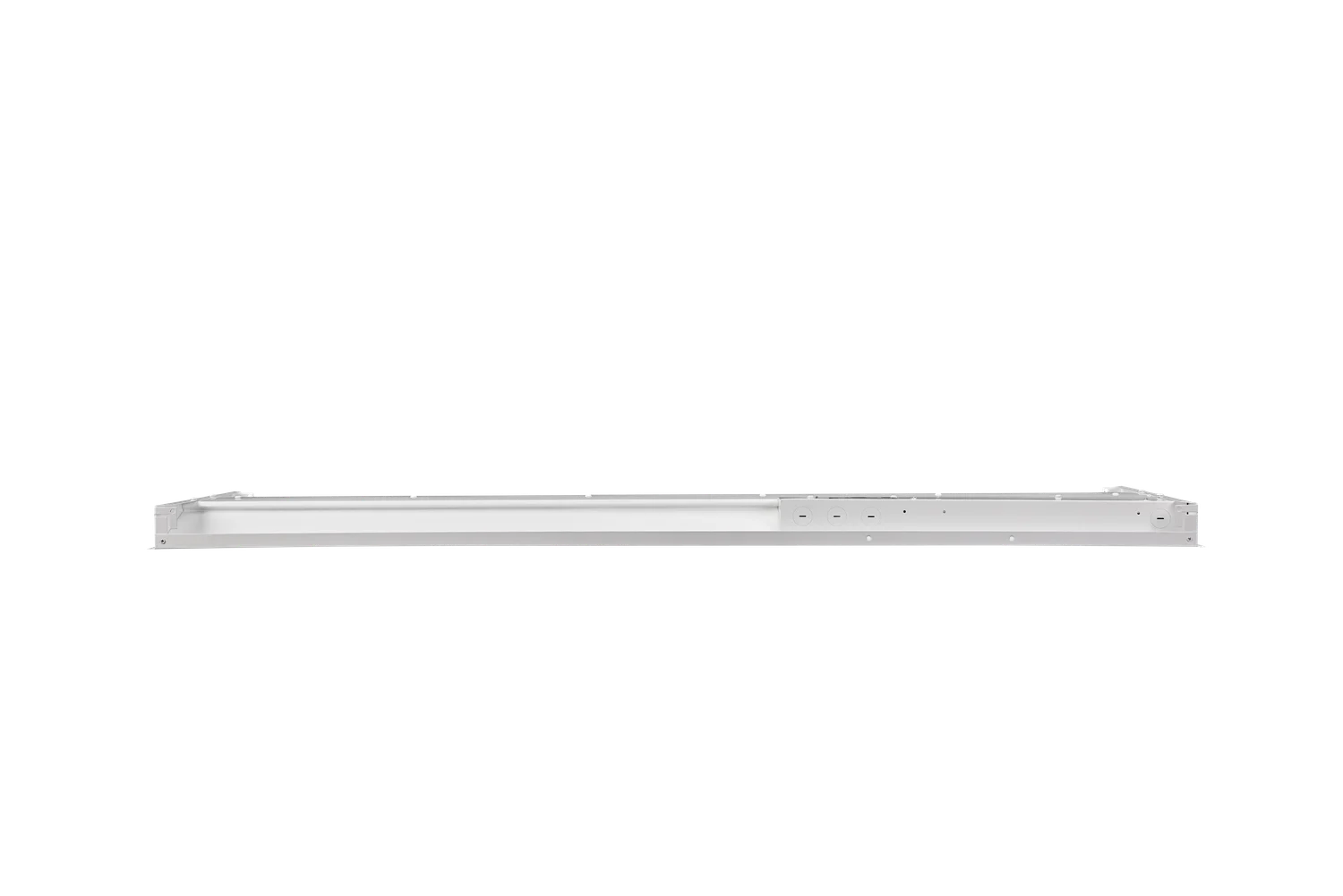

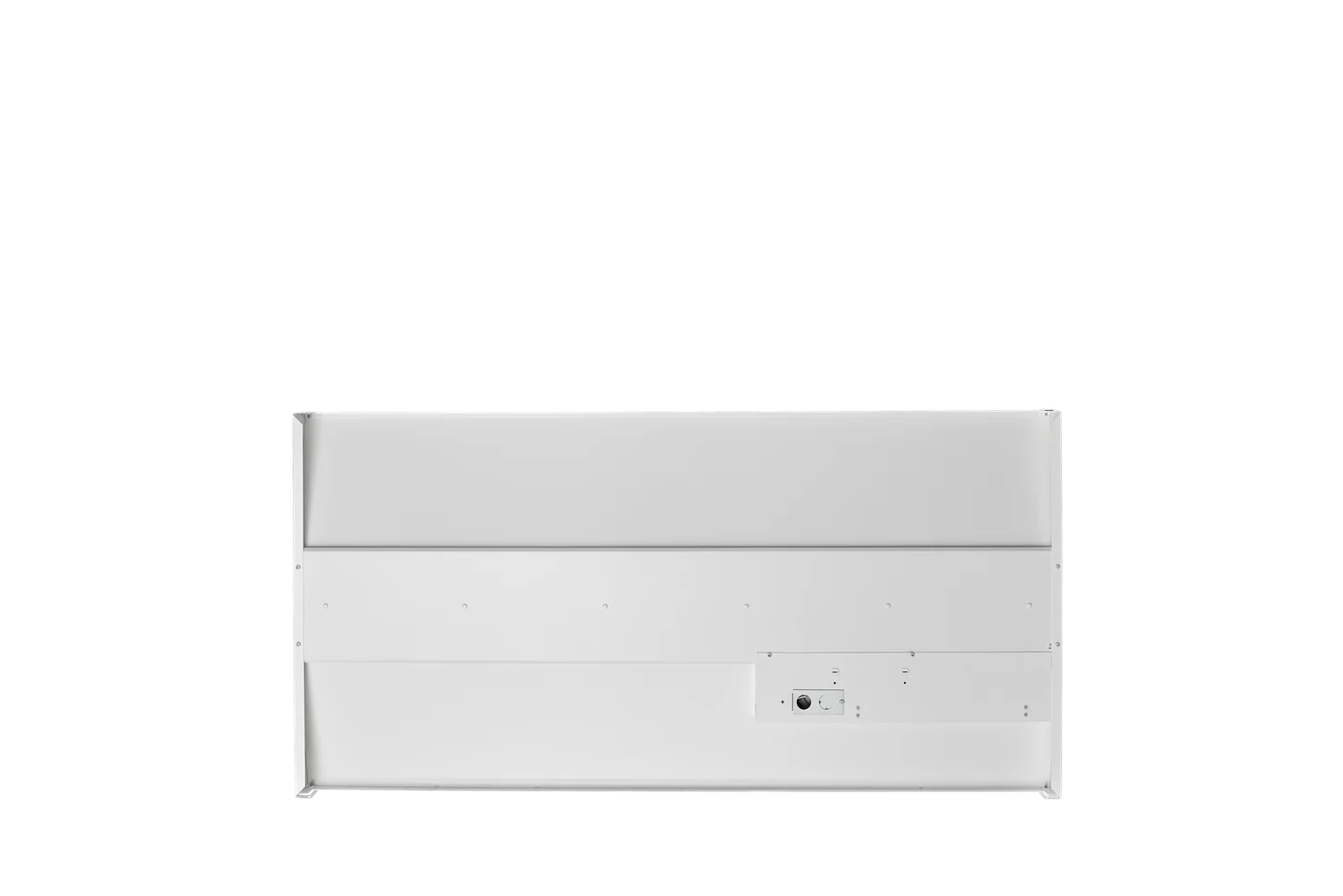

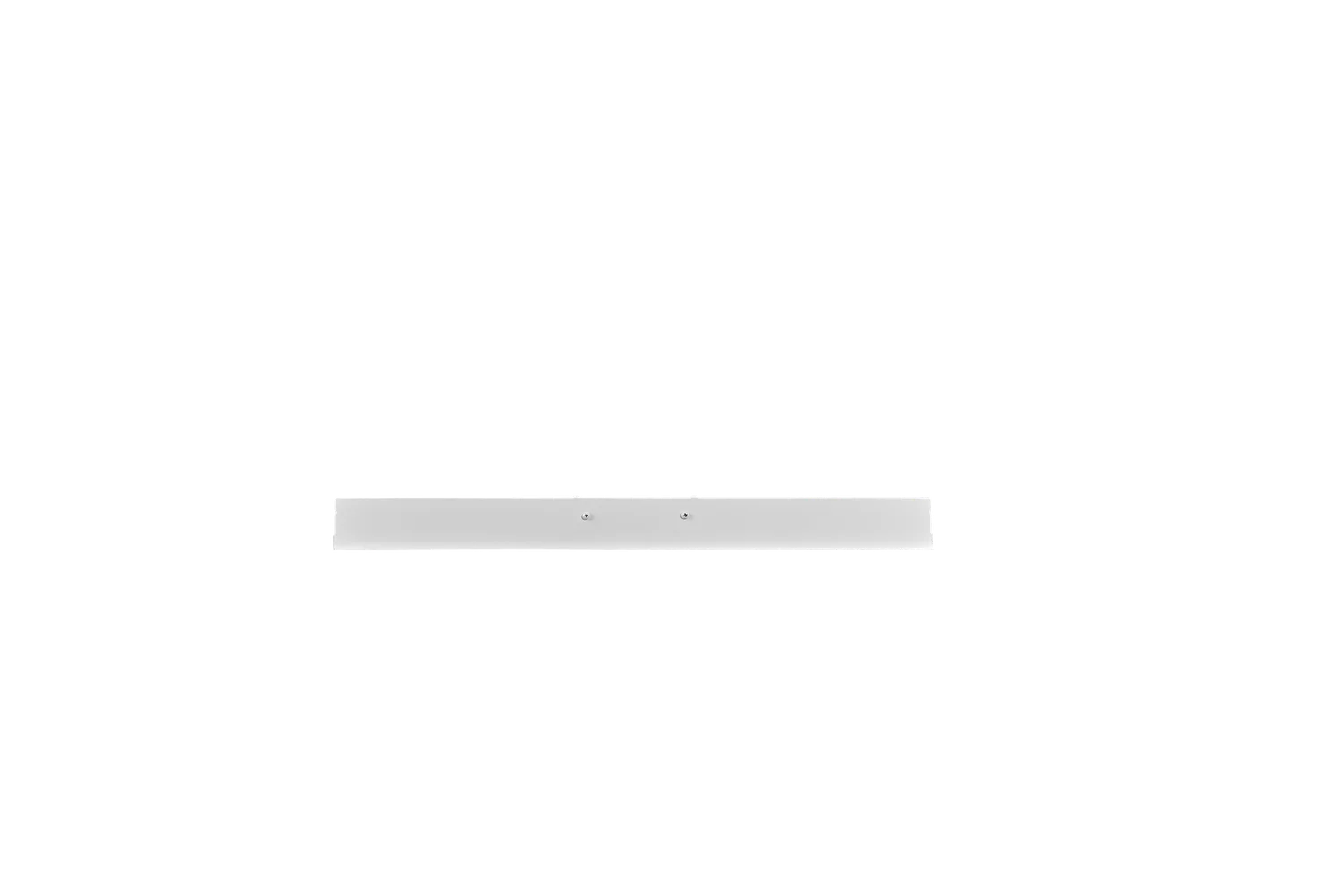

2×4 Volumetric Troffer with selectable color temperature (3500/4000/5000K) and adjustable lumen outputs (12600/10500/9100 lm).
Key Features and Benefits
- Architectural recessed luminaire featuring Controls Ready
- Flat modern lens featuring high-quality, non-yellowing PMMA acrylic lens ensures optimal light uniformity
- Multiple mounting options: recessed, suspended, surface mount
- PowerSet feature allows for multiple lumen stops out of the box
- FieldCCeT features provide multiple color temperature settings in one fixture
- High efficacy, up to 140 lm/W
- UL listed for US & Canada, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IC Rated for insulation contact, Damp Location rated, DesignLights Consortium® Qualified
Specifications
- CRI: >80
- Estimated L70: 100,000 Hours
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- 12VDC Aux, 100mA max
- Surge Protection: 2.5 kV
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- White powder-coated steel housing
- IK07 Rated non-yellowing PMMA light diffusing acrylic lens
- 5-Year limited warranty available online
Common Uses
Campus, Classroom, Hospital, Office, Retail, Schools
