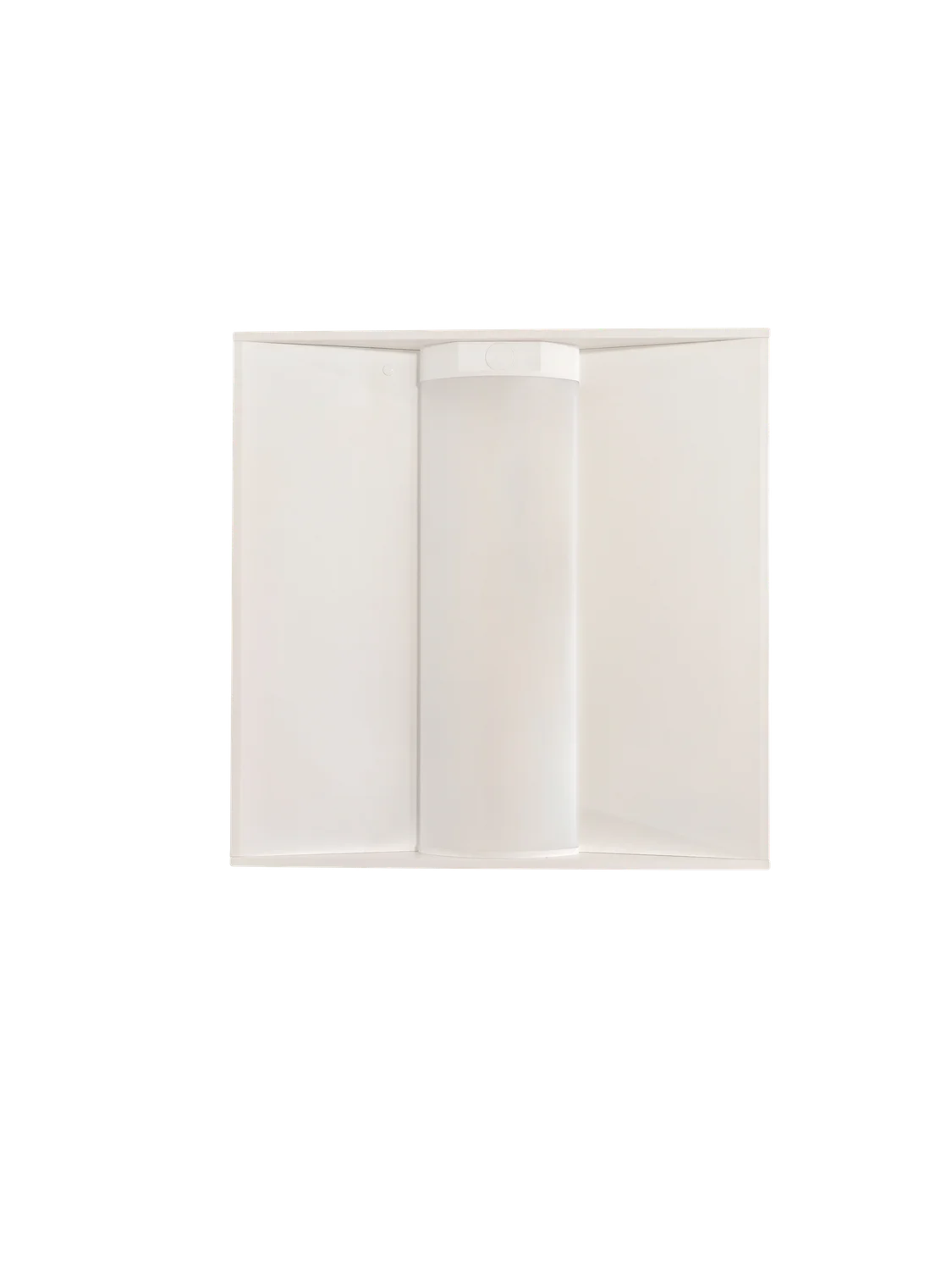

2×2 Volumetric Troffer with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (4900, 4200, 3080 lm).
Key Features and Benefits
- Architectural recessed luminaire featuring Controls Ready.
- Flat modern lens featuring high-quality, non-yellowing PMMA acrylic lens ensures optimal light uniformity.
- Multiple mounting options: recessed, suspended, surface mount.
- PowerSet feature allows for multiple lumen stops out of the box.
- FieldCCeT features provide multiple color temperature settings in one fixture.
- UL listed for US & Canada, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IC Rated for insulation contact, Damp Location rated, DesignLights Consortium® Qualified.
Specifications
- High efficacy, up to 140 lm/W.
- Available in PowerSet models: power-selectable 35/30/22W.
- Available in FieldCCeT models: field-selectable CCT 3500K/4000K/5000K.
- CRI: >80.
- Estimated L70: 100,000 Hours.
- Input voltage: 120-347V.
- 0-10V dimming, dim-to-off.
- 12VDC Aux, 100mA max.
- Surge Protection: 2.5 kV.
- Power Factor: >0.9.
- THD: <20%.
- Ambient operating temperature: -40°F to 122°F (-40°C to 50°C).
- White powder coated steel housing.
- IK07 Rated non-yellowing PMMA light diffusing acrylic lens.
- 5-Year limited warranty.
Common Uses
Campus, Classroom, Hospital, Office, Retail, Schools.
