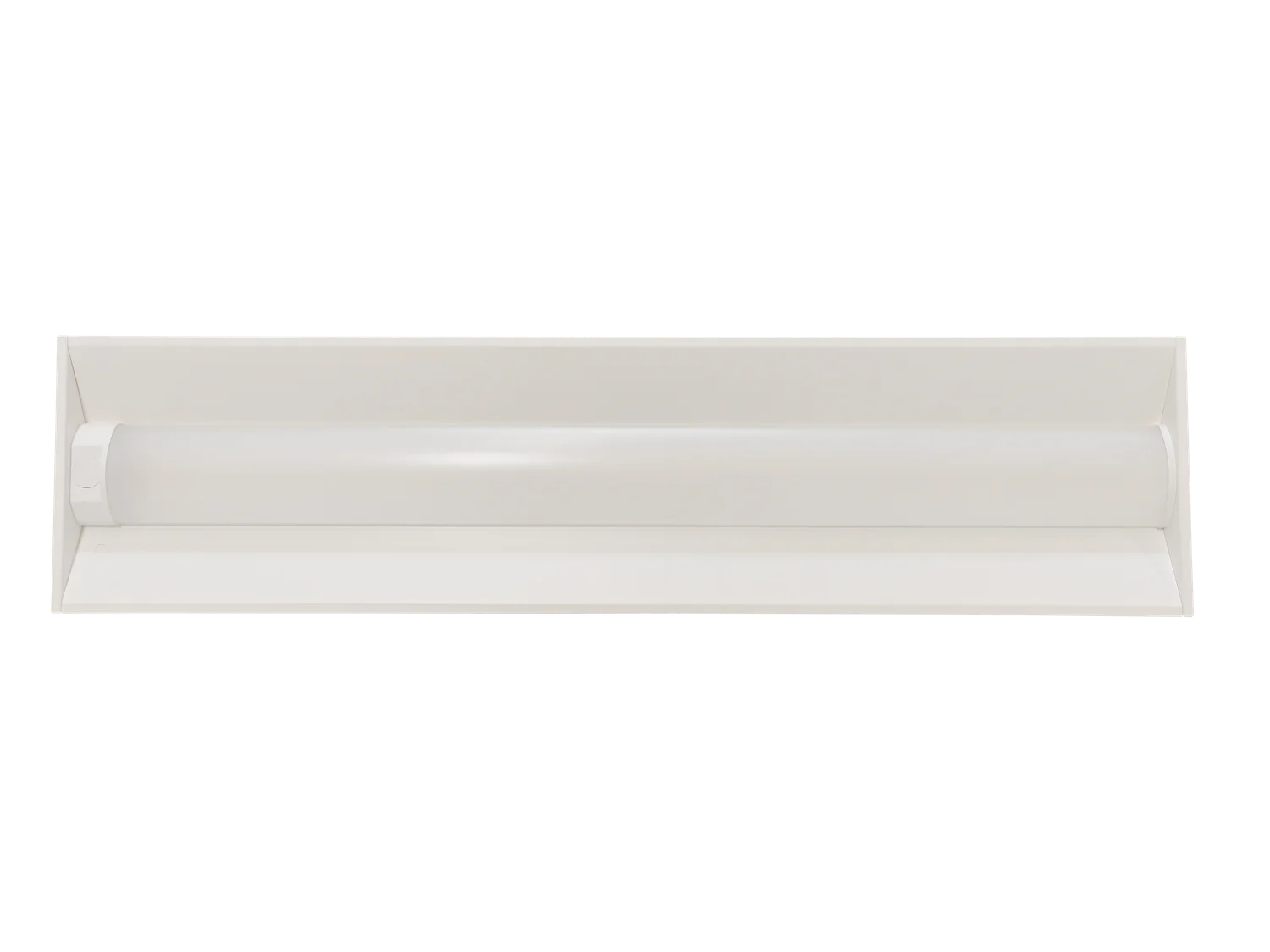

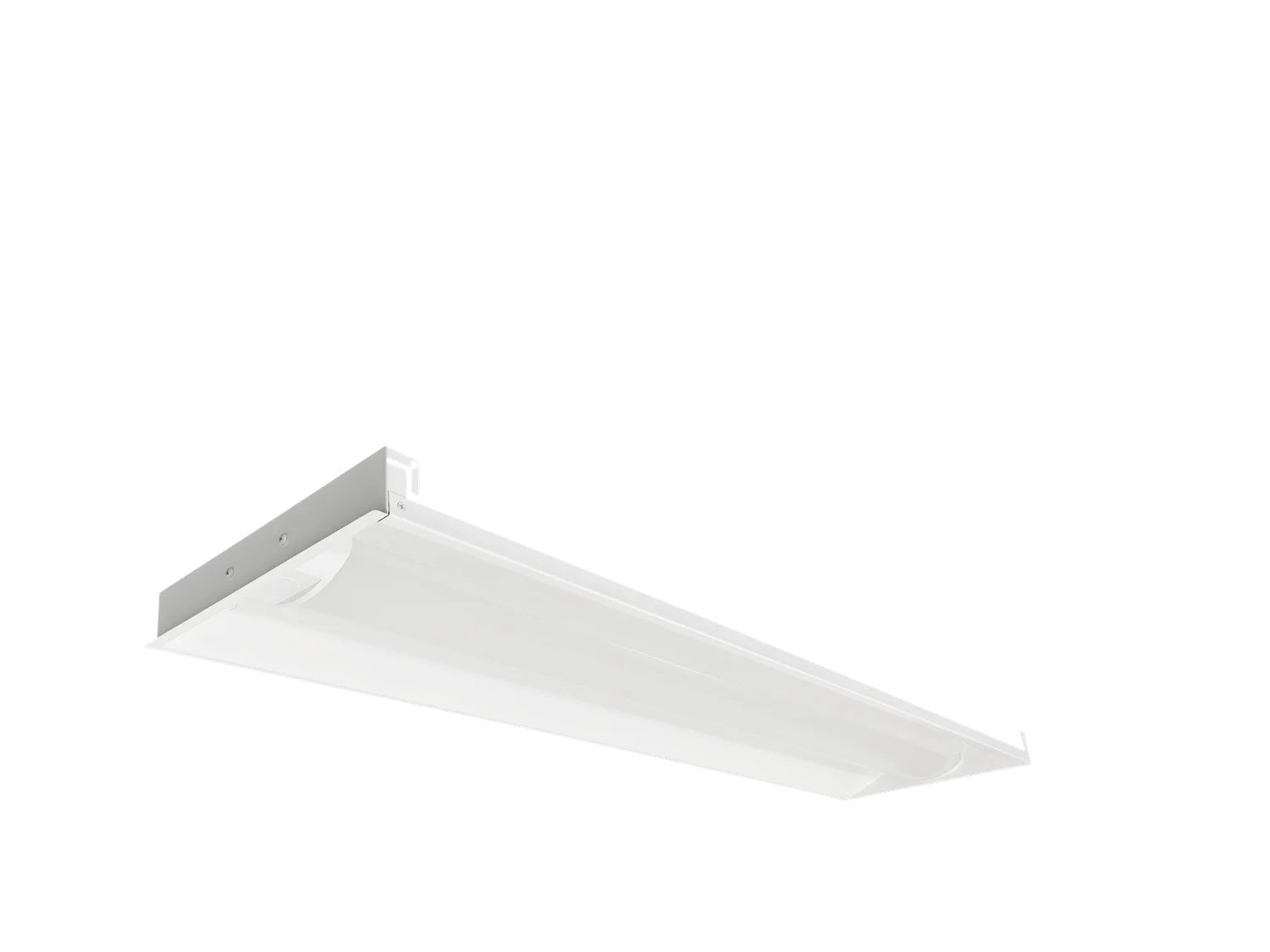

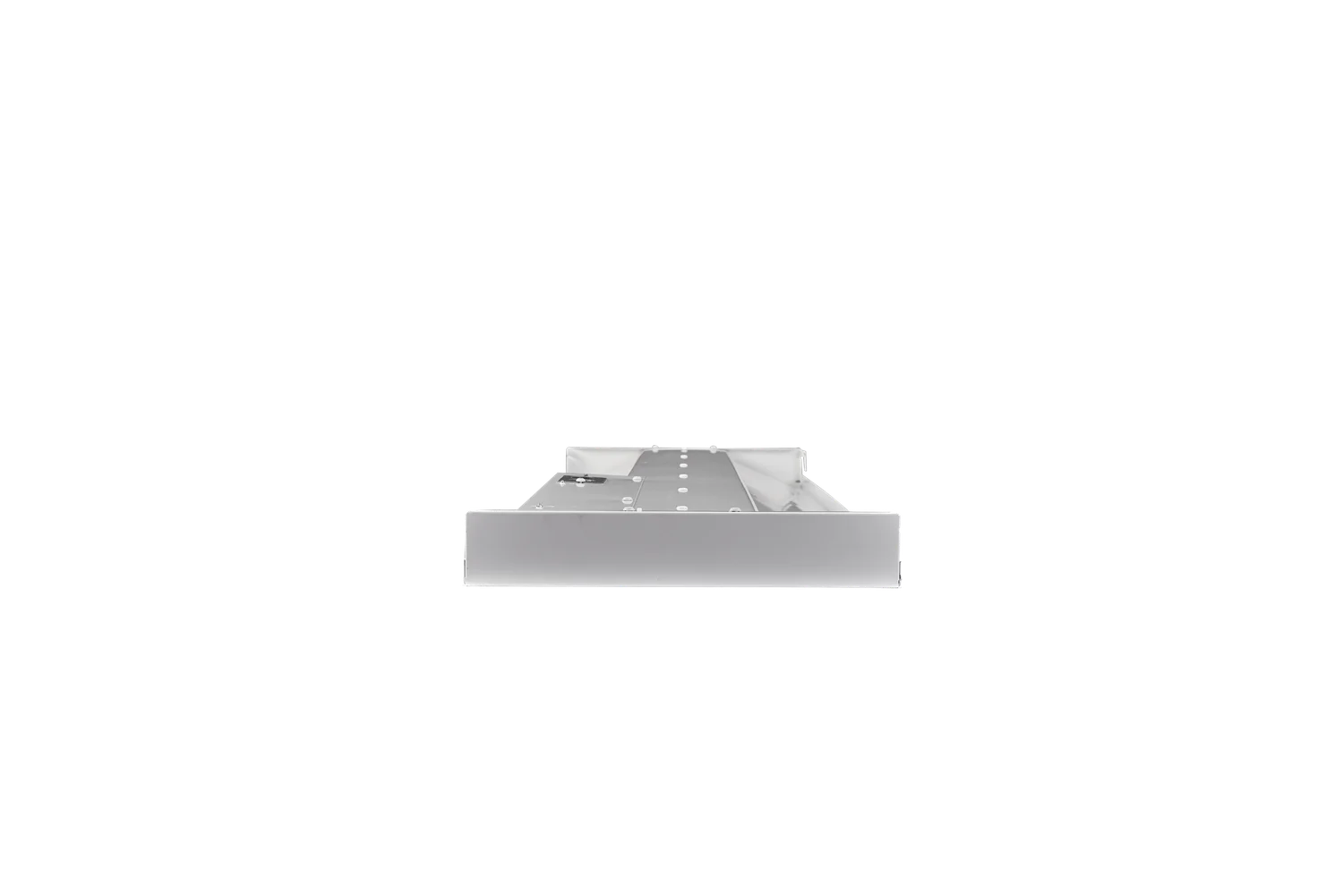

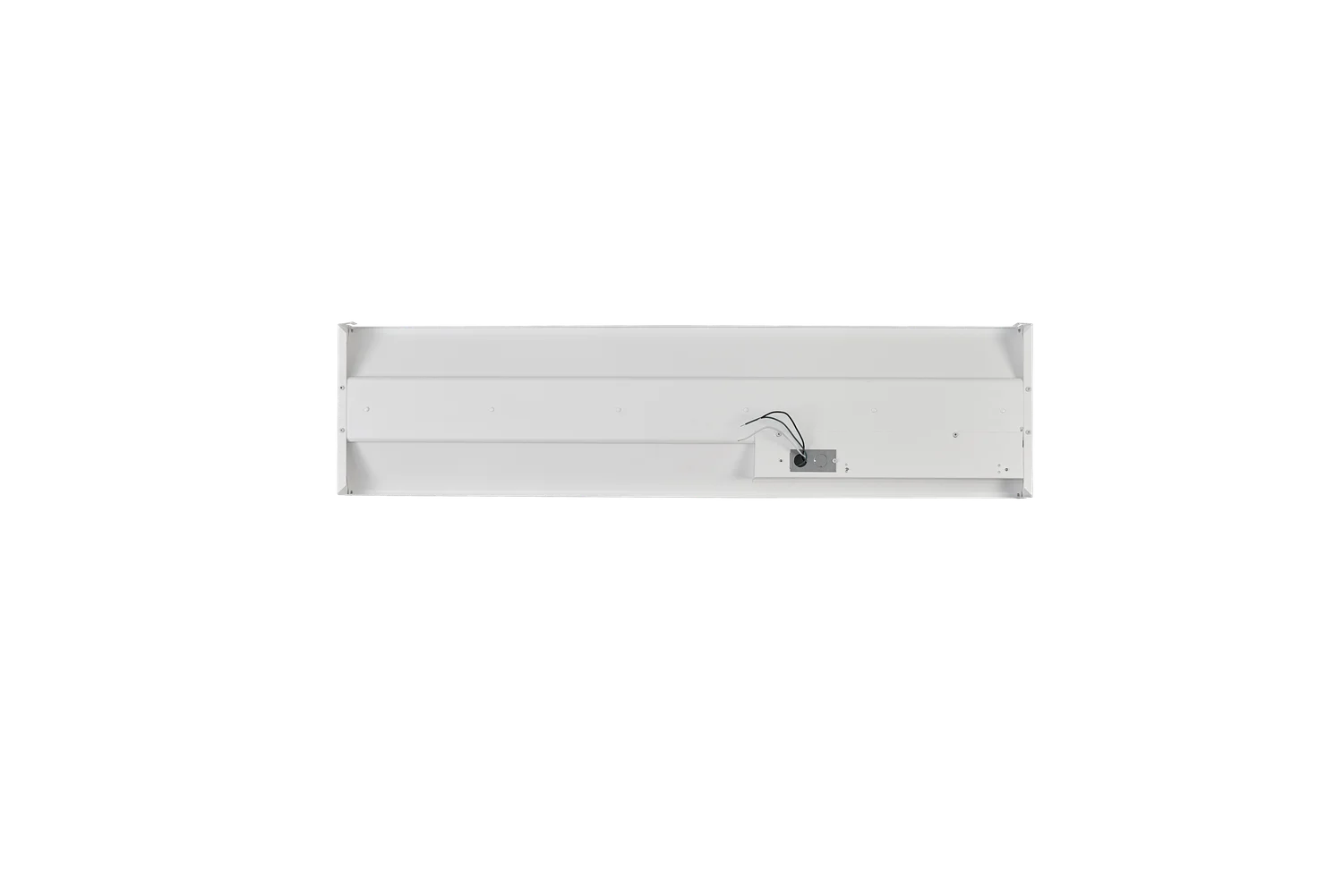

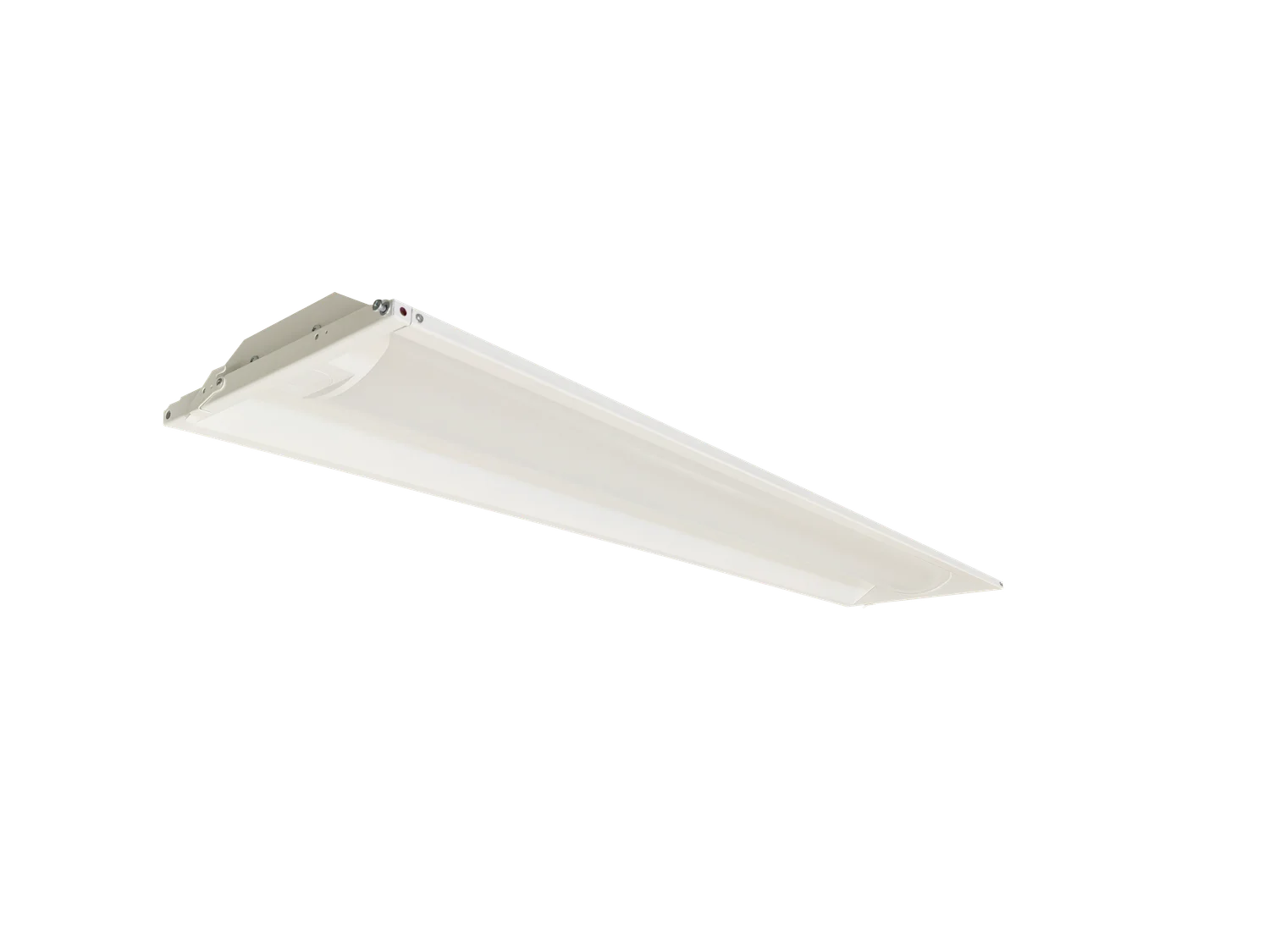

1×4 Volumetric Troffer with selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (4900/4200/3080 lm).
Key Features and Benefits
- Architectural recessed luminaire featuring Controls Ready
- Flat modern lens with high-quality, non-yellowing PMMA acrylic
- PowerSet feature for multiple lumen stops out of the box
- FieldCCeT feature providing multiple color temperature settings in one fixture
Specifications
- UL listed for US & Canada
- RoHS Compliant
- FCC Compliant
- ICES-005 Compliant
- IC Rated for insulation contact
- Damp Location rated
- DesignLights Consortium® Qualified
- High efficacy, up to 140 lm/W
- Power-selectable: 35/30/22W
- Field-selectable CCT: 3500K/4000K/5000K
- CRI: >80
- Estimated L70: 100,000 Hours
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- Surge Protection: 2.5 kV
- Power Factor: >0.9
- THD: <20%
- Operating temperature: -40°F to 122°F (-40°C to 50°C)
- White powder-coated steel housing
- IK07 Rated non-yellowing PMMA light diffusing acrylic lens
- 5-Year limited warranty
Common Uses
Campus, Classroom, Hospital, Office, Retail, Schools
