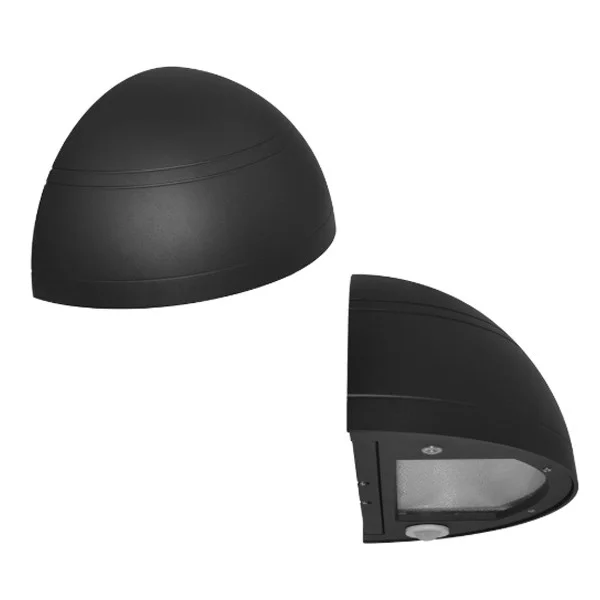

The ILP Unify Architectural Wall Mount UWQ delivers a modern quarter-round profile for dependable exterior wall illumination in commercial and industrial settings. As part of ILP’s Unify wall pack family, it combines selectable output and CCT flexibility to simplify specification and field setup. Its rugged construction and wet-location design make it a strong choice for long-term outdoor performance.
Key Features and Benefits
- Selectable lumen packages (3L/5L/8L) let you tune light levels for different mounting heights and site needs.
- Field-selectable 3000K, 4000K, or 5000K CCT supports visual comfort and application-specific color appearance.
- Die-cast aluminum housing with tempered glass lens provides durable, impact-resistant performance outdoors.
- Quick-mount wall plate with integrated level helps speed installation and reduce labor time.
- 0-10V dimming compatibility enables energy-saving control integration.
- Certified for demanding projects with UL Listed wet-location rating, LM-79/LM-80 testing, RoHS, FCC compliance, and Title 24 compliance.
- Backed by a 5-year limited warranty for added project confidence.
Specifications
- Lumen Output: 8358 max (4000K, 8L setting)
- Wattage: 24.8W|44.6W|64.4W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 70
- Efficacy: up to 135 lm/W
- Dimming: 0-10V to 10%
- Frequency: 50/60 Hz
- Rated Life (L70): 60000 hours
- Operating Temperature: -40°F to 104°F (-40°C to 40°C)
- Ingress Protection: IP65
- Surge Protection: 4kV standard
- Finish: Bronze
Common Uses
Ideal for exterior wall lighting at building entrances, pedestrian walkways, parking areas, retail centers, multifamily properties, schools, offices, and industrial facilities where durable, efficient, and configurable illumination is required.
